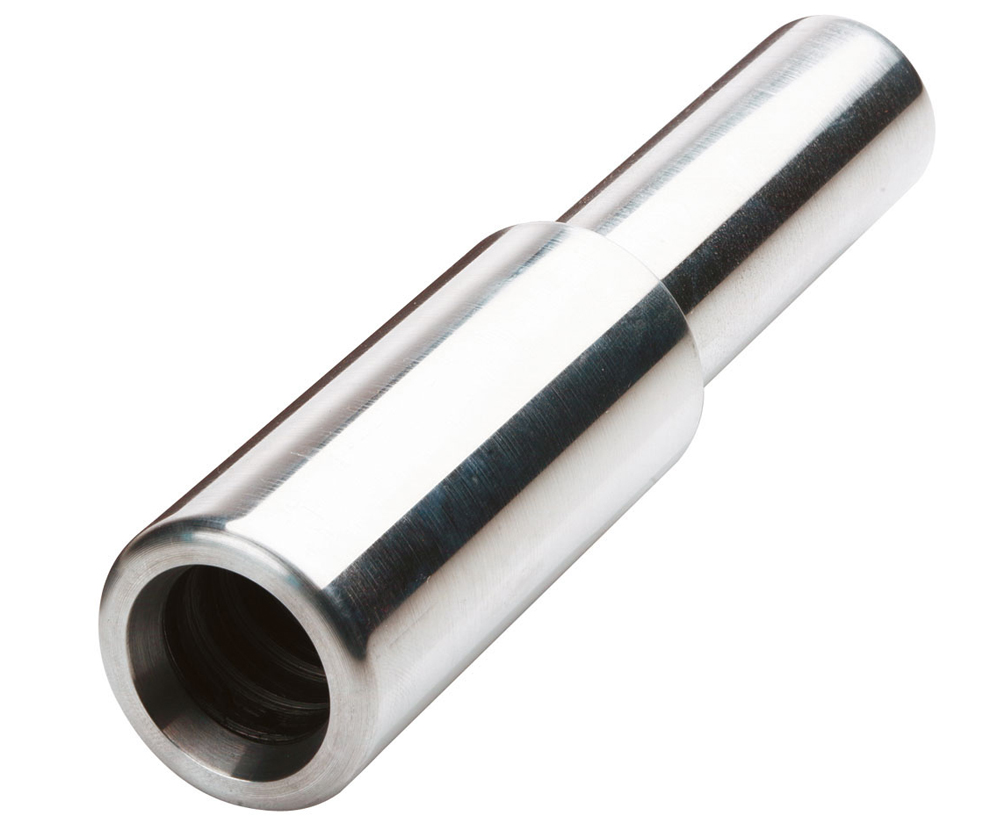

CABAC AL RED. LINK 35MM2 TO 16MM2 ALKR35/16 x 1/EACH

Description

Built for Solid Performance on Aluminium Terminations

The CABAC Aluminium Reducing Link 35mm² to 16mm² is designed for clean, reliable connections when stepping down aluminium conductor sizes on-site. Suitable for stranded sector and circular stranded aluminium conductors, it delivers consistent electrical performance while maintaining conductor integrity during crimping. The fully annealed, high-purity aluminium construction supports dependable conductivity and helps minimise resistance at the joint—ideal for installations where performance and longevity matter.

Proven Reliability with Full Standards Compliance

This aluminium reducing link is a barrier-type design, providing an impermeable seal against oils and water once crimped—making it suitable for demanding residential, commercial, and industrial environments. Manufactured to meet major international and Australian standards including AS/NZS 4325 Part 1, it gives contractors confidence that installations are compliant and site-ready. Designed to be crimped with standard Australian tooling and hex dies, it integrates easily into existing workflows without the need for specialised equipment.

Trade-Friendly Design That Saves Time on the Job

Engineered for straightforward installation, the CABAC AL Reducing Link supports efficient crimping with one crimp per end, helping reduce install time and downtime on busy projects. Its compatibility with standard tooling means no delays sourcing special dies, while consistent dimensions ensure predictable results across repeat jobs. Backed by a trade-focused wholesaler with strong stock availability, it’s an easy add-on to keep projects moving and crews productive.

Key Specs

• Nominal Conductor Size: 35mm² to 16mm²

• Conductor Type: Stranded sector and circular stranded aluminium

• Conductive Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Metal State: Fully annealed

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Electrical Conductivity: 61.8% IACS (min)

• Operating Temperature: -20°C to +140°C

• No. of Crimps: 1 per end

• Crimp Type: Standard hex die

• Standards: AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians working with aluminium conductors

• Electrical contractors stepping down cable sizes in switchboards

• Commercial and industrial power installations

• Maintenance and upgrade works requiring compliant aluminium joints

• Projects needing oil- and water-resistant connections
