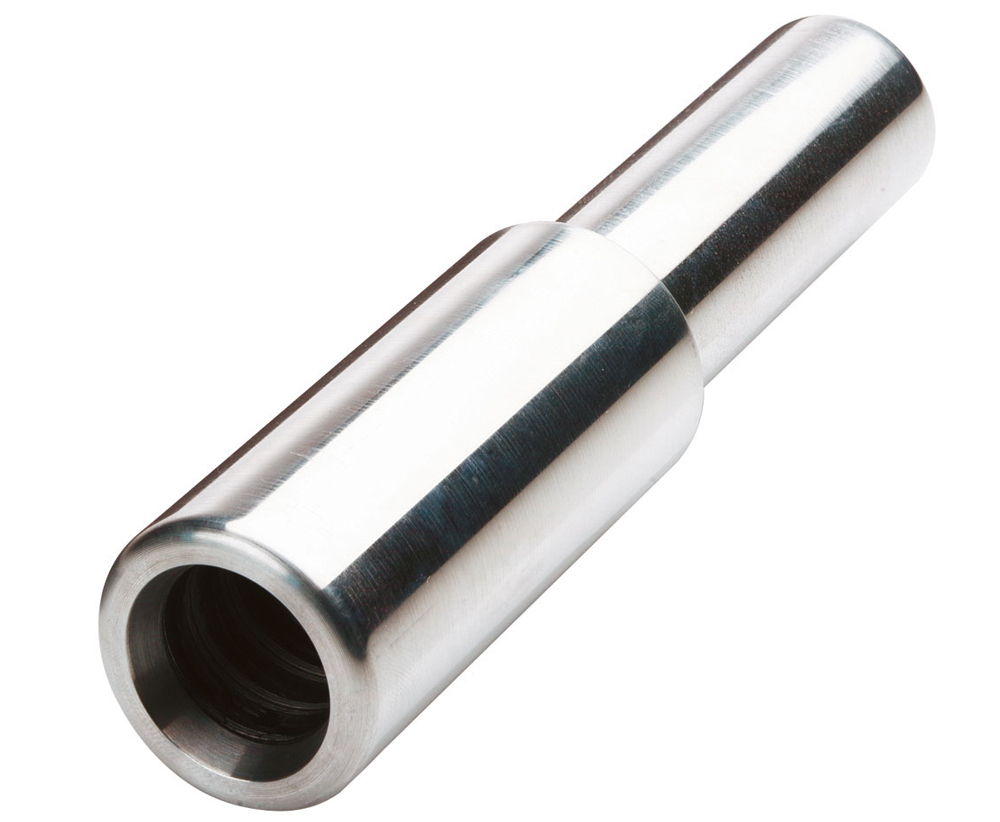

CABAC AL RED. LINK 25MM2 TO 10MM2 ALKR25/10 x 1/EACH

Description

Built for Consistent Performance on Site

This CABAC aluminium reducing link is designed to deliver a solid, low-resistance connection when transitioning from 25mm² to 10mm² aluminium conductors, helping you maintain performance without compromise. Manufactured from 99.6% pure, fully annealed aluminium, it provides excellent conductivity and ductility, making crimping predictable and reliable with standard Australian tooling. For electricians keeping an eye on total install costs—including comparisons like 10mm aluminium wire price—this link helps protect the integrity of the circuit and avoid rework caused by poor terminations.

Proven Reliability & Standards Compliance

Engineered as a barrier-type reducing link, this product offers an impermeable seal against oils and water, making it suitable for demanding residential, commercial, and industrial environments. It complies with major international and Australian standards including AS/NZS 4325 Part 1, giving you confidence during inspections and handovers. Designed for use with standard hex dies, it ensures a secure crimp when installed correctly, supporting long-term mechanical and electrical reliability on every job.

Trade Convenience That Saves Time

Supplied as a single trade-ready unit, this reducing link suits electricians who value speed, accuracy, and dependable stock availability. Whether you’re working through a board upgrade, equipment replacement, or site rectification, having the right reducing link on hand avoids downtime and last-minute supplier runs. Backed by a trade-focused wholesaler with fast ordering and local pick-up options, it’s an easy add-on to keep projects moving and margins intact.

Key Specs

• Nominal Conductor: 25mm² to 10mm²

• Stranding Metric: 19/1.35 – 7/1.35

• Conductive Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Electrical Conductivity: 61.8% IACS (min)

• Resistivity: 2.6 micro-ohm cm (max)

• Operating Temperature: -20°C to +140°C

• Standards: AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Reducing aluminium conductor sizes in switchboards and equipment

• Residential, commercial, and industrial electrical installations

• Maintenance and upgrade work requiring compliant aluminium terminations
