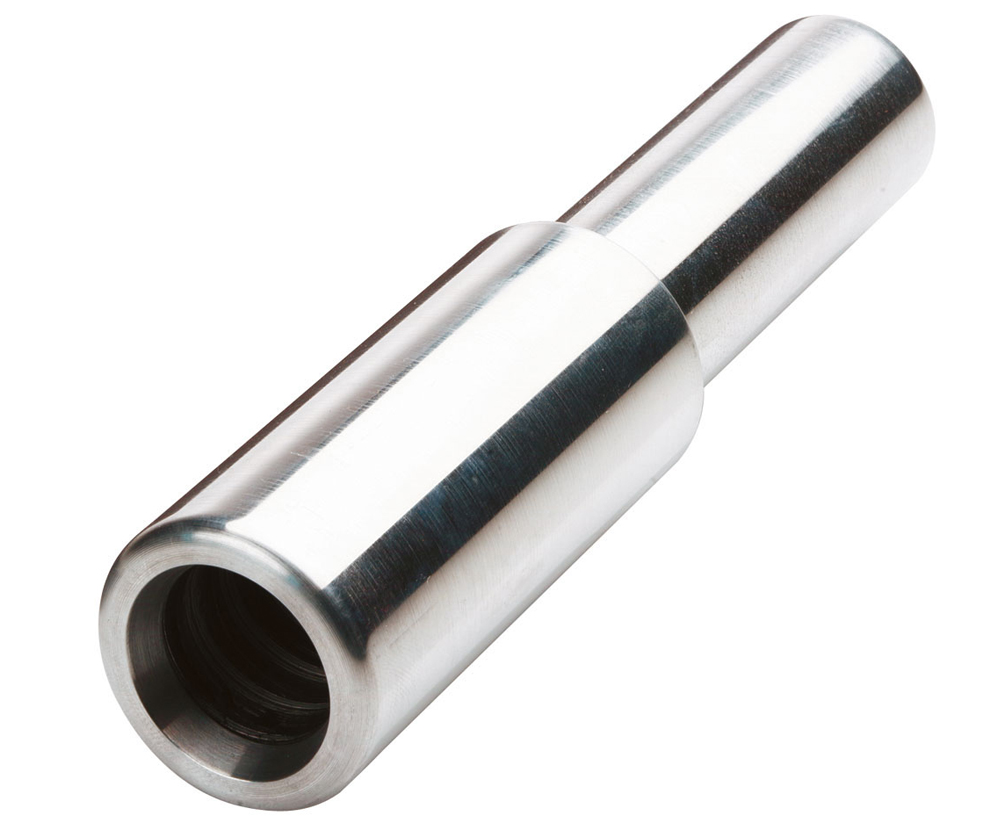

CABAC AL RED. LINK 16MM2 TO 6MM2 ALKR16/6 x 1/EACH

Description

Built for Clean, Efficient Aluminium Terminations

This Aluminium Reducing Link 16mm² to 6mm² is designed to make downsizing aluminium conductors quick, secure, and consistent on site. Suitable for stranded sector and circular stranded aluminium conductors, it delivers a solid electrical connection while keeping installation straightforward. The fully annealed, high-purity aluminium construction supports reliable crimping and helps maintain stable conductivity across residential, commercial, and industrial applications—saving time when you’re working through multiple terminations on tight schedules.

Compliant, Barrier-Type Design You Can Trust

Engineered as a barrier-type aluminium reducing link, this connector provides an impermeable barrier against oils and moisture, making it suitable for demanding environments where long-term reliability matters. Manufactured to meet AS/NZS 4325 Part 1 and recognised international standards including IEC, DIN/VDE, JIS, BS, and UL/NEMA, it supports compliant installations across Australian worksites. Designed for use with standard Australian crimping tools and hex dies, it delivers consistent results when installed correctly—without risking shear at the centre barrier.

Trade-Ready Convenience, Backed by Wholesale Supply

For licensed electricians and contractors, this reducing link keeps procurement simple and efficient. It’s a stock, trade-grade solution that integrates easily into everyday install workflows, whether you’re handling switchboards, upgrades, or maintenance works. With access to competitive wholesale pricing and fast delivery or same-day pickup options, it helps minimise downtime and keeps your projects moving—without chasing multiple suppliers for specialised components.

Key Specs

• Nominal Conductor: 16mm² to 6mm²

• Stranding Metric: 7/1.70 – 7/1.04

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Operating Temperature: -20°C to +140°C

• Standards: AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

• Crimp Die (Aluminium): HT-6/35AL

Ideal For

• Licensed electricians terminating mixed-size aluminium conductors

• Switchboard and distribution board installations

• Commercial and industrial electrical works

• Maintenance and upgrade projects requiring compliant aluminium connections

• Sites exposed to oils or moisture where barrier-type links are required
