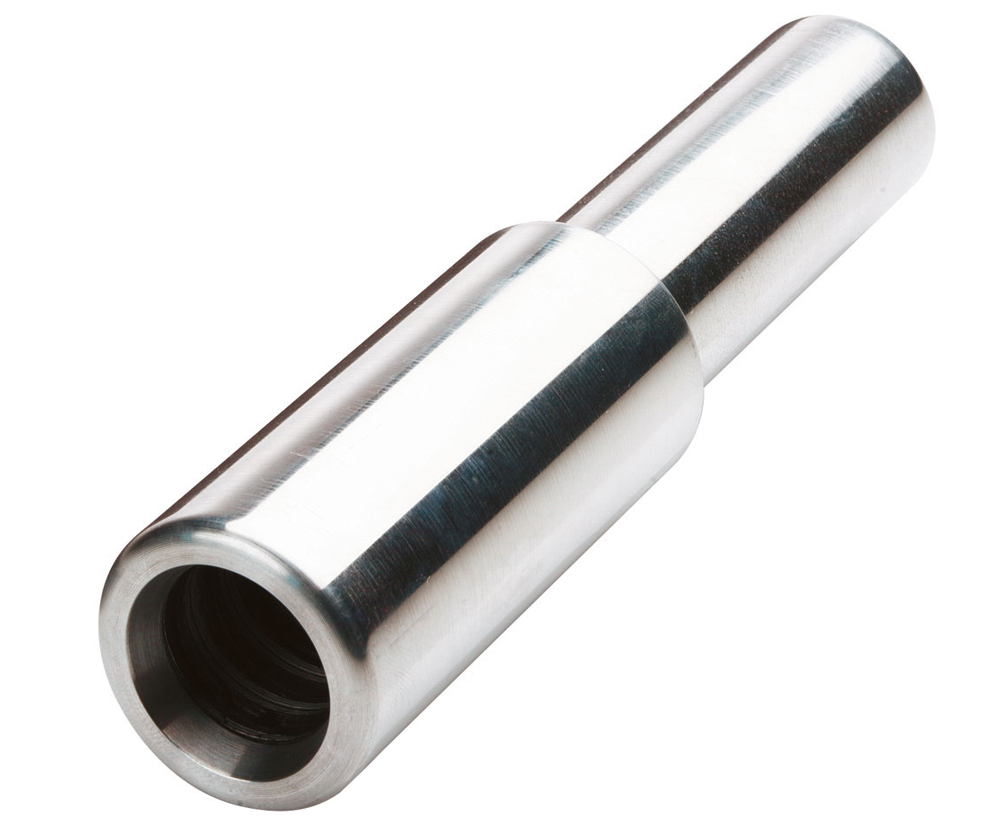

CABAC AL RED. LINK 16MM2 TO 10MM2 ALKR16/10 x 1/EACH

Description

High-Performance Aluminium Reducing Link for Clean, Secure Transitions

This CABAC aluminium reducing link is designed for smooth, low-resistance transitions between 16 mm² and 10 mm² aluminium conductors, making it ideal for distribution, termination, and connection upgrades on site. Manufactured from 99.6% pure aluminium and fully annealed for ductility, it delivers reliable conductivity and strong mechanical performance when crimped correctly. The barrier-type design provides an impermeable seal against oils and moisture, helping maintain connection integrity in demanding environments and reducing the risk of failures, callbacks, or downtime.

Compliant, Trade-Grade Construction You Can Trust

Built to meet international and Australian standards including AS/NZS4325 Part 1 and key IEC, DIN/VDE, JIS, BS, and UL/NEMA benchmarks, this reducing link supports compliant installations across residential, commercial, and industrial applications. Designed for use with standard Australian tooling and hex dies, it integrates easily into existing workflows without specialised equipment. Consistent material quality, controlled resistivity, and a wide operating temperature range make it suitable for varied site conditions, from switchboards and panels to outdoor installations.

Trade Convenience with Wholesale Availability and Fast Supply

Sourced from trusted manufacturers and stocked within a trade-focused electrical range, this reducing link supports fast procurement and consistent supply for multi-job workflows. Competitive wholesale pricing helps keep project margins under control, while online ordering and national delivery simplify procurement for contractors managing multiple sites. For Sydney-based trades, local warehouse pick-up options reduce lead times and keep projects moving without delays caused by missing components.

Key Specs

• Nominal conductor size: 16 mm² to 10 mm²

• Stranding metric: 7/1.70 – 7/1.35

• Aluminium purity: 99.6%

• Tensile strength: 110 MPa

• Ductile strength: 28%

• Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Operating temperature: -20 °C to +140 °C

• A/F hex: 9.0 mm

• Number of crimps: 1 per end

• Dimensions (mm): A 80, B 32, D 5.50

• Crimp die aluminium: HT-6/35AL

• Standards: AS/NZS4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Distribution board and switchboard connections

• Aluminium conductor transitions on residential, commercial, and industrial jobs

• Maintenance and upgrade projects requiring compliant aluminium joints

• Procurement teams sourcing trade-grade connectors at wholesale pricing
