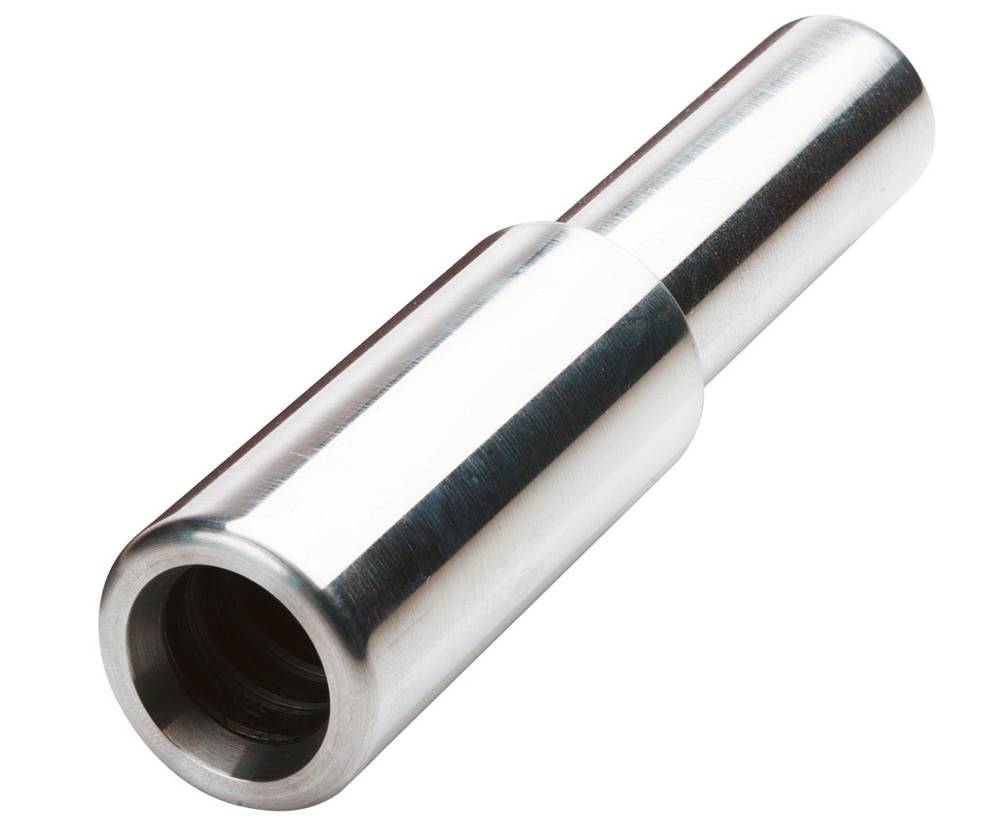

CABAC AL RED. LINK 120MM2 TO 50MM2 ALKR120/50 x 1/EACH

Description

Built for Solid Performance on Site

Designed for joining dissimilar aluminium conductor sizes with confidence, this aluminium reducing link delivers a secure, low-resistance connection on every crimp. Suitable for stranded sector and circular stranded aluminium conductors, it’s fully annealed for excellent ductility, making installation smoother and reducing the risk of cracking during crimping. The barrier-type construction provides an impermeable seal, helping protect the joint from moisture and oil ingress and keeping your connections stable over the life of the installation.

Compliance You Can Rely On

When compliance matters, this reducing link ticks the right boxes. Manufactured from 99.6% pure aluminium and engineered to meet a wide range of international standards, it’s suitable for use across residential, commercial, and industrial environments where quality and safety are non-negotiable. With a wide operating temperature range and proven electrical performance, it helps ensure your work meets spec, passes inspection, and performs reliably long after handover.

Trade-Friendly Installation & Availability

Built to be crimped using standard Australian tooling and hex dies, this reducing link fits straight into existing workflows—no special equipment, no delays. Clear crimp guidance on each end supports faster, more accurate terminations on site. Backed by dependable trade supply and fast access through wholesale channels, it’s an easy add-to-cart solution that helps keep crews moving and projects on schedule.

Key Specs

• Nominal Conductor: 120mm² / 50mm²

• Stranding Metric: 37/2.03 – 19/1.78

• Conductive Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Operating Temperature: -20°C to +140°C

• Large End A/F Hex: 17.3mm | Crimps: 2 | Die: HT-95/120AL

• Small End A/F Hex: 13.2mm | Crimps: 1 | Die: HT-50/70AL

• Dimensions (mm): A 115 | B 60 | D 15.50

Ideal For

• Reducing aluminium conductor sizes in switchboards and distribution systems

• Commercial and industrial electrical installations

• Maintenance and upgrade works requiring compliant aluminium joints

• Licensed electricians and electrical contractors working to Australian standards
