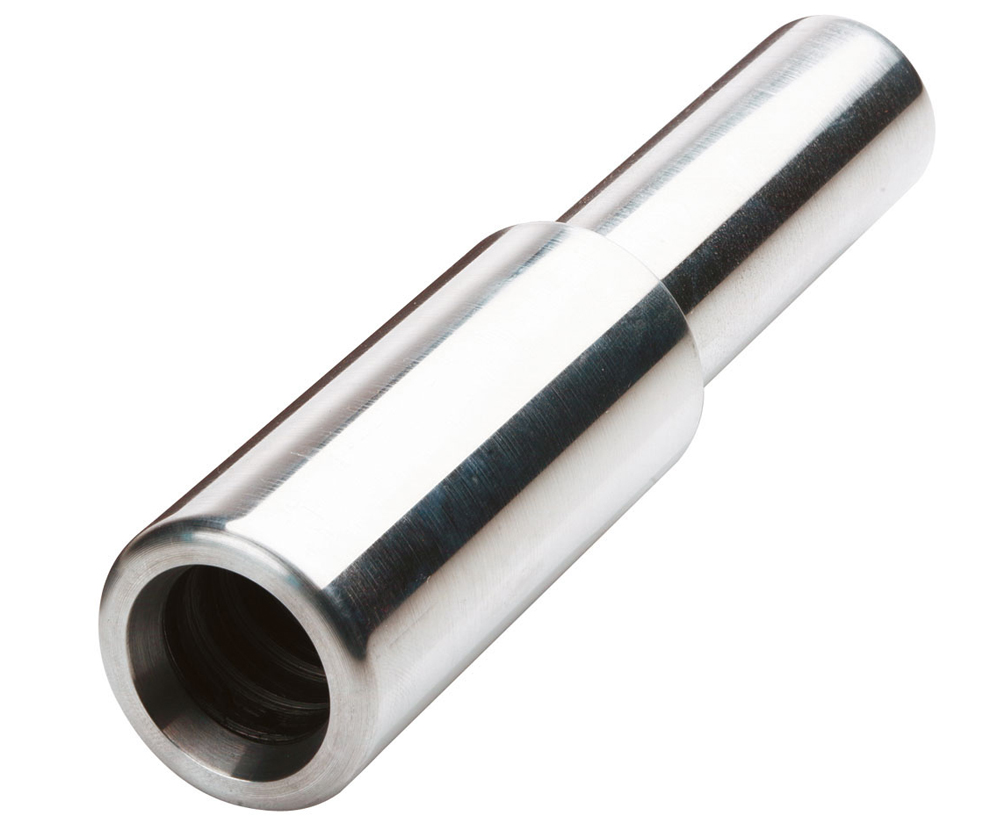

CABAC AL RED. LINK 120MM2 TO 35MM2 ALKR120/35 x 1/EACH

Description

Built for Strong, Consistent Connections on Site

This aluminium reducing link is designed to securely connect mismatched aluminium conductors, allowing you to step down from 120mm² to 35mm² with confidence. Suitable for stranded sector and circular stranded aluminium conductors, it delivers a reliable electrical connection while maintaining excellent conductivity. The fully annealed 99.6% pure aluminium construction supports clean crimps using standard Australian hex tooling, helping you achieve consistent results first time and keep installations moving without rework.

Proven Reliability with Full Standards Compliance

Designed for demanding environments, this barrier-type aluminium reducing link provides an impermeable seal against moisture and oils, making it suitable for a wide range of indoor and outdoor installations. It complies with major international and Australian standards including AS/NZS4325 Part 1, giving peace of mind on inspections and handover. With a wide operating temperature range from -20°C to +140°C, it’s a dependable choice for commercial and industrial applications where durability and compliance are non-negotiable.

Trade-Ready Convenience That Saves Time

Engineered to be crimped using standard Australian tooling and hex dies, this reducing link fits seamlessly into existing workflows—no special tools, no delays. Clear large-end and small-end crimp requirements help reduce installation errors, while the robust barrier design minimises call-backs caused by environmental ingress. It’s a practical, trade-grade solution that helps electricians stay productive, meet deadlines, and keep jobs running smoothly.

Key Specs

• Nominal Conductor Size: 120mm² / 35mm²

• Stranding Metric: 37/2.03 – 37/1.53

• Conductive Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Operating Temperature: -20°C to +140°C

• Compliance: AS/NZS4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Commercial and industrial installations

• Reducing aluminium conductor sizes in switchboards and distribution systems

• Environments requiring oil and moisture barriers

• Projects requiring compliant, trade-approved components
