CABAC AL RED. LINK 10MM2 TO 6MM2 ALKR10/6 x 1/EACH

Description

Reliable Performance for Aluminium Terminations

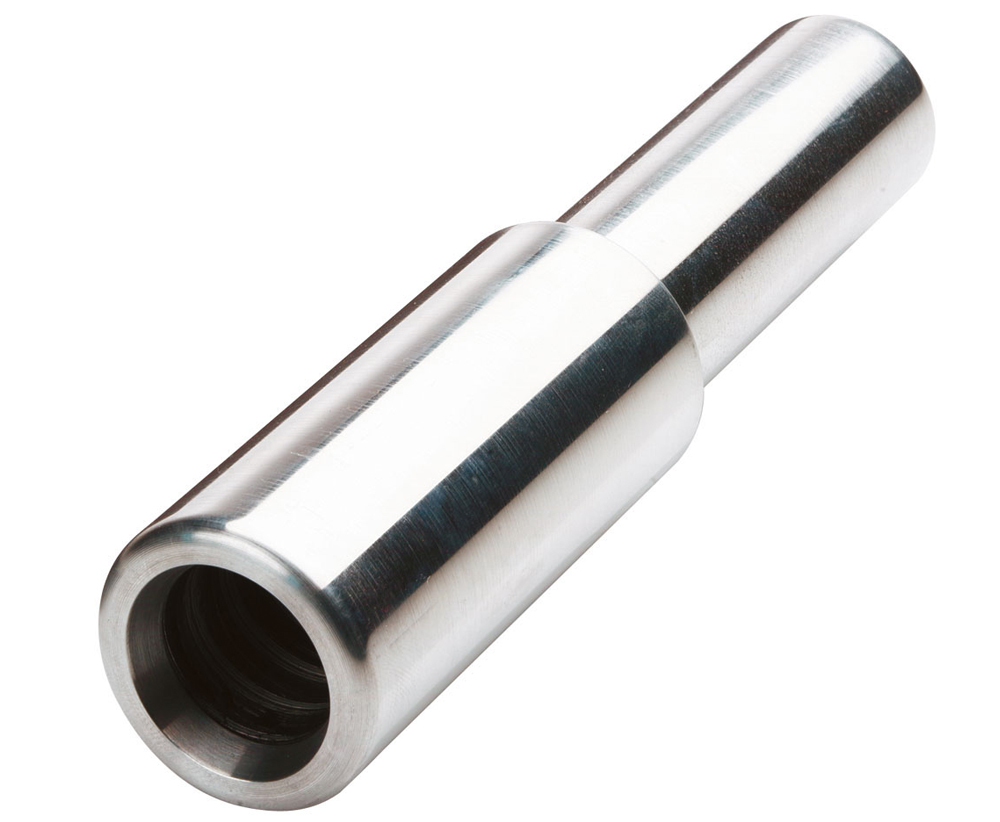

Designed for joining mismatched aluminium conductors, this aluminium reducing link provides a secure, low-resistance connection between 10mm² and 6mm² stranded sector or circular stranded aluminium cables. The fully annealed, high-purity aluminium construction delivers consistent conductivity and mechanical strength, helping ensure dependable current flow across residential, commercial, and industrial installations. With a barrier-type design, it maintains joint integrity even in demanding environments, supporting long-term performance and reducing the risk of call-backs.

Proven Compliance You Can Install with Confidence

Built to meet a wide range of international and Australian standards, this reducing link supports compliant installations across diverse project requirements. It’s suitable for applications where an impermeable barrier to oils or water is required, making it a reliable choice for switchboards, distribution systems, and infrastructure works. Designed to be crimped using standard Australian tooling and hex dies, it integrates seamlessly into established site practices—just avoid crimping too close to the centre barrier to maintain structural integrity.

Trade Convenience That Saves Time on Site

Supplied as a single, ready-to-install component, this reducing link helps streamline site work by eliminating the need for improvised solutions when conductor sizes don’t match. Clear sizing, standard tooling compatibility, and consistent manufacturing quality mean faster installs and fewer delays. Ideal for electricians who need dependable components available quickly through a trade wholesaler that understands tight programs and repeat purchasing.

Key Specs

• Nominal Conductor: 10mm² to 6mm²

• Stranding Metric: 7/1.35 – 7/1.04

• Conductive Material: Aluminium 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Operating Temperature: -20°C to +140°C

• Crimp Die (Aluminium): HT-6/35AL

• Standards: AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians working with aluminium conductors

• Residential, commercial, and industrial electrical installations

• Switchboards, distribution boards, and cable terminations

• Situations requiring a barrier-type aluminium connection resistant to oils or moisture

• Maintenance and upgrade works involving mixed conductor sizes
