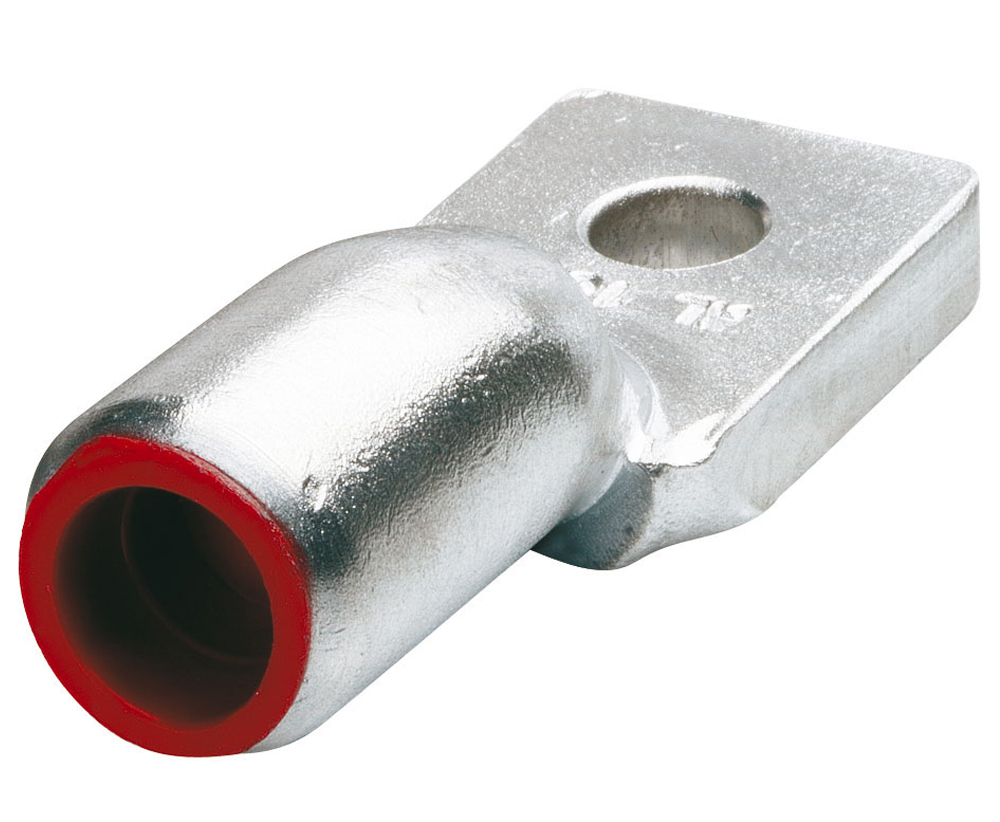

CABAC AL LUG 70MM2 – STUD 12MM AL70-12 x 1/EACH

Description

Built for Strong, Efficient Electrical Performance

Designed for dependable terminations on aluminium conductors, this CABAC Aluminium Lug 70mm² delivers consistent electrical performance on demanding jobs. Manufactured from 99.6% pure electrical-grade aluminium using a forged process, it provides a dense, uniform structure that helps minimise resistance and reduce the risk of hot joints over time. The funnel-shaped barrel entry makes inserting stranded sector or circular stranded aluminium conductors quick and hassle-free, helping you work faster on site without fighting the cable. Once crimped, the fully annealed aluminium offers excellent ductility, supporting a secure, long-lasting connection that holds up under load and thermal cycling.

Proven Reliability & Standards Compliance You Can Trust

This aluminium lug is engineered for long-term reliability on Australian residential, commercial, and industrial installations. The barrel is chemically treated to reduce contact resistance and pre-filled with jointing compound, capped to protect against contamination before use. When crimped correctly with standard hexagonal dies from the palm outwards, the compound is forced into the conductor strands for a solid, reliable joint. Fully compliant with AS/NZS 4325 Part 1 and recognised international standards including IEC, DIN/VDE, JIS, BS, and UL/NEMA, it’s a safe choice for contractors who need confidence their terminations meet spec and pass inspection without rework.

Trade-Grade Convenience for Faster Jobs

Built with working electricians in mind, the CABAC AL LUG 70MM2 – STUD 12MM (AL70-12) supports efficient installs and fewer call-backs. The lug palm can be oriented in any direction, giving you flexibility when lining up terminations in tight switchboards, panels, or meter enclosures. Reliable materials, proven manufacturing, and compliance with recognised standards mean less downtime, fewer failures, and smoother project delivery. Ideal for trades who want consistent quality from a trusted brand, backed by easy procurement and fast availability through a dedicated electrical wholesaler.

Key Specs

• Nominal Conductor Size: 70mm²

• Stud Size: 12mm

• Palm Width: 26mm

• Conductive Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Compliance: AS/NZS 4325 Part 1; IEC; DIN/VDE; JIS; BS; UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Aluminium cable terminations in switchboards and panels

• Commercial, industrial, and large residential installations

• Maintenance and upgrade work requiring compliant connections

• Projects where long-term reliability and reduced rework matter
