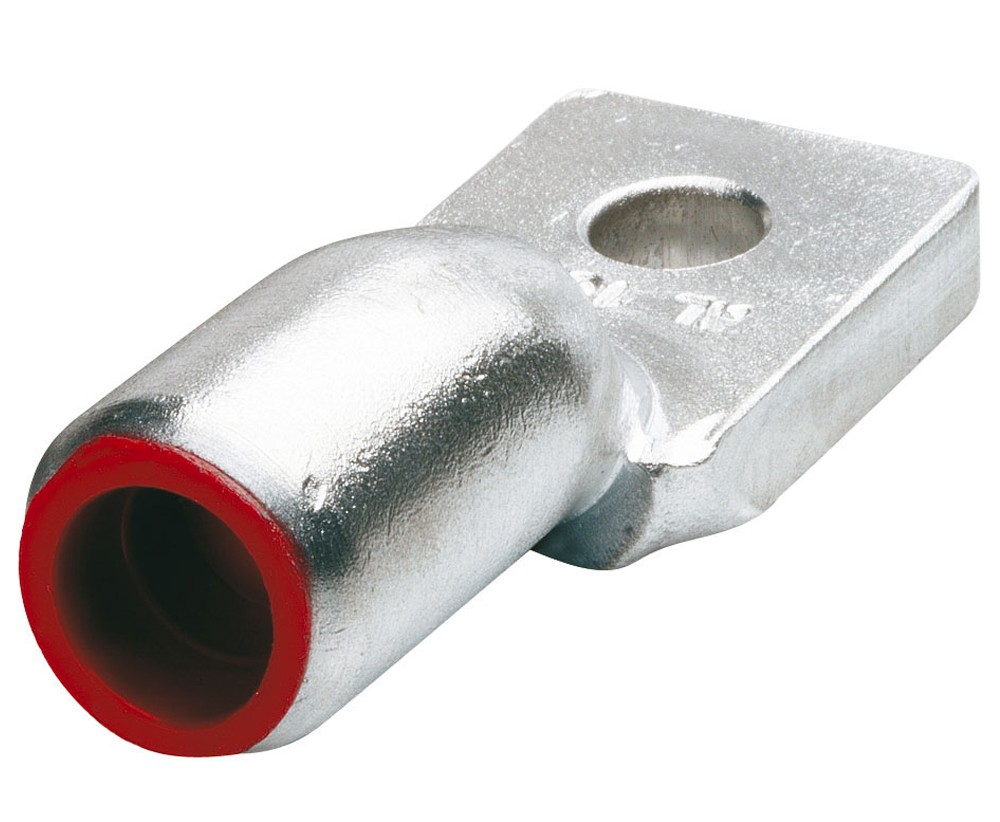

CABAC AL LUG 630MM2 – BLANK AL630 x 1/EACH

Description

High-Performance Termination for Large Aluminium Conductors

Designed for serious power applications, the CABAC Aluminium Lug 630mm² (Blank) delivers dependable performance when terminating large stranded sector or circular stranded aluminium conductors. Manufactured from 99.6% pure electrical-grade aluminium, the forged construction provides a dense, uniform metal structure that supports efficient current flow and reduces the risk of hot joints over time.
The unique funnel entry makes cable insertion faster and easier on site, while allowing the lug palm to be oriented in any direction for cleaner, more flexible installations. Pre-filled jointing compound and a capped barrel help protect the connection, saving time and improving long-term electrical integrity.

Proven Reliability & Standards Compliance

Reliability matters on commercial and industrial jobs where downtime isn’t an option. CABAC aluminium lugs are fully annealed for optimal ductility and strength, and the barrel is chemically treated to reduce contact resistance for consistent, long-term performance.
This aluminium lug is manufactured to meet major international and Australian standards, including AS/NZS 4325 Part 1, giving contractors confidence that installations meet compliance requirements across a wide range of projects. When crimped correctly using standard hexagonal dies, it delivers a secure, low-resistance connection you can trust.

Trade-Ready Convenience for Busy Contractors

Built for real-world trade use, this CABAC AL Lug 630mm² supports faster installs and fewer call-backs. The blank palm design gives flexibility for custom drilling or orientation to suit site conditions, making it ideal for switchboards, panels, and heavy-duty terminations.
Available through a trade-focused wholesaler with competitive pricing and reliable stock access, it helps licensed electricians keep projects moving without delays or last-minute sourcing issues.

Key Specs

• Nominal Conductor Size: 630mm²

• Palm Width: 60mm

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductility: 28%

• Metal State: Fully annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Standards: AS/NZS 4325 Part 1; IEC; DIN/VDE; JIS; BS; UL/NEMA

Ideal For

• Licensed electricians working on high-current installations

• Commercial and industrial switchboards and panels

• Termination of large stranded aluminium conductors

• Maintenance and upgrade work on heavy-duty electrical systems
