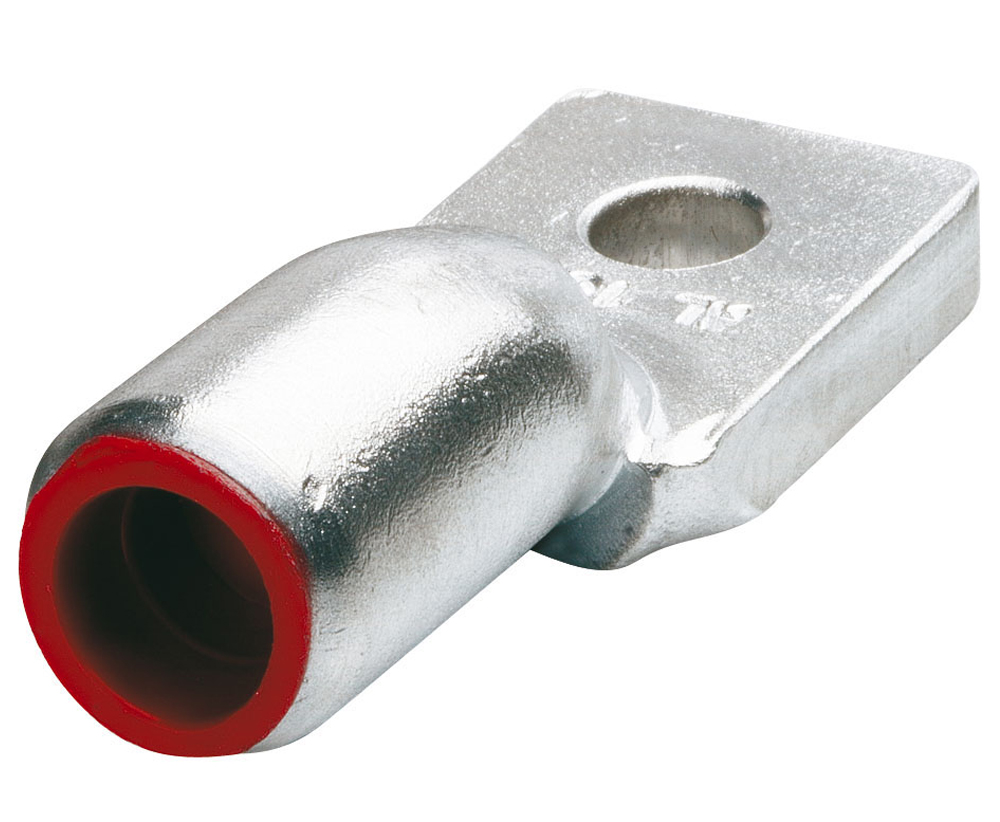

CABAC AL LUG 50MM2 – STUD 12MM AL50-12 x 1/EACH

Description

Built for Solid Electrical Performance on Every Job

When you need a dependable termination for aluminium conductors, the CABAC AL Lug 50mm² – 12mm Stud delivers consistent performance you can trust on site. Manufactured from 99.6% pure electrical-grade aluminium using a forged process, this lug avoids the structural imperfections common in cast lugs. The result is improved current flow, reduced contact resistance, and long-term reliability—helping prevent hot joints that cause callbacks and downtime. The unique funnel entry makes inserting stranded sector or circular stranded aluminium cable quick and hassle-free, keeping installs efficient even under tight timelines.

Proven Reliability with Full Standards Compliance

Designed for professional electrical work, this aluminium lug meets a wide range of international standards, including AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS, and UL/NEMA. The barrel is chemically treated, pre-filled with jointing compound, and capped to help maintain a stable, low-resistance connection over the life of the installation. Fully annealed for ductility and strength, it performs reliably across a wide operating temperature range, making it suitable for residential, commercial, and industrial environments where compliance and safety are non-negotiable.

Trade-Friendly Design That Saves Time on Site

Every detail of this CABAC aluminium lug is designed with the trade in mind. The palm can be oriented in any direction for easier alignment, reducing install time in switchboards, panels, and tight enclosures. It crimps with standard hexagonal dies, with a straightforward palm-out crimping method that pushes jointing compound into the conductors for a secure finish. Supplied as single units, it’s easy to order exactly what you need, reduce waste, and keep your projects moving without delays.

Key Specs

• Nominal Conductor Size: 50mm²

• Stud Size: 12mm

• Palm Width: 26mm

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully Annealed

• Operating Temperature: –20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Compliance: AS/NZS 4325 Part 1; IEC; DIN/VDE; JIS; BS; UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Aluminium conductor terminations in switchboards and panels

• Residential, commercial, and industrial installations

• Maintenance and upgrade work requiring compliant aluminium lugs

• Trade professionals needing reliable, forged aluminium connections
