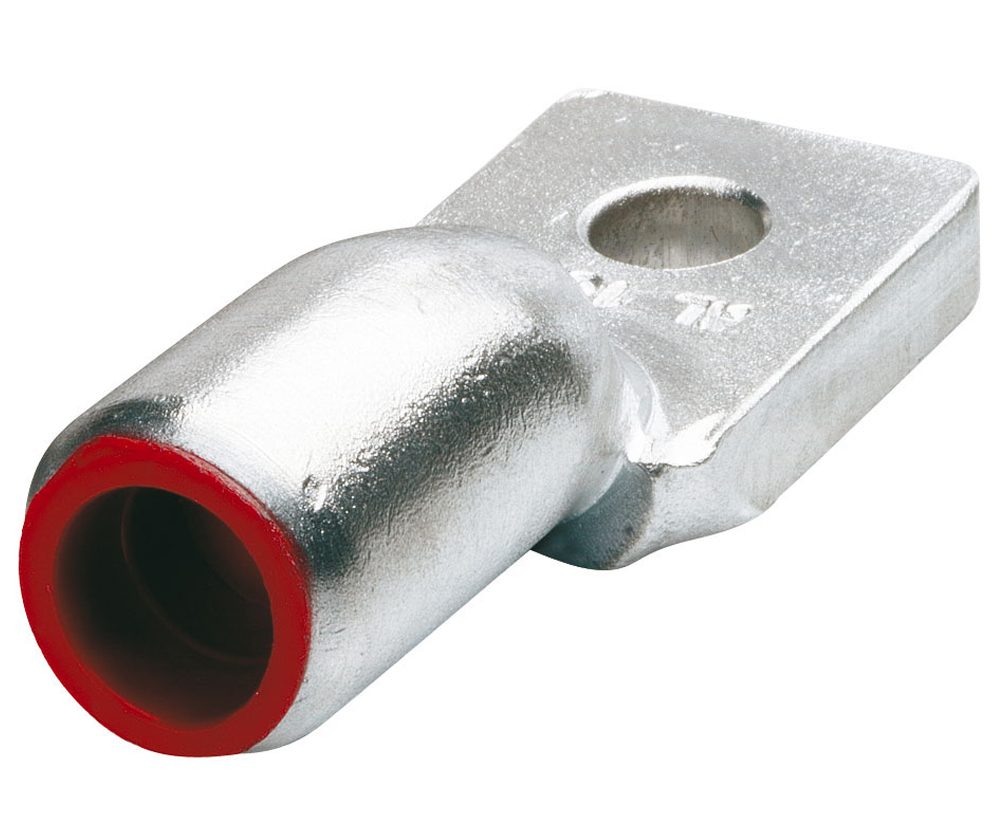

CABAC AL LUG 50MM2 – STUD 10MM AL50-10 x 1/EACH

Description

Built for dependable performance on every termination

The CABAC AL LUG 50MM² – Stud 10mm (AL50-10) is designed to deliver consistent, low-resistance connections on aluminium conductors, even in demanding site conditions. Manufactured from solid 99.6% pure electrical-grade aluminium using a forging process, this lug avoids the structural imperfections common in cast alternatives. The result is improved long-term electrical performance and reduced risk of hot joints that can cause callbacks and downtime. A practical funnel entry makes inserting stranded sector or circular stranded aluminium conductors faster and cleaner, helping you get terminations done right the first time.

Proven reliability with standards you can trust

When compliance matters, this aluminium lug gives peace of mind. The barrel is chemically treated to reduce contact resistance, factory-filled with jointing compound, and capped to protect against contamination before installation. Fully annealed for optimal ductility, it crimps cleanly using standard hexagonal dies, allowing the compound to be forced deep into the conductors for a secure connection. Compliant with AS/NZS 4325 Part 1 and recognised across major international standards, this lug is suitable for residential, commercial, and industrial applications where certified components are non-negotiable.

Trade convenience that saves time on site

Designed with electricians and contractors in mind, the lug palm can be oriented in any direction, making alignment easy in tight switchboards and panels. Clear sizing for 50mm² aluminium conductors and a 10mm stud helps reduce selection errors when ordering or working under pressure. Supplied individually, it’s ideal for top-ups, maintenance jobs, or keeping service vehicles stocked without over-buying. Reliable quality, predictable installation, and easy procurement all add up to less time chasing parts and more time finishing jobs on schedule.

Key Specs

• Nominal Conductor Size: 50mm²

• Stud Size: 10mm

• Palm Width: 26mm

• Conductive Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Electrical Conductivity: 61.8% IACS (min)

• Standards: AS/NZS 4325 Part 1; IEC; DIN/VDE; JIS; BS; UL/NEMA

Ideal For

• Licensed electricians terminating aluminium mains and sub-mains

• Commercial and industrial switchboards and distribution panels

• Maintenance and upgrade work on existing aluminium cabling

• Projects requiring compliant, trade-approved aluminium lugs
