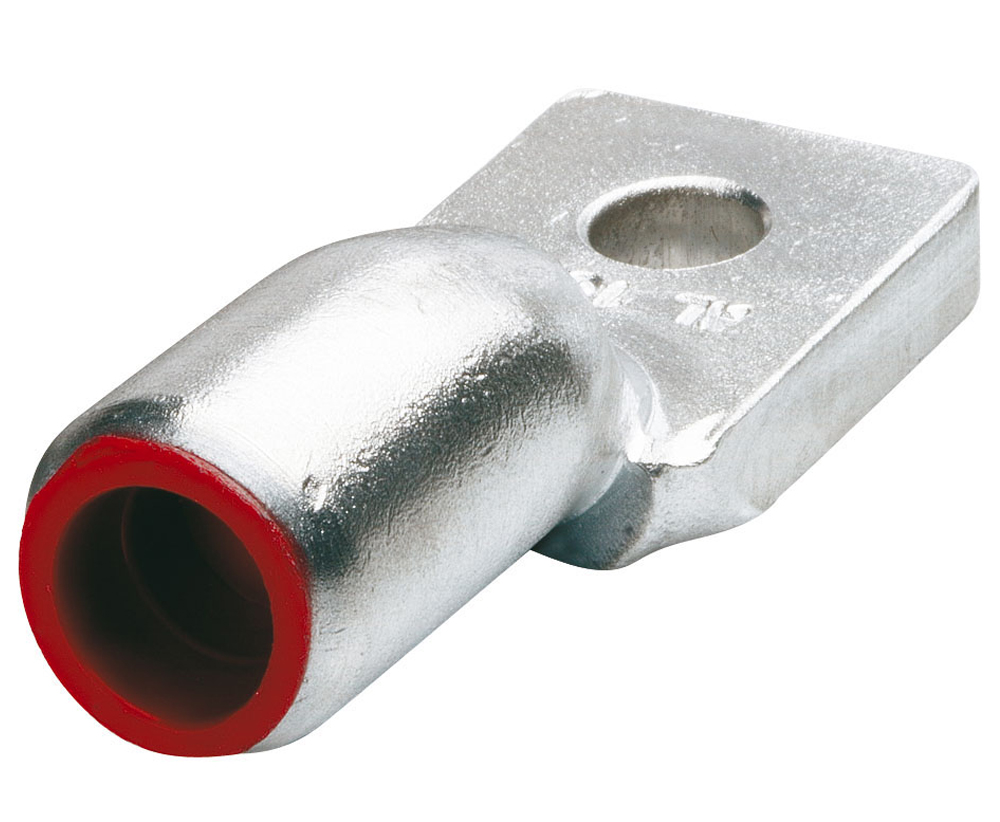

CABAC AL LUG 400MM2 – BLANK AL400 x 1/EACH

Description

Built for High-Current Performance on Site

The CABAC AL Lug 400mm² Blank is designed for demanding power and distribution work where consistent conductivity matters. Manufactured from 99.6% pure electrical-grade aluminium using a forged process, this aluminium lug delivers strong, uniform metal structure for dependable current flow. The unique funnel entry makes inserting stranded sector or circular stranded aluminium conductors quicker and cleaner, saving time during termination. With the palm able to be oriented in any direction, alignment is simple even in tight switchboards or panels, helping electricians complete terminations efficiently without rework.

Proven Reliability & Global Compliance

Reliability on live installations starts with quality materials and correct standards. CABAC aluminium lugs are chemically treated to reduce contact resistance and pre-filled with jointing compound, helping minimise the risk of hot joints over the long term. Fully annealed for ductility and strength, this lug is suitable for operating temperatures from -20°C to +140°C, covering most commercial and industrial environments. It complies with AS/NZS4325 Part 1 and is recognised under major international standards including IEC, DIN/VDE, JIS, BS, and UL/NEMA, giving contractors confidence on inspected and certified projects.

Trade-Grade Convenience That Keeps Jobs Moving

Designed with working electricians in mind, the AL400 blank aluminium lug crimps easily using standard hexagonal dies, with crimping from the palm outwards to properly distribute the jointing compound into the conductors. This helps reduce installation errors and call-backs, especially on high-load circuits. Ideal for contractors who value fast procurement and dependable components, this lug supports efficient workflows on commercial builds, industrial maintenance, and infrastructure upgrades—keeping crews productive and projects on schedule.

Key Specs

• Nominal Conductor Size: 400mm²

• Stud Size: Blank (no hole)

• Palm Width: 54mm

• Material: Aluminium, 99.6% pure

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Metal State: Fully annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

Ideal For

• Licensed electricians working on commercial or industrial installations

• Electrical contractors terminating large aluminium conductors

• Switchboards, distribution boards, and power infrastructure projects

• Maintenance teams requiring reliable, compliant aluminium lugs

• High-current applications where long-term connection integrity is critical
