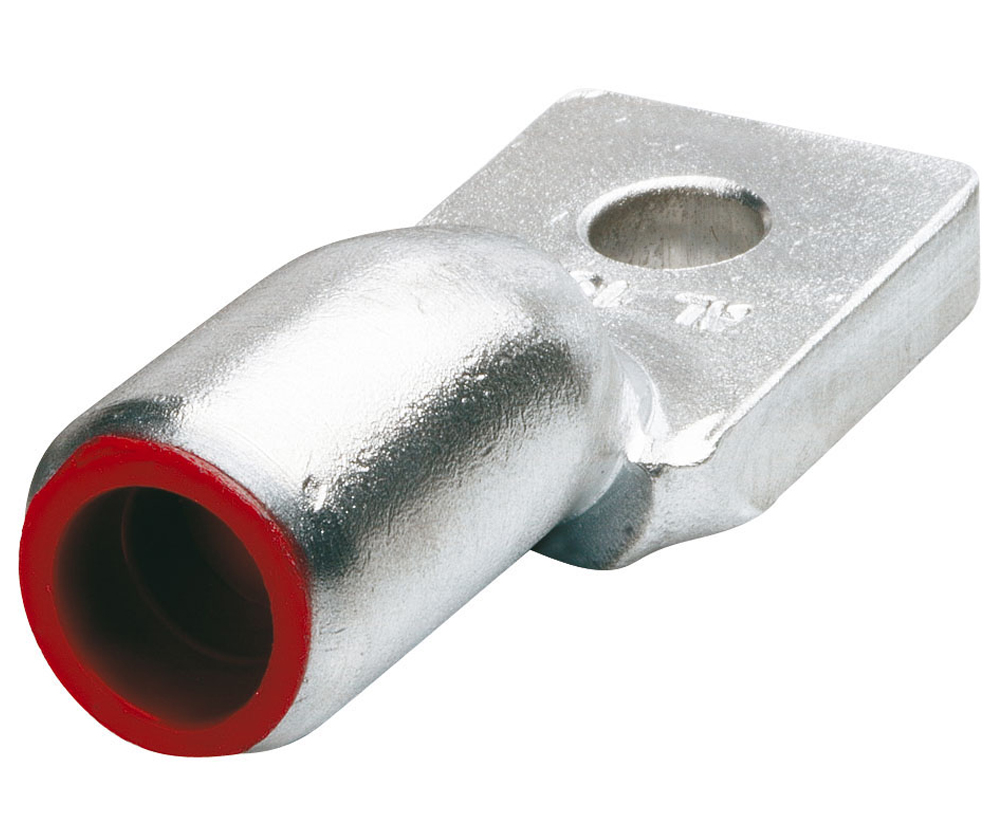

CABAC AL LUG 35MM2 – STUD 12MM AL35-12 x 1/EACH

Description

Strong Electrical Performance You Can Rely On

The CABAC AL LUG 35MM² – STUD 12MM is built for solid, low-resistance terminations on stranded sector and circular stranded aluminium conductors. Manufactured from 99.6% pure electrical-grade aluminium using a forging process, this lug delivers consistent conductivity and long-term joint integrity on demanding sites.
The funnel entry barrel makes cable insertion fast and frustration-free, even with sector conductors, while the fully annealed aluminium ensures reliable crimping without cracking. Pre-filled with jointing compound and chemically treated to reduce contact resistance, this lug helps eliminate hot joints and callbacks — keeping your installations clean, safe, and efficient.

Proven Reliability & Global Compliance

Designed for professional trade use, this aluminium lug meets key Australian and international standards, giving confidence on residential, commercial, and industrial jobs. Forged rather than cast, the metal structure is free from internal voids that can cause failures over time.
The capped barrel protects the jointing compound until installation, and when crimped with standard hexagonal dies from the palm outward, compound is driven deep into the conductor strands for a secure, corrosion-resistant connection. With an operating range of -20°C to +140°C, it’s well suited for switchboards, mains connections, and outdoor applications across Australia.

Trade-Ready Convenience That Saves Time

Built with electricians in mind, the lug palm can be oriented in any direction, making alignment easy inside tight boards and enclosures. No special tooling required — standard hex crimping keeps things simple and site-ready.
Whether you’re restocking for everyday work or ordering for a larger project, this CABAC aluminium lug fits seamlessly into fast-moving trade workflows. Reliable stock, accurate specs, and trade-grade quality help reduce downtime and keep jobs moving to schedule.

Key Specs

• Nominal Conductor Size: 35mm²

• Stud Size: 12mm

• Palm Width: 22mm

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed

• Operating Temperature: -20°C to +140°C

• Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Compliance: AS/NZS4325 Part 1; IEC; DIN/VDE; JIS; BS; UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Mains and sub-mains aluminium cable terminations

• Switchboards and distribution boards

• Commercial, industrial, and infrastructure projects

• Maintenance and upgrade works requiring compliant aluminium lugs
