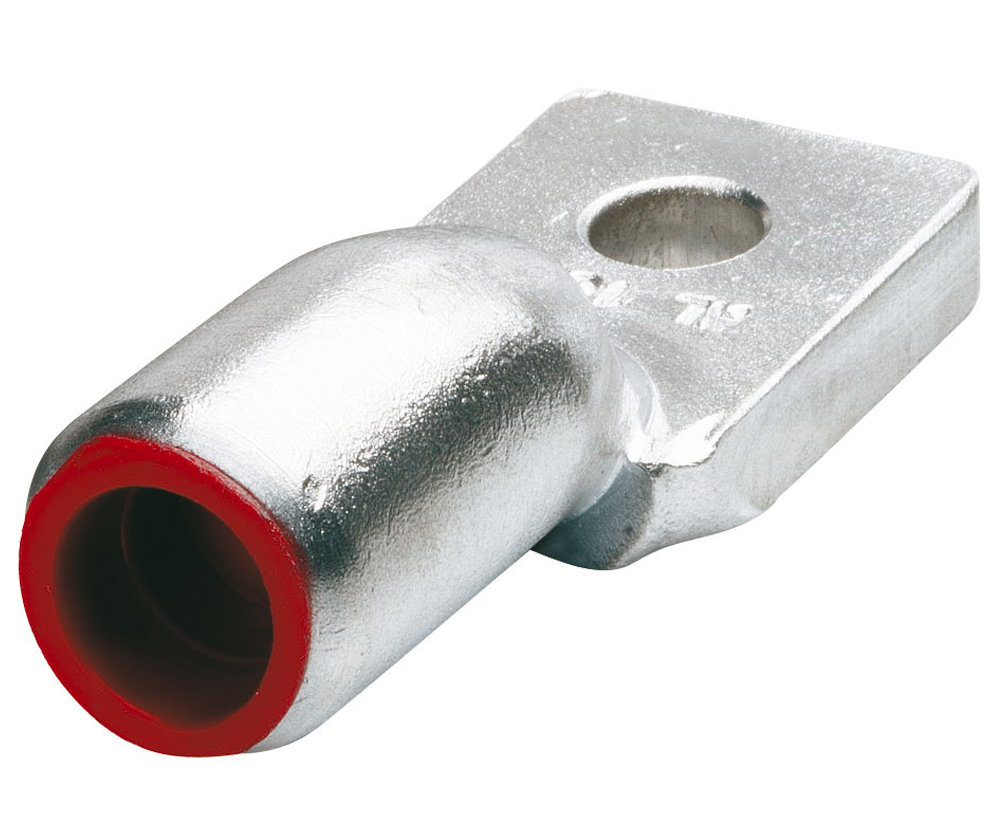

CABAC AL LUG 35MM2 – STUD 10MM AL35-10 x 1/EACH

Description

High-Performance Aluminium Lug for Secure Terminations

Designed for dependable electrical connections, the CABAC AL LUG 35MM² – STUD 10MM delivers strong, consistent performance on site. Manufactured from 99.6% pure electrical-grade aluminium, this aluminium lug provides excellent conductivity while maintaining mechanical strength under load. The forged construction eliminates common casting imperfections, helping prevent hot joints and reducing the risk of callbacks. A unique funnel entry makes inserting stranded sector or circular stranded aluminium conductors quick and clean, improving job efficiency during terminations. With a fully annealed barrel and jointing compound pre-filled and capped, installers can achieve a reliable crimp that holds up over time.

Proven Reliability & Standards Compliance

Built for professional electrical work, this CABAC aluminium lug meets a wide range of recognised international and Australian standards, supporting compliance across residential, commercial, and industrial installations. The chemically treated barrel reduces contact resistance, improving long-term electrical reliability in demanding environments. Designed to be crimped using standard hexagonal dies, the lug allows controlled, repeatable installations when crimped from the palm outwards, forcing jointing compound into the conductors. With an operating temperature range of -20°C to +140°C, it’s suited for switchboards, mains connections, and distribution applications where durability and compliance are non-negotiable.

Trade-Friendly Design & On-Site Convenience

Every detail of the CABAC AL LUG 35MM² – STUD 10MM is designed with electricians and contractors in mind. The palm can be oriented in any direction, giving flexibility during installation and making tight board layouts easier to manage. Pre-filled jointing compound saves prep time and helps ensure consistent results across multiple terminations. Supplied individually, it’s ideal for top-ups, urgent replacements, or staged project work without over-ordering. Backed by trade-grade quality and reliable supply, this aluminium lug helps keep projects moving and downtime to a minimum.

Key Specs

• Nominal Conductor Size: 35 mm²

• Stud Size: 10 mm

• Palm Width: 22 mm

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Electrical Conductivity: 61.8% IACS (min)

• Standards: AS/NZS4325 Part 1; IEC; DIN/VDE; JIS; BS; UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Switchboard and distribution board terminations

• Commercial and industrial aluminium conductor installations

• Maintenance and replacement work on existing aluminium cabling

• Projects requiring compliant, trade-grade aluminium lugs
