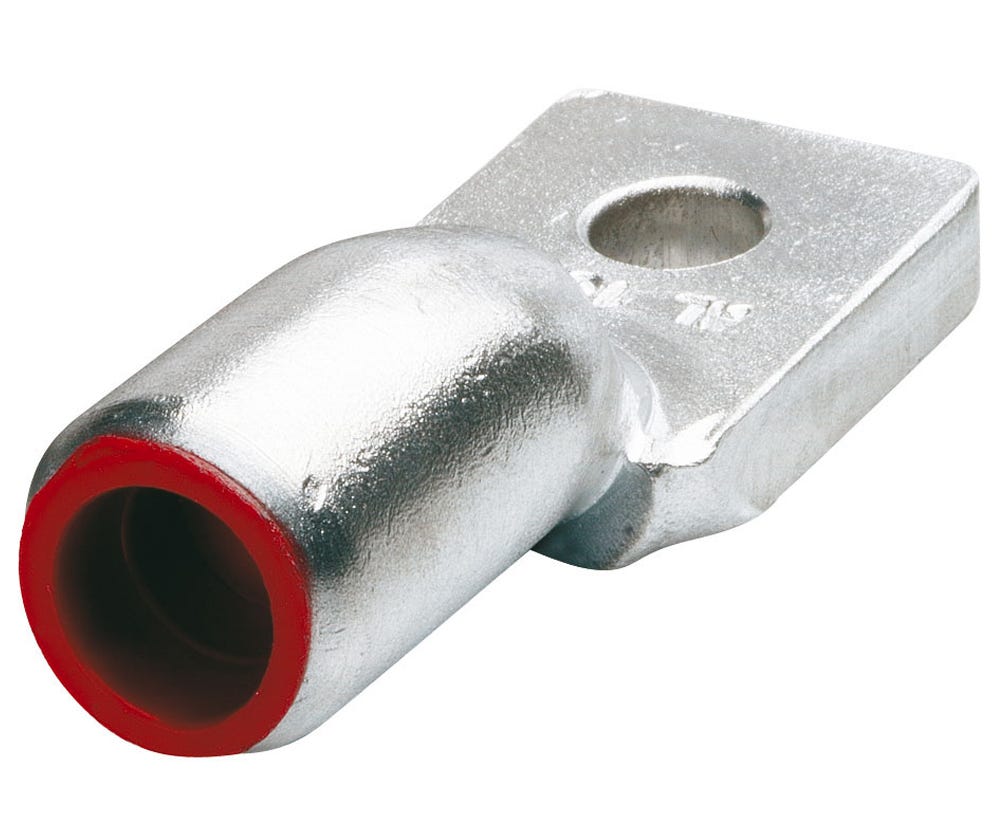

Cabac AL LUG 300MM2 – STUD 12MM AL300-12

Description

Built for High-Current Performance on Site

Designed for demanding power applications, this 300mm² aluminium lug delivers dependable electrical performance where it counts. The forged aluminium construction provides a dense, uniform metal structure that improves current flow and reduces the risk of hot joints over time. A funnel entry barrel allows stranded sector or circular aluminium conductors to slide in easily, saving time during termination and reducing frustration on site. With the ability to orient the palm in any direction, installers get flexibility when aligning with busbars, terminals, or equipment—especially useful in tight switchboard or distribution setups.

Proven Reliability and Compliance You Can Trust

Manufactured from 99.6% pure electrical-grade aluminium, this lug is chemically treated to reduce contact resistance and improve long-term joint integrity. Each barrel is filled with jointing compound and capped to protect against oxidation once installed. When crimped correctly using standard hexagonal dies from the palm outwards, the result is a secure, compliant termination suited to Australian conditions. Fully annealed for durability and tested to meet multiple international standards, this lug supports safe, compliant installations across commercial and industrial projects where reliability is non-negotiable.

Trade-Friendly Design That Speeds Up Installations

Built with working electricians in mind, this aluminium lug is easy to prep, crimp, and install—helping keep projects on schedule. Stranded sector cables insert cleanly without excessive dressing, reducing install time on larger conductors. The option to punch a custom stud hole in the palm on request adds extra flexibility for bespoke switchboards and panels. Ideal for contractors who value efficient procurement and dependable stock, this lug fits seamlessly into repeat jobs and large-scale electrical works without delays or rework.

Key Specs

• Nominal Conductor Size: 300mm²

• Stud Size: 12mm

• Palm Width: 37mm

• Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed

• Operating Temperature: -20°C to +140°C

• Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Lug Type: Standard

Ideal For

• Commercial and industrial power installations

• Switchboards and distribution boards

• Large aluminium conductor terminations

• Electrical contractors and maintenance teams

• Projects requiring compliant, long-term reliable connections
