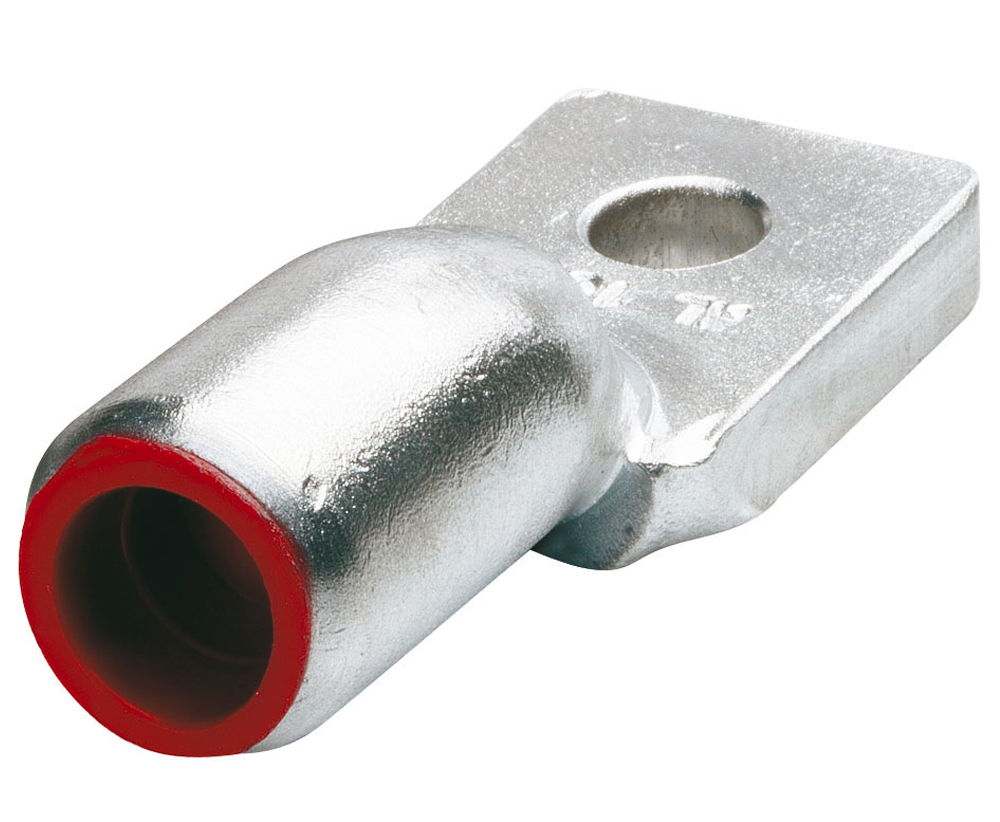

CABAC AL LUG 25MM2 – BLANK AL25 x 1/EACH

Description

Built for Strong, Consistent Performance on Site

When you need dependable terminations on aluminium conductors, the AL25 aluminium cable lug delivers solid, repeatable results. Manufactured from 99.6% pure electrical-grade aluminium using a forged process (not cast), this lug provides a dense, uniform structure that helps minimise hot joints over time. The funnel entry makes it quicker to insert stranded sector or circular stranded conductors, reducing install time and frustration on busy jobs. Pre-filled jointing compound improves contact quality, helping you achieve clean, efficient crimps every time.

Proven Reliability and Standards Compliance

These aluminium lugs are designed for long-term electrical reliability on Australian residential, commercial, and industrial projects. The chemically treated barrel reduces contact resistance, while the fully annealed aluminium improves ductility for secure crimping with standard hexagonal dies. Compliant with key international standards including AS/NZS4325 Part 1, this AL25 lug gives confidence when working to spec, passing inspections, and meeting client expectations—especially on critical infrastructure and maintenance work.

Trade Convenience That Keeps Projects Moving

Supplied individually for flexible ordering, the AL25 aluminium cable lug suits both small maintenance jobs and larger project builds. Easy orientation of the lug palm allows faster alignment in tight switchboards and enclosures, helping reduce downtime on site. Backed by trade-focused supply, competitive wholesale pricing, and fast local or national delivery, it’s a practical choice for electricians who value efficiency, availability, and hassle-free procurement.

Key Specs

• Nominal Conductor Size: 25mm²

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully Annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Palm Width: 22mm

Ideal For

• Licensed electricians terminating aluminium conductors

• Commercial and industrial switchboards

• Maintenance and upgrade works

• New installations requiring compliant aluminium lugs

• Contractors needing reliable aluminium cable lugs with fast availability
