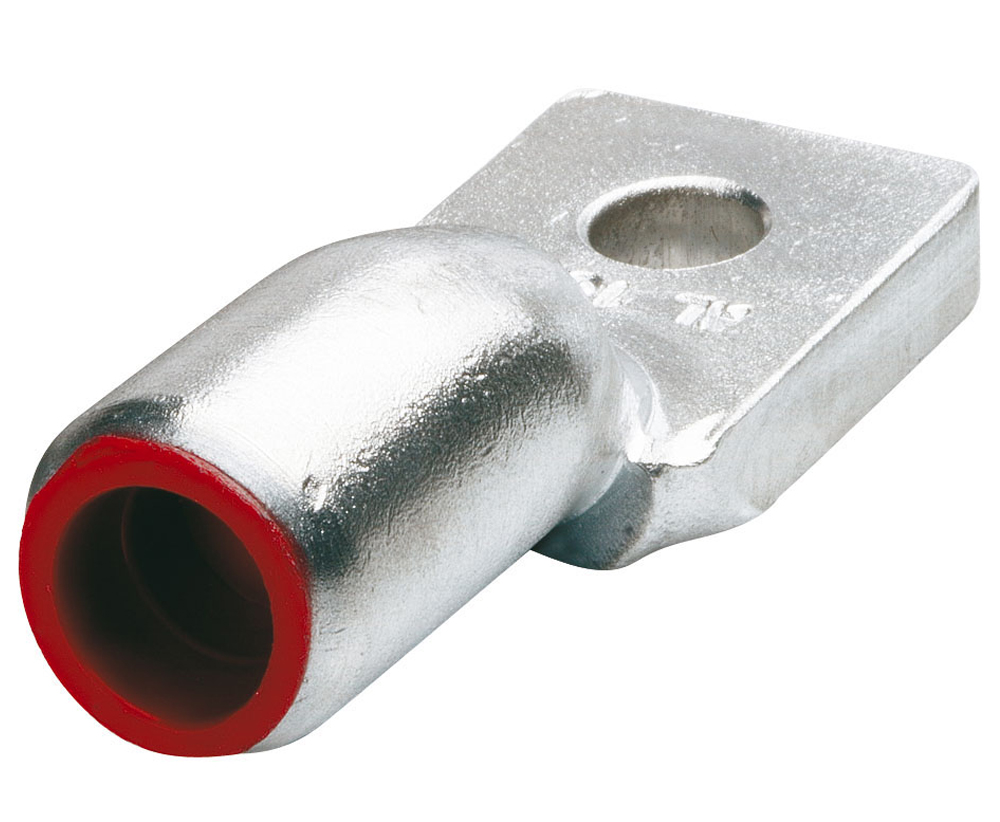

CABAC AL LUG 240MM2 – STUD 12MM AL240-12 x 1/EACH

Description

Built for High-Load Performance on Site

When you’re terminating large aluminium conductors, you need confidence that the connection will carry load without heating or failure. This 240 x 12 CABAC aluminium lug is forged from solid 99.6% pure electrical-grade aluminium for consistent conductivity and long-term performance. The forged construction eliminates internal voids found in cast lugs, reducing the risk of hot joints and call-backs. A flared funnel entry makes it quicker to feed stranded sector or circular stranded aluminium cable, saving time on every termination while keeping installs neat and secure.

Reliable, Compliant & Made for Australian Conditions

Designed for dependable electrical connections across residential, commercial, and industrial sites, these CABAC aluminium lugs meet a wide range of international standards, giving peace of mind on compliance-critical jobs. The chemically treated barrel reduces contact resistance, while the factory-filled jointing compound helps protect the connection over time. Fully annealed for ductility, the lug allows correct crimping without cracking, even in demanding environments and temperature variations common on Australian sites.

Trade-Ready Convenience That Keeps Jobs Moving

This 240mm² aluminium lug with 12mm stud is built for fast, repeatable installs using standard hexagonal crimping dies. The lug palm can be oriented in any direction, making alignment easier in tight switchboards and panels. Supplied capped and ready for use, it helps reduce prep time and keeps crews productive. Ideal for contractors who value reliable stock, consistent quality, and components that won’t slow the job down.

Key Specs

• Nominal Conductor Size: 240mm²

• Stud Size: 12mm

• Palm Width: 37mm

• Conductive Material: 99.6% pure aluminium

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Compliance: AS/NZS4325 Part 1; IEC; DIN/VDE; JIS; BS; UL/NEMA

Ideal For

• Licensed electricians and electrical contractors

• Terminating large aluminium conductors in switchboards

• Commercial and industrial power installations

• Maintenance and upgrade works requiring compliant connections

• Projects where reliability and reduced downtime matter
