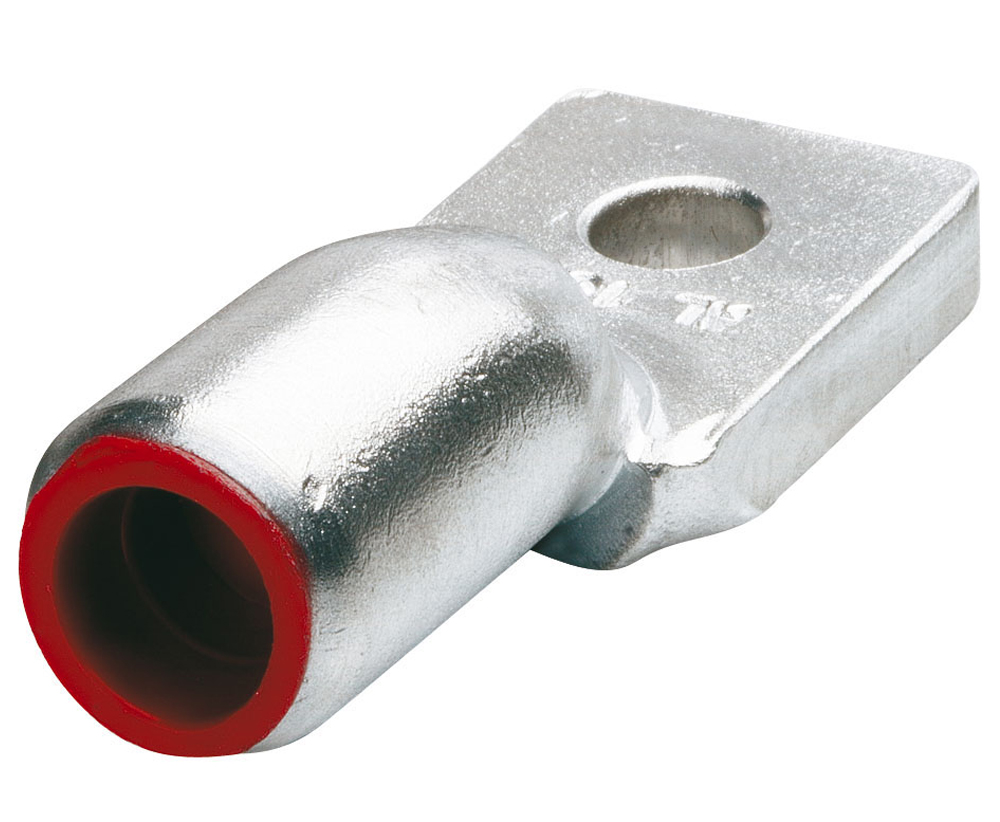

CABAC AL LUG 120MM2 – STUD 10MM AL120-10 x 1/EACH

Description

High-Performance Connections for Heavy-Duty Cabling

Designed for demanding installations, these aluminium lugs 120 sq mm deliver consistent, low-resistance terminations on stranded sector and circular stranded aluminium conductors. Manufactured from solid 99.6% pure electrical-grade aluminium rod using a forging process, they eliminate the internal imperfections common in cast lugs. The result is improved current flow, reduced heat build-up, and long-term performance you can trust on high-load circuits. A unique funnel entry makes cable insertion faster and cleaner, helping you get reliable crimps first time, every time.

Built for Reliability and Standards Compliance

On commercial and industrial sites, compliance isn’t optional. CABAC aluminium lugs are fully annealed for ductility and strength, chemically treated to reduce contact resistance, and pre-filled with jointing compound to protect against oxidation. When crimped correctly with standard hexagonal dies, the compound is forced into the conductors for a secure, long-lasting joint. These lugs meet key international standards including AS/NZS 4325 Part 1, giving confidence they’ll pass inspection and perform reliably over the long term, even in harsh operating temperatures.

Trade-Ready Convenience That Saves Time on Site

Every detail is designed with working electricians in mind. The capped, compound-filled barrel is ready to go straight out of the box, while the palm can be oriented in any direction for easier alignment in tight switchboards and panels. Whether you’re wiring distribution boards, upgrading mains, or handling large commercial terminations, these aluminium lugs 120 sq mm help reduce rework, minimise downtime, and keep projects moving. Backed by consistent stock availability and fast delivery, they’re a dependable choice for busy trade schedules.

Key Specs

• Nominal Conductor Size: 120 mm²

• Stud Size: 10 mm

• Palm Width: 30 mm

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Rating: 28%

• Final Metal State: Fully Annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Electrical Conductivity: 61.8% IACS (min)

Ideal For

• Licensed electricians and electrical contractors

• Commercial and industrial switchboards

• Mains upgrades and heavy-duty terminations

• Facilities maintenance and infrastructure projects

• Jobs requiring compliant aluminium conductor connections
