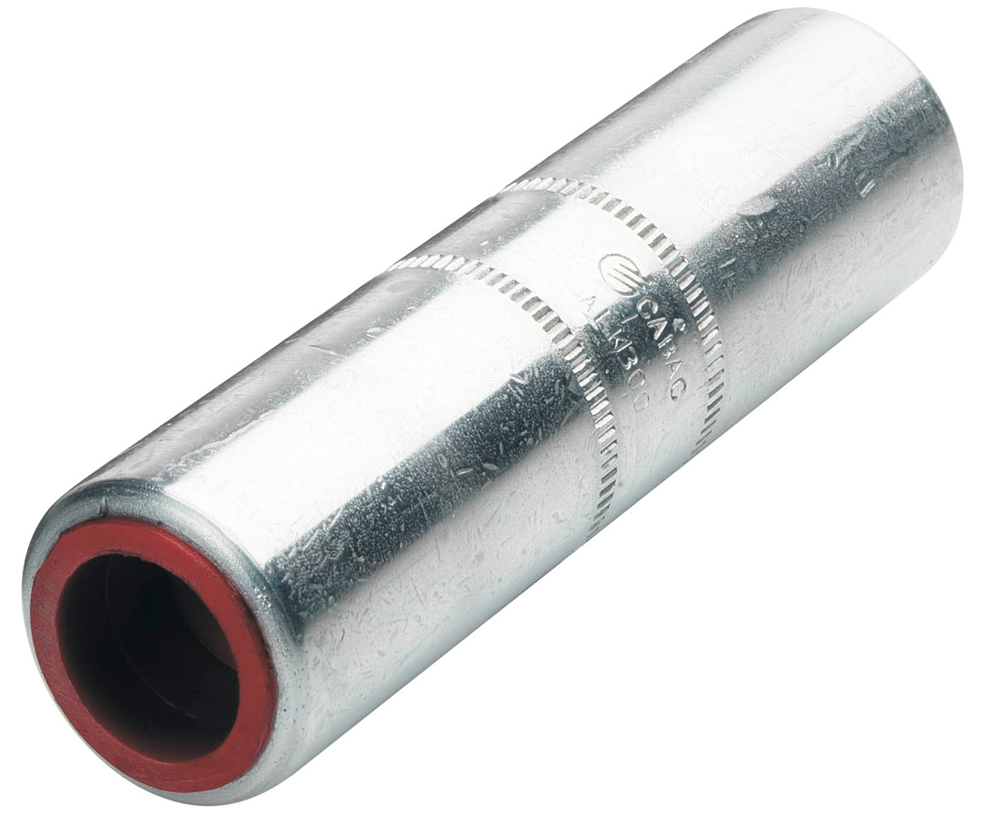

CABAC AL LINK 800MM2 ALK800 x 1/EACH

Description

Built for High-Load Performance on Critical Connections

The CABAC Aluminium Link Barrier Type 800mm² is designed for secure, low-resistance terminations on large stranded aluminium conductors. Manufactured from solid 99.6% pure electrical-grade aluminium rod, each link delivers consistent conductivity and long-term performance on demanding commercial and industrial jobs. The forged construction removes internal metal imperfections, helping prevent hot joints and reducing the risk of future call-backs. A unique funnel entry makes it faster and easier to insert stranded sector or circular stranded conductors, saving time during installation on site.

Proven Reliability with Australian & International Compliance

These aluminium links are chemically treated to reduce contact resistance and come pre-filled with jointing compound and capped for added protection. The barrier-type design forces compound back along the conductor strands during crimping, improving electrical integrity and acting as an effective barrier for oil-filled cables and similar applications. Fully annealed for ductility and strength, the link is suitable for operating temperatures from -20°C to +140°C. Compliant with AS/NZS4325 Part 1 and recognised international standards, it’s a dependable choice for installations where compliance and long-term reliability matter.

Trade-Ready Convenience That Keeps Projects Moving

Designed with licensed electricians and contractors in mind, the CABAC ALK800 Aluminium Link crimps easily using standard hexagonal dies, helping streamline termination work on site. Scratch brush the conductor, crimp from the centre outwards, and get a clean, reliable joint without unnecessary rework. Available through iSupply Electrical’s trade-focused range, you get competitive wholesale pricing, fast access, and the confidence of sourcing compliant components from a supplier that understands project deadlines and site pressures.

Key Specs

• Nominal Conductor Size: 800mm²

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Final Metal State: Fully Annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

• Design: Barrier Type with Funnel Entry

Ideal For

• Licensed electricians and electrical contractors

• Commercial and industrial power installations

• Terminating large stranded sector or circular aluminium conductors

• Oil-filled cable applications requiring barrier-type links

• Projects where compliance, reliability, and long service life are critical
