CABAC AL LINK 50MM2 ALK50 x 1/EACH

Description

Built for Reliable Performance on Site

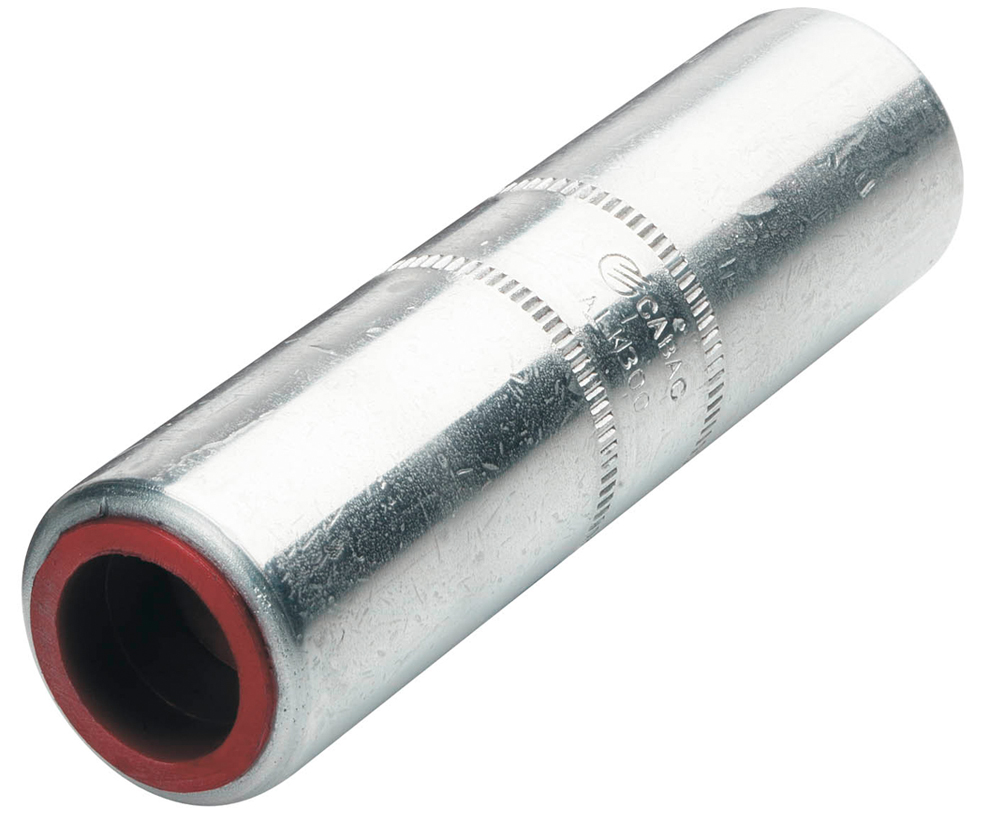

The CABAC AL LINK 50MM² Barrier Type Aluminium Link is designed to deliver consistent, low-resistance connections when jointing stranded sector or circular stranded aluminium conductors. Manufactured from solid 99.6% pure electrical-grade aluminium rod, the forging process removes internal imperfections that can lead to hot joints over time. The result is a dependable aluminium link that supports long-term electrical performance, even in demanding commercial and industrial environments.
The unique funnel entry makes conductor insertion faster and easier, helping reduce handling time on site and ensuring correct seating before crimping. Filled with jointing compound and capped, this link is purpose-built to improve conductivity and minimise future maintenance issues.

Compliance, Quality & Long-Term Reliability

Designed to meet the expectations of Australian licensed electricians, this aluminium link complies with recognised international standards including AS/NZS4325 Part 1, IEC, DIN/VDE, JIS, BS, and UL/NEMA. The chemically treated barrel reduces contact resistance, while the barrier-type design forces jointing compound back along the conductor strands during crimping. This not only improves electrical continuity but also acts as an effective barrier for oil-filled cables and similar applications.
With a fully annealed final metal state and a wide operating temperature range, the CABAC AL LINK 50MM² is built for durability and peace of mind on compliant installations.

Trade Convenience That Saves Time

For electricians and contractors working to tight schedules, this aluminium link is easy to work with using standard hexagonal crimping dies. Crimping from the centre outwards helps drive jointing compound into the strands, supporting a clean, efficient install with reduced risk of callbacks.
Available as part of a standard metric range, the ALK50 suits common site requirements and integrates seamlessly into everyday trade workflows. It’s a practical, no-nonsense solution for professionals who value quality materials, reliable stock, and smooth procurement to keep jobs moving.

Key Specs

• Nominal Conductor Size: 50mm²

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Final Metal State: Fully Annealed

• Operating Temperature: -20°C to +140°C

• Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

Ideal For

• Licensed electricians working on residential, commercial, and industrial installations

• Jointing stranded sector and circular stranded aluminium conductors

• Maintenance and upgrade work requiring reliable aluminium connections

• Projects requiring compliance with Australian and international standards
