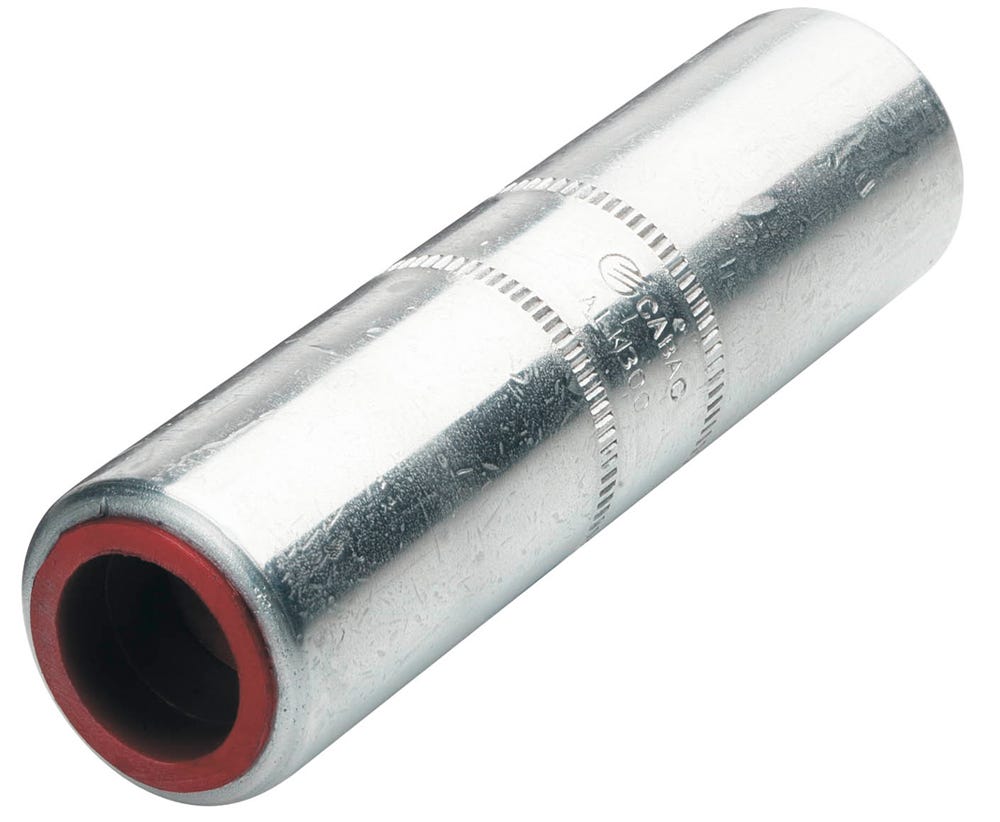

Cabac AL LINK 400MM2 ALK400

Description

Built for High-Performance Aluminium Terminations

Designed for demanding commercial and industrial applications, the Cabac AL LINK 400MM2 ALK400 delivers consistent, low-resistance connections on stranded sector and circular stranded aluminium conductors. Manufactured from solid 99.6% pure electrical-grade aluminium rod, the forging process eliminates internal metal imperfections, helping maintain long-term electrical performance and reducing the risk of hot joints on critical circuits. The unique funnel entry allows faster, easier conductor insertion, improving on-site efficiency when working with large aluminium cables under time pressure.

Reliable, Compliant, and Built to Last

This aluminium link features a proven barrier-type design that actively forces jointing compound back along the conductor strands during crimping, improving contact integrity and helping protect against moisture or oil migration in oil-filled cable installations. Chemically treated barrels reduce contact resistance, while factory-filled jointing compound and end caps support consistent, repeatable results. Clearly marked crimping lines guide correct installation, with centre-out crimping using standard Australian Z hex dies to support compliant, reliable terminations that stand up over the life of the installation.

Trade-Focused Convenience on Every Job

Engineered with working electricians and contractors in mind, the Cabac AL LINK 400MM2 ALK400 helps minimise rework and downtime on site. The barrier design, funnel entry, and clear crimp markings speed up installation, while compatibility with standard Australian tooling avoids the need for specialised equipment. Ideal for contractors managing tight programs across commercial, industrial, and infrastructure projects, this link offers dependable performance backed by trade-grade manufacturing—helping keep jobs moving and schedules on track.

Key Specs

• Aluminium link – barrier type

• Suitable for stranded sector and circular stranded aluminium conductors

• Manufactured from solid 99.6% pure electrical-grade aluminium rod

• Funnel entry for easier cable insertion

• Chemically treated barrel to reduce contact resistance

• Factory filled with jointing compound and capped

• Clearly marked crimping lines

• Crimp with standard Australian Z hex dies

• Crimp from centre mark outwards

Ideal For

• Licensed electricians and electrical contractors

• Commercial and industrial aluminium cable terminations

• Oil-filled cable installations requiring barrier protection

• Switchboards, distribution boards, and heavy-duty power connections

• Projects where long-term reliability and reduced downtime matter
