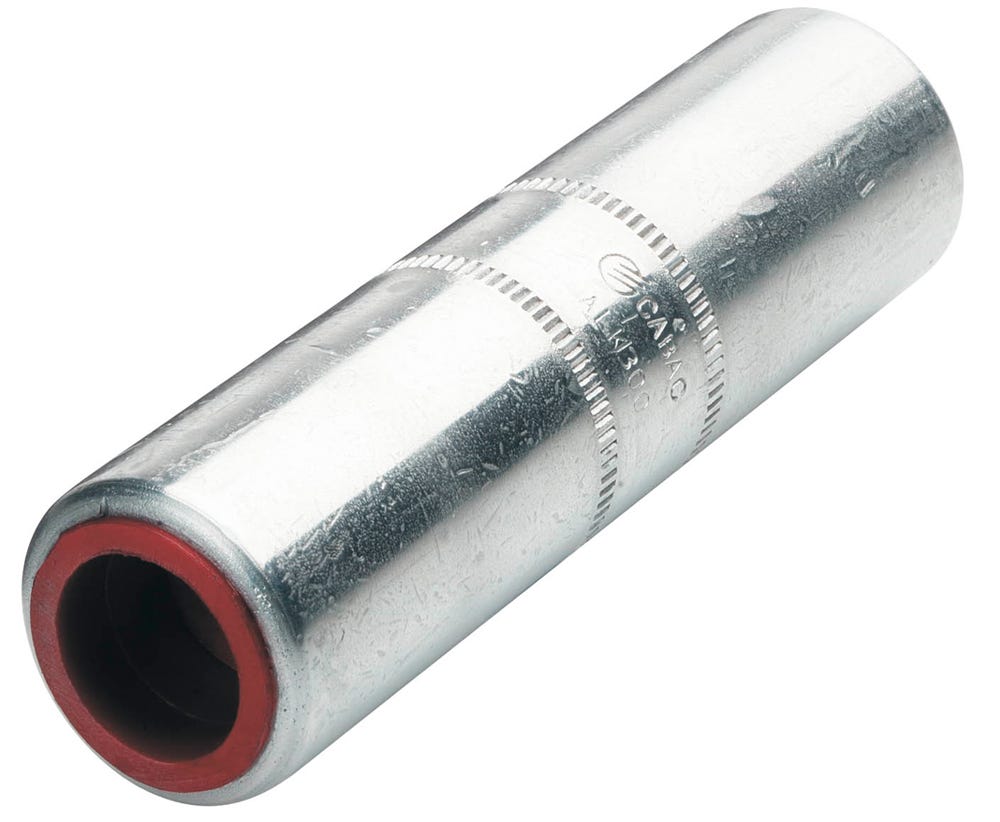

Cabac AL LINK 300MM2 ALK300

Description

High-Performance Jointing for Demanding Aluminium Connections

Designed for stranded sector and circular stranded aluminium conductors, the Cabac AL LINK 300MM² delivers consistent, low-resistance performance where it matters most. Manufactured from solid drawn 99.6% pure electrical-grade aluminium rod, the forging process eliminates metal imperfections that can lead to hot joints over time. The barrier-type design actively forces jointing compound back along the conductor strands during crimping, improving contact and long-term current flow. A unique funnel entry makes cable insertion faster and cleaner on site, saving time during install.

Built for Reliability, Compliance, and Long-Term Service

Engineered for Australian conditions, this aluminium link is chemically treated to reduce contact resistance and supplied pre-filled with jointing compound and capped for protection. Clearly marked crimping lines guide correct installation, with centre-out crimping designed to distribute compound evenly through the joint. Compatible with standard Australian Z hex dies, it supports compliant, repeatable terminations across commercial and industrial applications—helping reduce callbacks and future maintenance risks.

Trade-Focused Design That Keeps Jobs Moving

Every detail is geared toward efficiency on the tools. The barrier link design also suits oil-filled cables, while minimised casting imperfections enhance durability in demanding environments. With a standard metric option readily available and the ability to manufacture special formats on request, this link supports both routine work and bespoke project needs—keeping procurement simple and downtime to a minimum.

Key Specs

• Size: 300mm²

• Material: Solid drawn 99.6% pure electrical-grade aluminium

• Type: Barrier aluminium link

• Conductor compatibility: Stranded sector and circular stranded aluminium conductors

• Jointing compound: Pre-filled and capped

• Crimping: Standard Australian Z hex dies

• Crimp method: Centre-out with clearly marked crimp lines

Ideal For

• Licensed electricians and electrical contractors

• Commercial and industrial aluminium cable jointing

• Oil-filled cable applications requiring barrier links

• Projects where long-term reliability and reduced hot joints are critical
