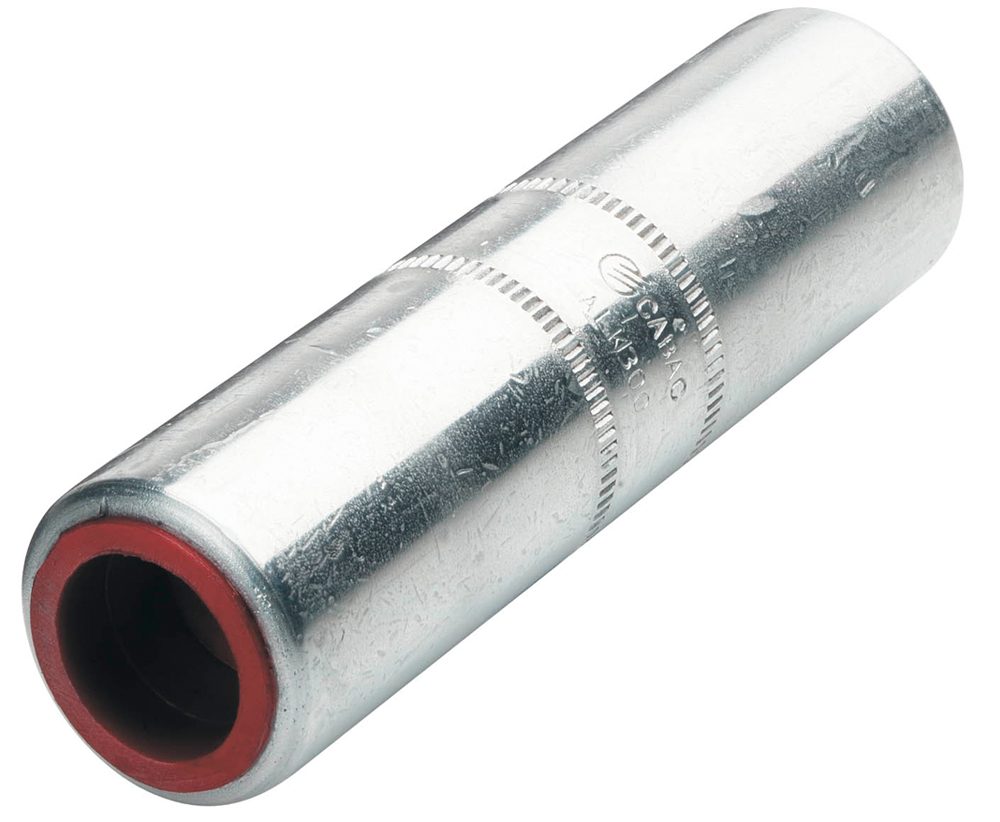

CABAC AL LINK 240MM2 ALK240 x 1/EACH

Description

Built for High-Performance Aluminium Jointing

The CABAC AL LINK 240MM² barrier type aluminium link is designed for secure, low-resistance jointing of stranded sector and circular stranded aluminium conductors. Manufactured from solid 99.6% pure electrical-grade aluminium rod, the forging process eliminates internal imperfections that can lead to hot joints over time. The result is a consistent, high-integrity connection you can rely on in demanding residential, commercial, and industrial installations. The unique funnel entry allows faster, easier cable insertion, saving time on site and reducing frustration when working with larger aluminium conductors.

Proven Reliability & Standards Compliance

This aluminium link is chemically treated to reduce contact resistance and is factory-filled with jointing compound, capped and ready for installation. During crimping, the barrier-type design forces compound back along the conductor strands, improving long-term electrical reliability and helping protect against oxidation and moisture ingress. Suitable for oil-filled cables and similar applications, the link is designed to be crimped with standard hexagonal dies, working from the centre outwards for optimal compound distribution. It complies with major international standards, including AS/NZS 4325 Part 1, giving confidence on inspected and specified jobs.

Trade Convenience You Can Count On

Built for working electricians who value speed, reliability, and fewer call-backs, the CABAC AL LINK 240MM² supports efficient installations without cutting corners. It’s ideal for contractors handling tight timelines, multiple jobs, or large conductor terminations where quality jointing is critical. Backed by a trade-focused wholesaler with competitive pricing, strong stock availability, and fast Australia-wide delivery or Sydney pick-up, it helps keep projects moving and downtime to a minimum.

Key Specs

• Nominal Conductor Size: 240mm²

• Conductive Material: Aluminium (99.6% pure)

• Tensile Strength: 110 MPa

• Ductile Strength: 28%

• Final Metal State: Fully annealed

• Operating Temperature: -20°C to +140°C

• Electrical Resistivity: 2.6 micro-ohm cm (max)

• Conductivity: 61.8% IACS (min)

Ideal For

• Licensed electricians working with large aluminium conductors

• Commercial and industrial power installations

• Maintenance and upgrade works requiring reliable aluminium jointing

• Projects using stranded sector or circular stranded aluminium cables

• Contractors needing compliant components to meet Australian standards
