CABAC AL LINK 120MM2 ALK120 x 1/EACH

CABAC AL LINK 120MM2 ALK120 x 1/EACH

$45.96 inc GST

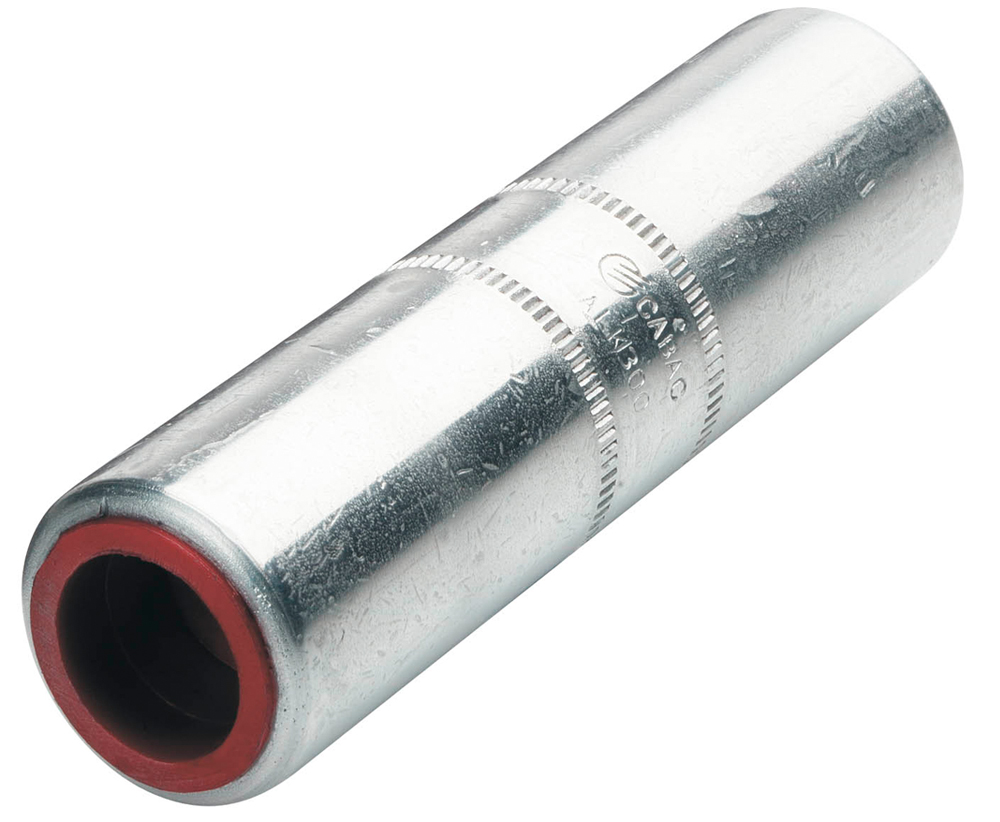

The CABAC ALK120 120mm² aluminium barrier link provides secure, low-resistance termination for stranded aluminium conductors. Manufactured from 99.6% electrical grade aluminium with a forged barrier design, funnel entry, and jointing compound-filled barrel, it delivers dependable performance, long service life, and compliance with Australian and international electrical standards.

fast-delivery

Fast Shipping

On All Orders


Australian Company

Owned & Operated

worker

15+ Years

Industry Experience

30-days

Easy Returns

30 Days Peace Of Mind

50 in stock

SKU: ALK 120.00 Categories: , ,

Description

Reliable Aluminium Link for Professional Cable Terminations

Designed specifically for demanding electrical applications, the CABAC ALK120 features a forged construction that eliminates internal imperfections commonly found in conventional aluminium connectors. This manufacturing process enhances mechanical strength while reducing the risk of hot joints throughout the life of the installation.

Its barrier-type design helps force jointing compound back through the conductor strands during crimping, improving electrical contact while providing an effective barrier for oil-filled cable applications. A unique funnel-shaped barrel entry allows easier insertion of stranded sector cables, helping electricians achieve faster, more accurate installations.

Built for Maximum Conductivity and Long Service Life

Each barrel is chemically treated to minimise contact resistance and comes pre-filled with jointing compound before being capped. When combined with proper scratch brushing and centre-outwards hexagonal crimping, the connector delivers excellent electrical performance and long-term corrosion resistance.

Manufactured from fully annealed aluminium with a minimum conductivity of 61.8% IACS, the ALK120 is suitable for operating temperatures from -20°C to +140°C, making it ideal for harsh Australian operating conditions.

Trusted Performance for Commercial and Industrial Projects

Whether you’re completing switchboard installations, power distribution upgrades, infrastructure works, or industrial maintenance, the CABAC ALK120 provides the quality and compliance professionals expect. Backed by CABAC’s reputation for premium electrical connection products, it offers a dependable solution for aluminium conductor terminations while meeting major international and Australian standards.

Key Specifications

  • Nominal conductor size: 120mm²
  • Barrier-type aluminium link
  • Suitable for stranded sector and circular stranded aluminium conductors
  • Manufactured from 99.6% pure electrical grade aluminium
  • Fully annealed forged construction
  • Funnel entry for easier conductor insertion
  • Chemically treated barrel
  • Pre-filled with jointing compound and capped
  • Operating temperature: -20°C to +140°C
  • Conductivity: Minimum 61.8% IACS
  • Maximum resistivity: 2.6 micro-ohm cm
  • Tensile strength: 110 MPa
  • Complies with AS/NZS 4325 Part 1, IEC, DIN/VDE, JIS, BS, and UL/NEMA standards

Ideal For

  • Licensed electricians
  • Electrical contractors
  • Commercial electrical installations
  • Industrial power distribution
  • Switchboard construction
  • Infrastructure projects
  • Building maintenance teams
  • Aluminium conductor terminations
  • Oil-filled cable applications
  • Electrical wholesalers and procurement professionals
