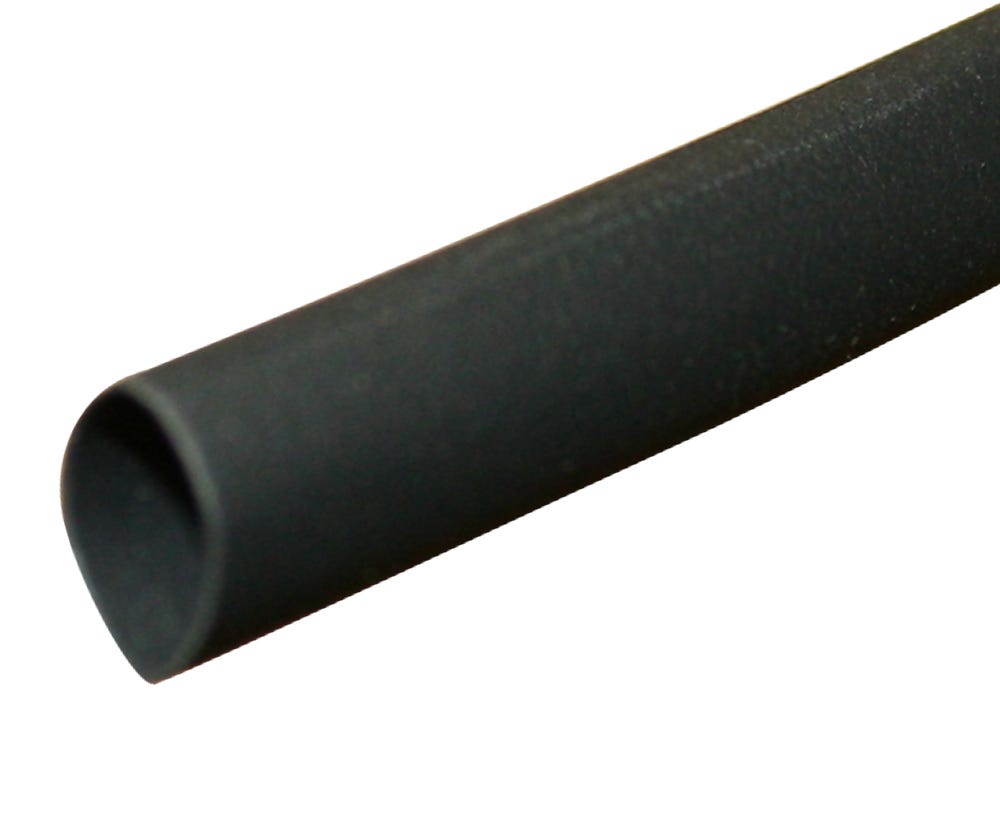

Cabac HIGH SHRINK 3-1MM BLACK XLH3BK

Description

Cross-linked Polyolefin heatshrink tube used primarily for waterproof jointing and sealing cable terminations

For electrical and electronic applications

UV, flame, abrasion and impact resistant

Product Description

XLH Thin Wall High Shrink Roll

The XLH range is a thin walled high shrink ratio tubing, used in areas where the shrink diameters of the smallest and largest shrink vary a lot.

A typical use is for connectors on the end of the cord, where the tubing will shrink around the connector, and around the wire. Because of the high shrink ratio, it is usually possible to slip the tubing over the connector, and shrink it onto a cord, which is significantly smaller than the
connector.

XLH Thin Wall High Shrink Features

•Highly flexible

• Flame retarded

• Abrasion and impact resistant

• Available in ultraviolet resistant black only

• Nominal shrink ratio 3:1

• In house cutting facility is available for cut lengths

Supplied on reels, or in handy kit packs with 5 x 200mm pieces of shrink in a bag.

Note: XLH Thin Wall High Shrink tubing should be shrunk using a heatgun such as the CABAC general purpose heatgun Part No. KG2000.

Technical Data

Conformant Standards: MIL-1-23053/5; JIS

Material: Cross-linked, thermally stabilised flame retarded polyolefin

Continuous operating temp: -75°C to +135°C

Shrinkage temp: > 100°C

Longitudinal shrinkage: < 5% Tensile strength: 16 MPa Breakdown voltage: 25 kV/mm wall thickness Volume resistivity: 1.0 x 1014 ohm cm Elongation at break point: 400% Water absorption: 0.15% max Flammability Passed: ASTM-D-2671 UV stability: Black tubing is stable Voltage rating: 600V Kits also available for retail display, and small user contact us for more information. Technical Specifications

After-Shrink Diameter (mm): 1

Recovered Wall Thickness (mm): 0.55

Product Colour: Black

Pre-Shrink Diameter (mm): 3.2

Glue Lined: No
