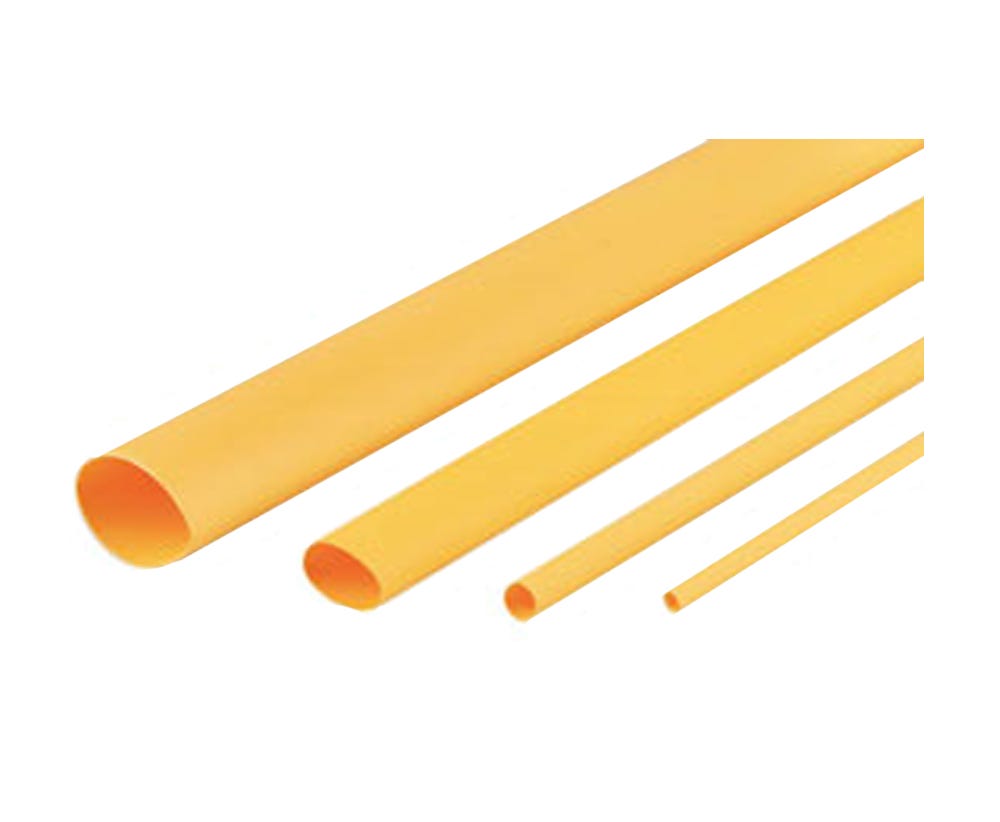

Cabac HEATSHRINK THIN WALL 9.5MM YELLOW XLP10Y x 50

Description

Reliable Electrical Insulation and Cable Protection

The CABAC XLP10Y Thin Wall Heat Shrink Tubing provides electricians and contractors with a reliable solution for insulating, protecting, and colour coding electrical conductors. Designed from flame retardant polyolefin, this yellow heat shrink tubing delivers excellent mechanical protection while helping improve cable identification in residential, commercial, and industrial applications.

Manufactured using Electron Beam Cross Linked technology, the XLP range offers superior durability and dimensional stability. When heated, the tubing shrinks tightly around cables and components to provide a secure insulating layer. With a shrink ratio of approximately 2:1, the 9.5mm pre-shrink diameter reduces to 4.8mm after installation.

The thin wall construction ensures flexibility and easy handling, making it suitable for electrical repairs, wiring installations, maintenance work, and general cable management applications.

Durable Performance for Trade Applications

CABAC yellow heat shrink tubing is engineered to withstand demanding environments. It offers resistance against common fluids, solvents, abrasion, and UV exposure, helping maintain reliable protection in indoor and outdoor electrical installations.

With a continuous operating temperature range of -75°C to +135°C and a voltage rating of 600V, this heat shrink sleeve is suitable for a wide variety of electrical applications. The material provides excellent tensile strength, high elongation properties, and strong dielectric performance for dependable insulation.

The XLP10Y is also flame retardant and complies with recognised industry standards, including UL224 VW1 and ASTM D2671, giving electrical professionals confidence when selecting insulation materials for compliant installations.

Trade-Ready Heat Shrink Solution from CABAC

Available in a convenient 50m roll, CABAC XLP10Y helps contractors maintain stock availability for ongoing projects. Its yellow colour makes conductor identification easier, supporting organised and efficient electrical installations.

Whether used for cable repairs, wire marking, insulation protection, or component covering, this CABAC heat shrink tubing delivers the quality and reliability expected by professional electricians.

Key Specs

• Brand: CABAC
• Model: XLP10Y
• Colour: Yellow
• Material: Electron Beam Cross Linked Polyolefin
• Wall Type: Thin Wall
• Pre-Shrink Diameter: 9.5mm
• After-Shrink Diameter: 4.8mm
• Recovered Wall Thickness: 0.62mm
• Length: 50m roll
• Shrink Ratio: Approximately 2:1
• Continuous Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% maximum
• Standards Compliance: UL224 VW1, ASTM D2671
• Glue Lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors completing residential and commercial installations
• Maintenance teams performing cable repairs and upgrades
• Cable identification and colour coding applications
• Protecting conductors from abrasion, moisture, and environmental exposure
• Trade professionals needing bulk heat shrink supply for ongoing projects
