Cabac HEATSHRINK THIN WALL 9.5MM YELGRN 5M BOX XLP10YG-5M

Description

Reliable Electrical Insulation and Conductor Protection

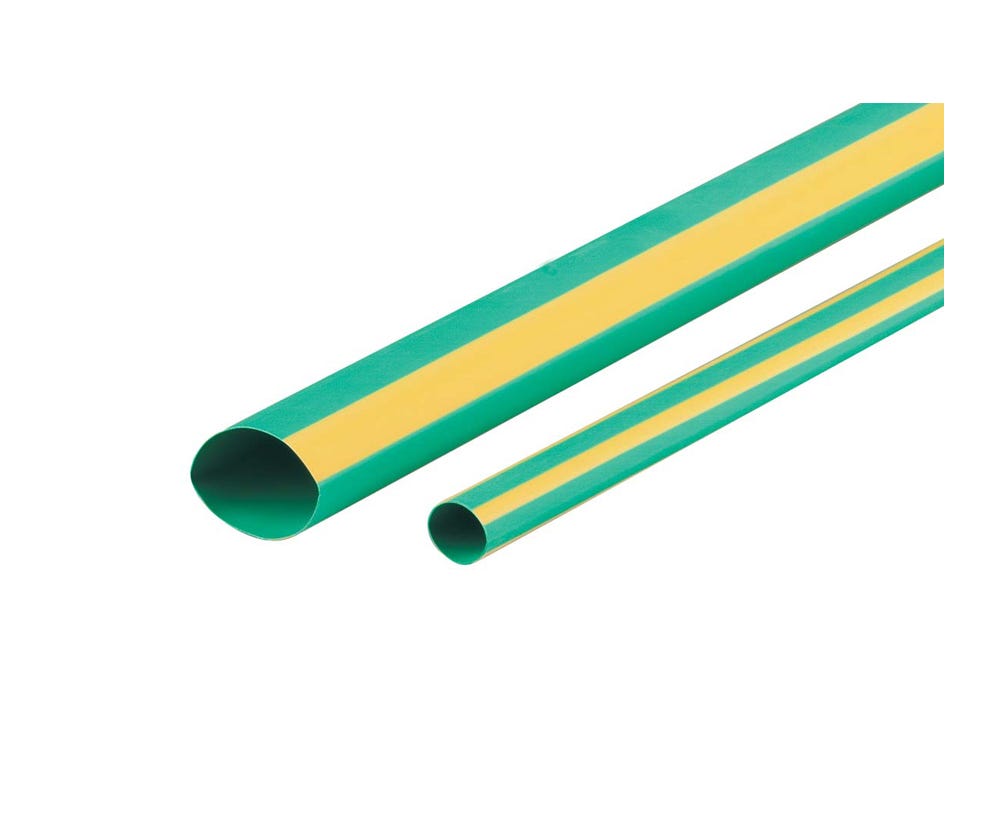

The CABAC XLP10YG-5M thin wall heat shrink tubing provides a dependable solution for insulating, protecting, and colour coding electrical conductors across residential, commercial, and industrial applications. Designed for electricians and electrical professionals, this yellow/green heat shrink tubing improves conductor identification while delivering long-lasting electrical and mechanical protection.

Manufactured from electron beam cross-linked polyolefin, the XLP range offers excellent durability and flexibility. When heat is applied, the tubing shrinks to approximately 50% of its original diameter, creating a secure fit around cables and components. This makes it ideal for repairing insulation, protecting cable joints, and improving installation reliability.

Flame Retardant Design Built for Harsh Environments

CABAC XLP thin wall heat shrink tubing is engineered to withstand demanding electrical environments. The flame retardant material provides added safety, while resistance to common fluids, solvents, abrasion, and UV radiation helps maintain performance in challenging conditions.

With a continuous operating temperature range of -75°C to +135°C and a voltage rating of 600V, this heat shrink tubing is suitable for a wide range of electrical applications. The yellow/green colour provides easy visual identification for protective earth conductors and helps installers maintain organised, compliant wiring systems.

Trade-Ready Heat Shrink Solution for Electrical Professionals

Designed with trade efficiency in mind, the CABAC XLP10YG-5M comes supplied in a convenient 5-metre box, making it easy to store and access during electrical installations. Compatible with CABAC heat guns, the tubing delivers quick and consistent shrinking for professional results.

Available in multiple sizes and colours, the CABAC XLP range gives electricians a versatile solution for cable protection, insulation, and identification requirements.

Key Specs

• Brand: CABAC
• Model: XLP10YG-5M
• Type: Thin wall heat shrink tubing
• Colour: Yellow/Green
• Pre-shrink diameter: 9.5mm
• After-shrink diameter: 4.8mm
• Recovered wall thickness: 0.62mm
• Length: 5 metres
• Material: Electron beam cross-linked polyolefin
• Operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Water absorption: 0.15% max
• Standards compliance: UL224 VW1, ASTM D2671
• Glue lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical installations requiring conductor identification
• Switchboard wiring and electrical panel assembly
• Cable repairs, maintenance, and protection applications
• Commercial and industrial electrical projects
• Installations exposed to moisture, abrasion, solvents, and UV conditions
• Trade professionals needing compliant heat shrink tubing stocked for everyday use
