Cabac HEATSHRINK THIN WALL 9.5MM WHITE 5M BOX XLP10WH-5M

Description

Reliable Electrical Insulation and Cable Protection

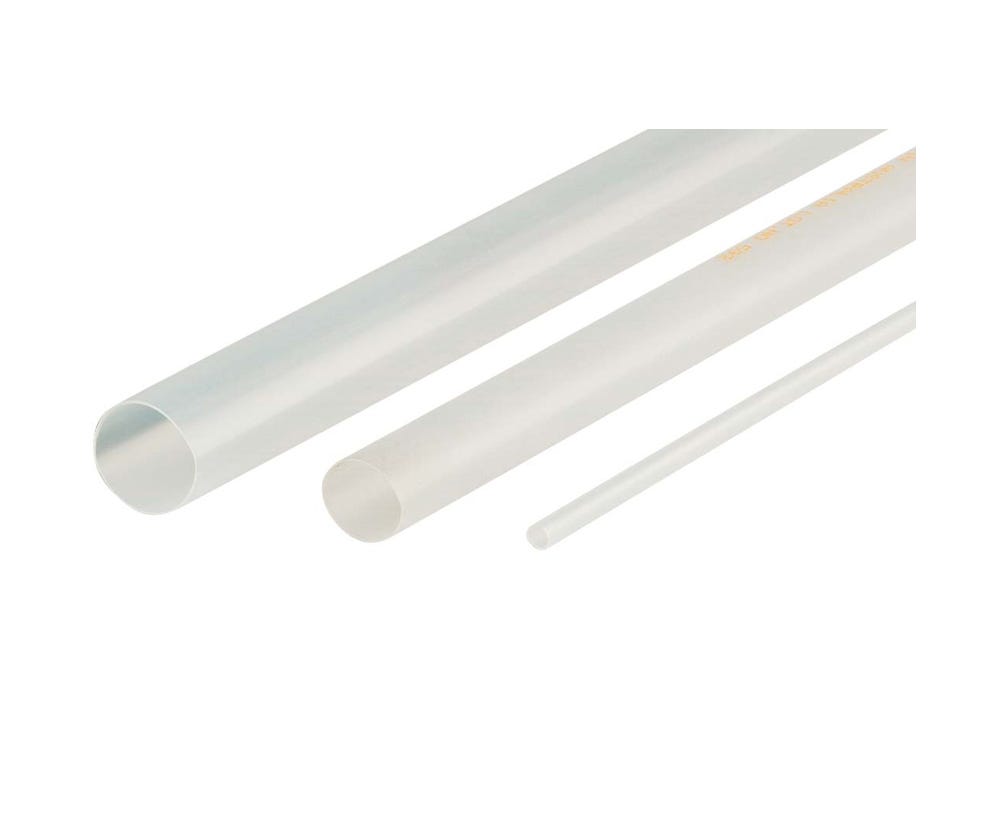

The CABAC XLP10WH-5M Thin Wall Heat Shrink Tubing provides professional-grade insulation, protection, and conductor identification for electrical installations. Designed from flame retardant electron beam cross-linked polyolefin, this white heat shrink tubing delivers reliable performance across residential, commercial, and industrial applications.

With a pre-shrink diameter of 9.5mm and an after-shrink diameter of 4.8mm, the tubing reduces to approximately 50% of its original size when heated, creating a secure and tight-fitting protective layer around cables, terminals, and conductors. The thin wall construction allows for easy installation while maintaining excellent electrical insulation and mechanical protection.

Durable Performance for Demanding Electrical Applications

Built to withstand challenging environments, CABAC XLP heat shrink tubing offers resistance against common fluids, solvents, abrasion, and UV exposure. Its flexible polyolefin construction helps protect electrical connections from moisture, wear, and external damage while maintaining long-term reliability.

The tubing operates continuously between -75°C and +135°C and features strong mechanical properties, including a tensile strength of 10.4 MPa and elongation at break of 400%. With a voltage rating of 600V and breakdown voltage of 25 kV/mm wall thickness, it provides dependable insulation for a wide range of electrical applications.

Trade-Ready Heat Shrink Solution from CABAC

CABAC XLP10WH-5M is manufactured to meet recognised industry requirements, including UL224 VW1 certification and ASTM D2671 compliance. Its white colour makes it ideal for cable identification, organisation, and professional finishing in electrical projects.

Available in a range of sizes and colours, the XLP heat shrink range gives electricians a versatile solution for multiple installation requirements. For best results, use with a CABAC heat gun to achieve consistent shrinking and secure protection.

Key Specs

• Brand: CABAC
• Model: XLP10WH-5M
• Product Type: Thin Wall Heat Shrink Tubing
• Colour: White
• Pre-shrink Diameter: 9.5mm
• After-shrink Diameter: 4.8mm
• Recovered Wall Thickness: 0.62mm
• Length: 5m box
• Material: Electron Beam Cross Linked Polyolefin
• Voltage Rating: 600V
• Continuous Operating Temperature: -75°C to +135°C
• Shrink Temperature: Above 105°C
• Flame Retardant: Yes
• Glue Lined: No
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Residential electrical installations and repairs
• Commercial and industrial wiring applications
• Cable identification and colour coding
• Protecting terminals, joints, and electrical connections
• Maintenance teams needing durable electrical protection products
• Switchboard and control panel assembly work
