Cabac HEATSHRINK THIN WALL 9.5MM RED XLP10RD x 50

Description

Reliable Electrical Insulation and Cable Protection

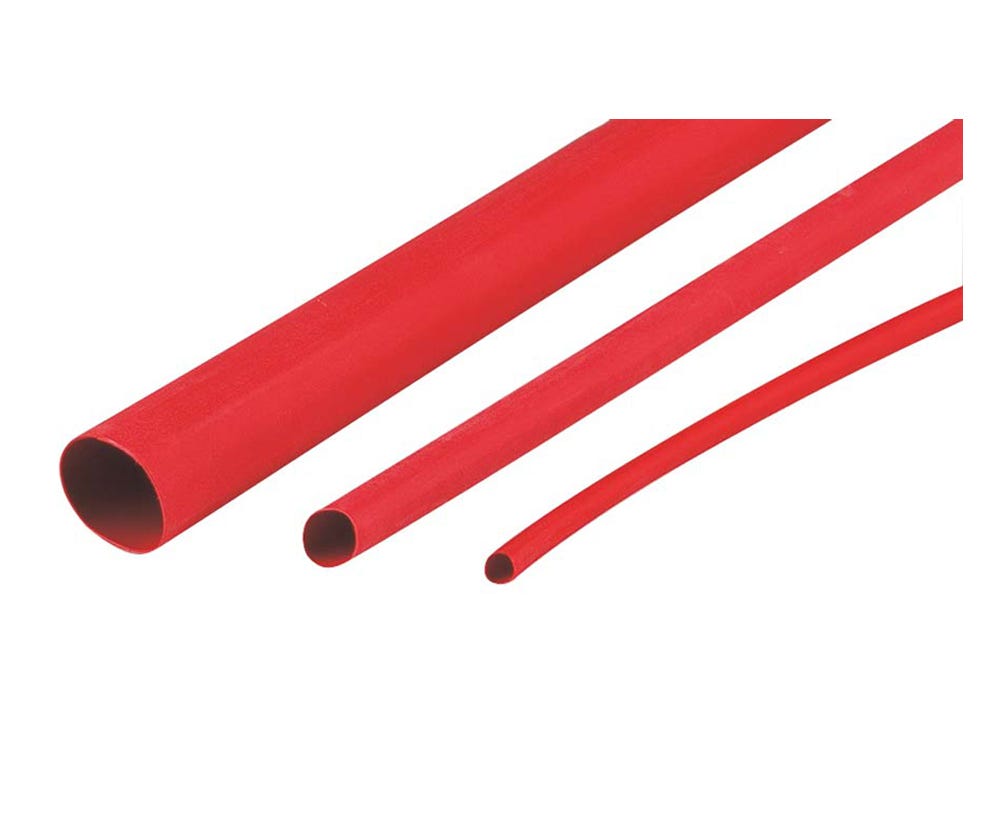

The CABAC XLP10RD thin wall heat shrink tubing is designed to provide dependable insulation, protection, and colour identification for electrical conductors. Manufactured from flame-retardant electron beam cross-linked polyolefin, this red heat shrink sleeve delivers a secure fit around wires, terminals, and cable joints after heat application.

With a 9.5mm pre-shrink diameter and a 4.8mm recovered diameter, the tubing provides a 2:1 shrink ratio that allows it to conform tightly to different cable sizes. Its flexible construction makes installation simple while maintaining excellent mechanical protection against abrasion, impact, and everyday electrical environments.

Trade-Grade Performance for Electrical Applications

Built for professional electrical work, the CABAC XLP range offers reliable performance across residential, commercial, and industrial applications. The tubing operates continuously between -75°C and +135°C and withstands exposure to common fluids, solvents, and moisture.

The red colour provides easy conductor identification, helping electricians organise wiring systems and improve installation efficiency. With a voltage rating of 600V and strong dielectric performance, this heat shrink tubing is suitable for protecting electrical connections and components where insulation integrity is essential.

Certified Quality for Professional Installations

CABAC XLP heat shrink tubing is manufactured to meet recognised international standards, including UL224 VW1 and ASTM D2671 compliance. The cross-linked polyolefin material delivers excellent tensile strength, flexibility, and resistance to environmental conditions.

Supplied in a 50m roll, this thin wall heat shrink provides a practical solution for electrical contractors requiring reliable stock for ongoing projects. Whether used for cable repairs, wire marking, terminal insulation, or general electrical protection, CABAC heat shrink helps tradespeople achieve clean and durable installations.

Key Specs

• Brand: CABAC
• Model: XLP10RD
• Colour: Red
• Type: Thin wall heat shrink tubing
• Pre-shrink diameter: 9.5mm
• After-shrink diameter: 4.8mm
• Recovered wall thickness: 0.62mm
• Length: 50m roll
• Shrink ratio: 2:1
• Operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Water absorption: 0.15% max
• Compliance: UL224 VW1, ASTM D2671
• Glue lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors working on residential and commercial installations
• Maintenance teams performing cable repairs and upgrades
• Colour coding and identification of electrical conductors
• Protecting wires, terminals, and cable joints from abrasion and environmental exposure
• Industrial electrical applications requiring durable heat shrink protection
