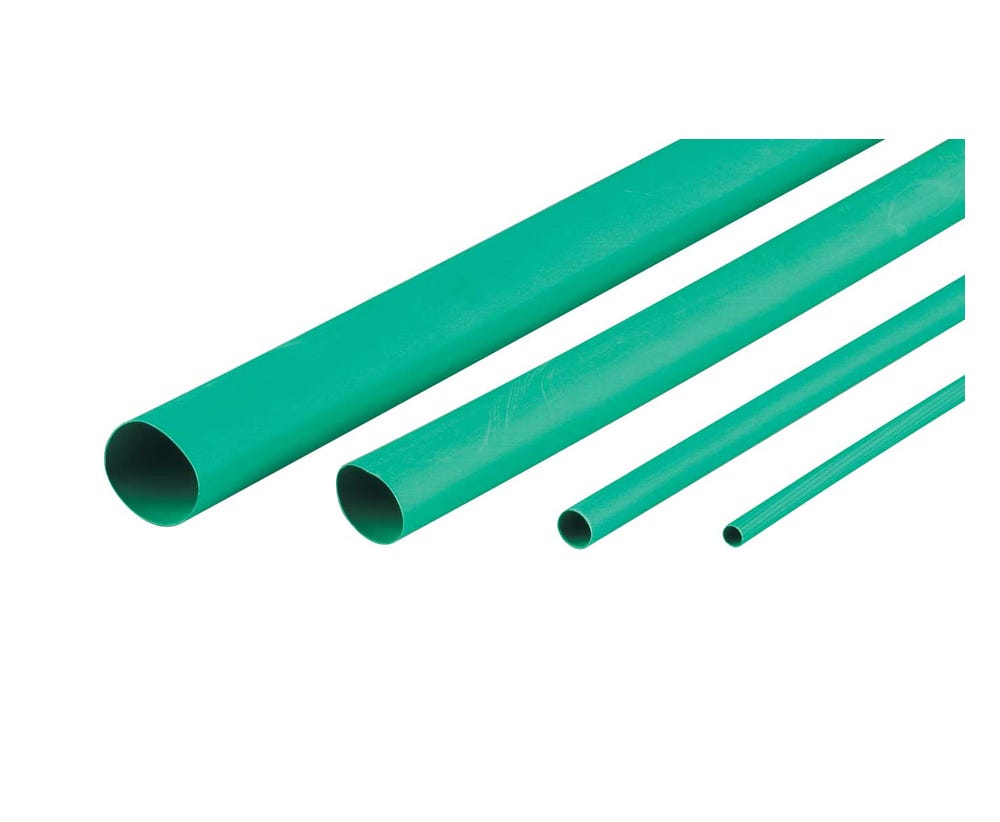

Cabac HEATSHRINK THIN WALL 9.5MM GREEN XLP10G x 50

Description

CABAC 9.5mm Green Thin Wall Heat Shrink Tubing for Electrical Protection

The CABAC XLP10G thin wall heat shrink tubing provides reliable insulation, protection, and colour identification for electrical conductors across residential, commercial, and industrial applications. Manufactured from flame-retardant electron beam cross-linked polyolefin, this 9.5mm green heat shrink tubing delivers excellent electrical and mechanical protection while helping electricians maintain neat, organised installations.

Designed with a 2:1 shrink ratio, the tubing reduces from a 9.5mm pre-shrink diameter to approximately 4.8mm after heat application, creating a secure protective layer around cables, terminals, and connections. The flexible construction allows easy installation while maintaining durability in demanding electrical environments.

Durable Heat Shrink Protection for Trade Applications

CABAC XLP thin wall heat shrink tubing is engineered to withstand harsh conditions commonly found in electrical installations. It provides resistance against abrasion, impact, UV exposure, common fluids, and solvents, helping protect conductors from environmental damage and premature wear.

With a continuous operating temperature range of -75°C to +135°C and a voltage rating of 600V, this heat shrink solution is suitable for a wide range of electrical and associated industry applications. The green colour also assists with conductor identification, improving installation accuracy and maintenance efficiency.

Certified Polyolefin Construction for Reliable Performance

Manufactured using high-energy electron beam cross-linking technology, CABAC XLP tubing delivers consistent shrink performance and long-term durability. When heated above 105°C, the tubing contracts tightly around the application area, providing dependable insulation and protection.

This CABAC heat shrink tubing complies with UL224 VW1 and ASTM D2671 standards, giving electrical professionals confidence when selecting materials for compliant installations. It is supplied in a practical 50m roll, making it ideal for trade environments requiring dependable stock availability.

Key Specs

• Product Colour: Green
• Pre-Shrink Diameter: 9.5mm
• After-Shrink Diameter: 4.8mm
• Recovered Wall Thickness: 0.62mm
• Length: 50m roll
• Shrink Ratio: 2:1
• Continuous Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break Point: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% max
• Flame Retardant: Yes
• Glue Lined: No
• Standards Compliance: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring dependable cable insulation materials
• Electrical contractors completing residential, commercial, and industrial installations
• Maintenance teams performing cable repairs and identification work
• Conductor colour coding and electrical organisation applications
• Protecting cables, terminals, and connections from abrasion and environmental exposure
• Trade workshops requiring bulk heat shrink tubing supply
