Cabac HEATSHRINK THIN WALL 9.5MM BLACK 5M BOX XLP10BK-5M

Description

Reliable Electrical Insulation and Cable Protection

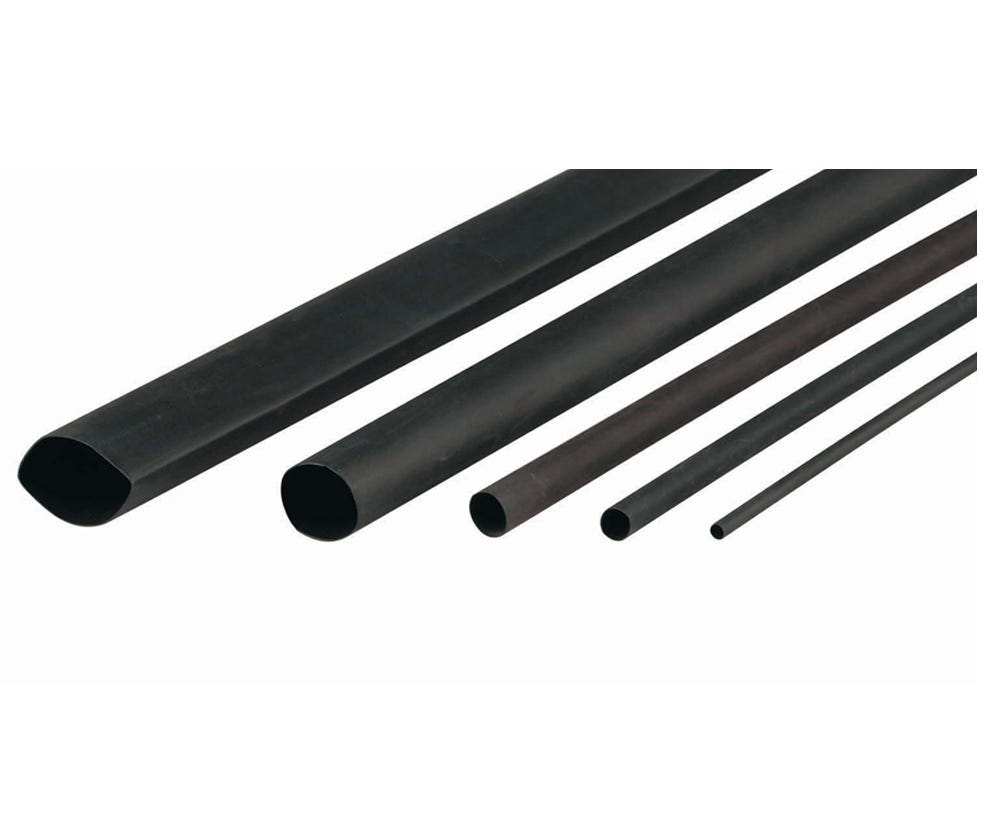

The CABAC XLP10BK-5M Thin Wall Heat Shrink Tubing is a versatile electrical protection solution designed for insulating, protecting, and colour coding conductors across residential, commercial, and industrial applications. Made from flame-retardant polyolefin, this black heat shrink tubing delivers dependable electrical insulation while helping protect cables against abrasion, impact, and environmental exposure.

Using advanced Electron Beam Cross Linked technology, the CABAC XLP range provides excellent mechanical strength and dimensional stability. When heated above 105°C, the tubing shrinks to approximately 50% of its original diameter, creating a secure and professional fit around wires, terminals, and cable connections.

Durable Performance for Demanding Trade Applications

Built for reliable long-term performance, CABAC black heat shrink tubing offers resistance against common fluids, solvents, and UV radiation. Its flexible thin wall construction allows for easy installation while maintaining strong protection against everyday electrical hazards.

With a continuous operating temperature range from -75°C to +135°C and a 600V voltage rating, this heat shrink sleeve is suitable for various electrical and maintenance applications. It is commonly used by electricians for cable repairs, insulation reinforcement, wire identification, and protection of electrical connections.

The XLP series is UL certified and complies with recognised industry standards, including UL224 VW1 and ASTM D2671, providing confidence for professional electrical installations.

Trade-Ready Heat Shrink Solution from CABAC

Designed for electricians and contractors, the CABAC XLP10BK-5M comes supplied as a convenient 5-metre box, making it easy to store and access during installation work. Its compact packaging suits trade vehicles, workshops, and electrical tool storage systems.

Available in multiple sizes and colours, the XLP range provides flexible options for different cable protection requirements. For best results, CABAC recommends using compatible heat guns such as HG2232 or HG2233 for consistent shrinking performance.

Key Specs

• Brand: CABAC
• Model: XLP10BK-5M
• Product Type: Thin wall heat shrink tubing
• Colour: Black
• Pre-shrink diameter: 9.5mm
• After-shrink diameter: 4.8mm
• Recovered wall thickness: 0.62mm
• Length: 5m box
• Material: Electron Beam Cross Linked Polyolefin
• Voltage rating: 600V
• Continuous operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Water absorption: 0.15% maximum
• Compliance: UL224 VW1, ASTM D2671
• Glue lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors working on residential, commercial, and industrial projects
• Maintenance teams performing cable repairs and protection work
• Wire identification and conductor protection applications
• Electrical installations requiring abrasion and UV resistance
• Workshops and trade vehicles needing compact heat shrink supplies
