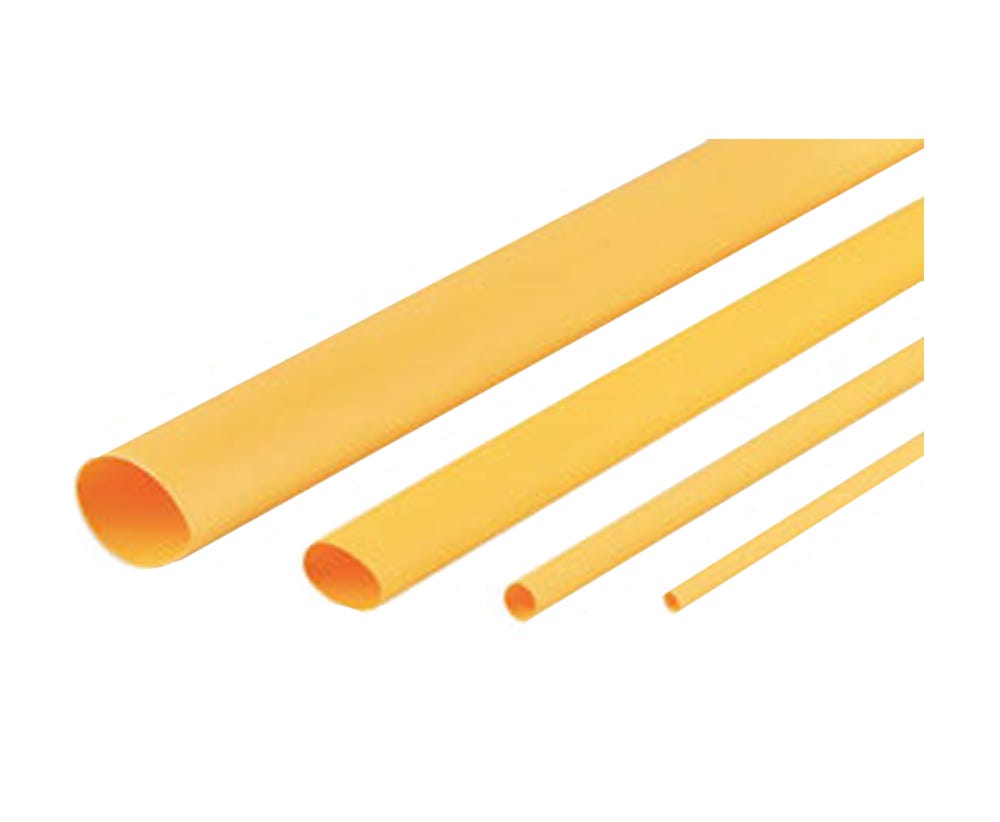

Cabac HEATSHRINK THIN WALL 76MM YELLOW XLP76Y x 25

Description

Durable Polyolefin Construction for Long-Term Performance

CABAC XLP heat shrink tubing is manufactured using electron beam cross-linked polyolefin technology, improving durability, flexibility, and resistance to environmental conditions. The tubing maintains performance across a wide operating temperature range from -75°C to +135°C, making it suitable for demanding electrical installations.

The yellow finish allows for easy conductor identification and colour coding, helping electricians organise wiring systems and improve installation clarity. Its flame retardant properties and UV resistance make it ideal for applications requiring dependable insulation protection.

Certified Electrical Insulation for Trade Applications

The CABAC XLP76Y heat shrink sleeve is designed to meet professional electrical requirements, offering a voltage rating of 600V and breakdown voltage performance of 25kV/mm wall thickness. It complies with recognised standards including UL224 VW1 and ASTM D2671, providing confidence for electrical contractors working on compliant installations.

The tubing is suitable for insulating cable connections, terminals, and electrical components where protection from moisture, abrasion, and external contaminants is required.

Convenient 25m Roll for Electrical Contractors

Supplied as a 25m roll, CABAC yellow thin wall heat shrink tubing provides a practical quantity for regular trade use. It can be installed using a suitable heat gun, such as CABAC HG2232 or HG2233, to achieve consistent shrink performance.

Key Specs

• Brand: CABAC
• Model: XLP76Y
• Colour: Yellow
• Material: Electron beam cross-linked polyolefin
• Wall Type: Thin wall
• Pre-shrink diameter: 76.2mm
• After-shrink diameter: 38.1mm
• Recovered wall thickness: 1.2mm
• Length: 25m roll
• Shrink ratio: 2:1
• Shrink temperature: >105°C
• Operating temperature: -75°C to +135°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Water absorption: 0.15% max
• Compliance: UL224 VW1, ASTM D2671
• Glue lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors completing residential, commercial, and industrial installations
• Cable identification and colour coding applications
• Protecting electrical joints, terminals, and conductors
• Maintenance teams requiring durable heat shrink solutions
• Trade professionals needing bulk 25m heat shrink tubing rolls
