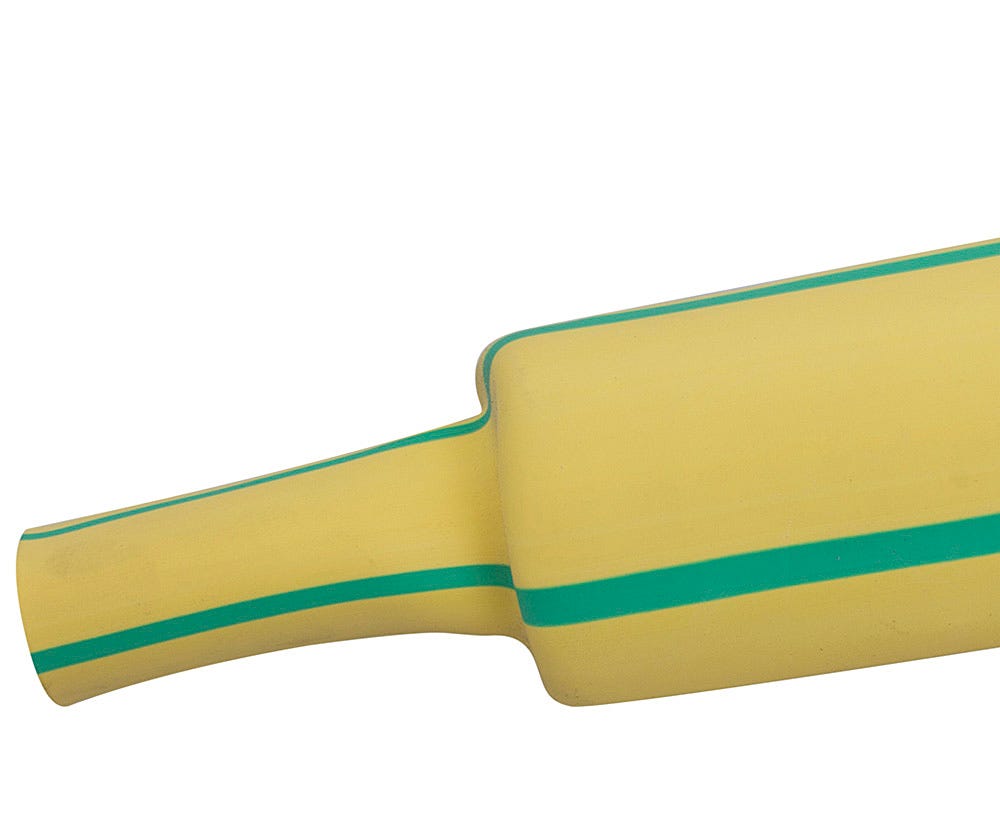

Cabac HEATSHRINK THIN WALL 76MM YELLOW GREEN XLP76YG x 25

Description

Reliable Electrical Insulation and Conductor Protection

The CABAC XLP76YG Thin Wall Heat Shrink Tubing provides a dependable solution for insulating, protecting, and colour coding electrical conductors across residential, commercial, and industrial applications. Designed from flame-retardant cross-linked polyolefin, this yellow/green heat shrink tubing delivers reliable electrical and mechanical protection while helping electricians maintain organised and professional installations.

With a pre-shrink diameter of 76.2mm and a recovered diameter of 38.1mm, the tubing contracts to approximately half its original size when heated, creating a secure fit around cables and components. The thin wall design allows for flexible installation while maintaining excellent protection against abrasion, impact, and environmental exposure.

Durable Polyolefin Construction for Demanding Applications

Manufactured using high-energy electron beam cross-linking technology, CABAC XLP heat shrink tubing provides enhanced material stability and performance under demanding trade conditions. The tubing withstands continuous operating temperatures from -75°C to +135°C and offers resistance against common fluids, solvents, and UV radiation.

The yellow/green colour makes this tubing ideal for conductor identification and electrical colour coding requirements. Its flame-retardant properties and reliable insulation performance make it suitable for a wide range of electrical and associated industry applications.

CABAC XLP tubing is UL224 VW1 certified and complies with ASTM D2671 standards, giving electrical professionals confidence in its quality, safety, and long-term performance.

Trade-Ready Heat Shrink Solution for Electrical Professionals

Supplied as a 25m roll, the CABAC XLP76YG heat shrink tubing provides convenient stock availability for electricians, contractors, and maintenance teams working across multiple projects. It can be installed using a suitable heat gun to achieve consistent shrink recovery and professional results.

Available in multiple sizes and colours, CABAC XLP heat shrink tubing is a practical choice for electrical insulation, cable protection, repairs, and identification tasks. iSupply Electrical provides trade professionals with access to quality electrical components, competitive pricing, and reliable supply solutions.

Key Specs

• Brand: CABAC
• Model: XLP76YG
• Colour: Yellow/Green
• Material: Electron Beam Cross Linked Polyolefin
• Type: Thin Wall Heat Shrink Tubing
• Pre-shrink Diameter: 76.2mm
• After-shrink Diameter: 38.1mm
• Recovered Wall Thickness: 1.2mm
• Length: 25m roll
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Breakdown Voltage: 25kV/mm wall thickness
• Tensile Strength: 10.4MPa
• Elongation at Break: 400%
• Longitudinal Shrinkage: <5%
• Water Absorption: 0.15% max
• Compliance: UL224 VW1, ASTM D2671
• Glue Lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors completing residential, commercial, and industrial installations
• Maintenance teams performing cable repairs and protective sleeving applications
• Conductor identification and colour coding requirements
• Protecting cables against abrasion, fluids, solvents, and UV exposure
• Electrical projects requiring compliant and trade-quality heat shrink solutions
