Cabac HEATSHRINK THIN WALL 76MM WHITE XLP76WH x 25

Description

Reliable Cable Insulation and Protection for Electrical Applications

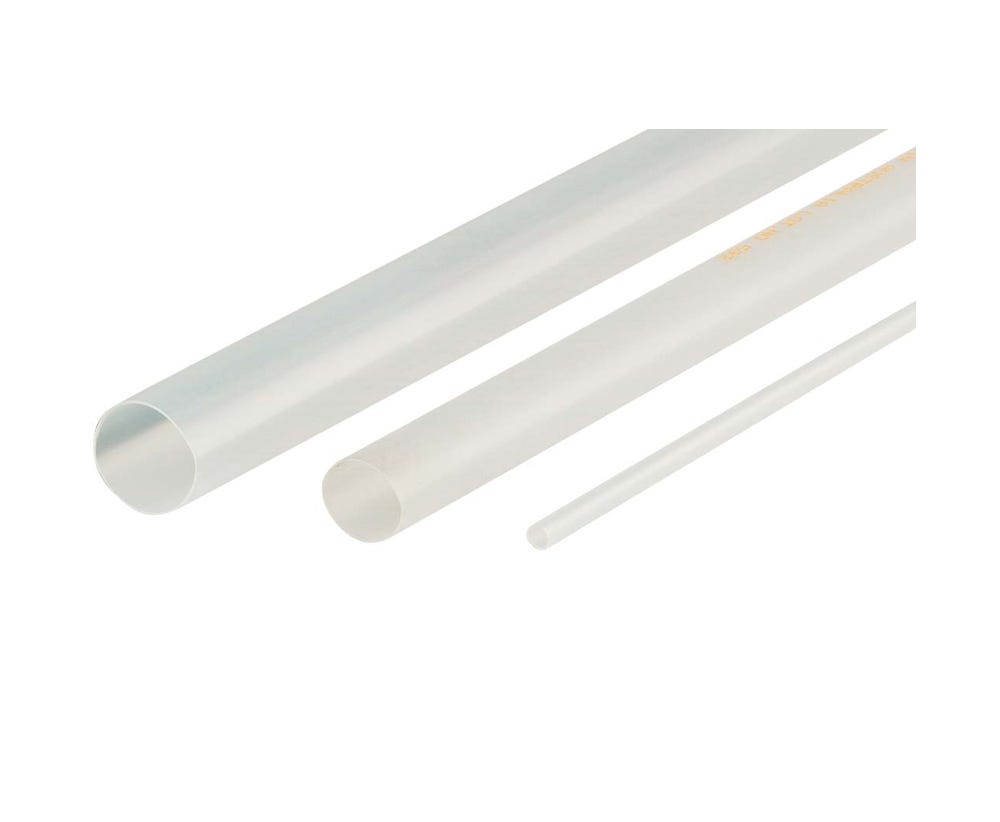

The CABAC XLP76WH Thin Wall Heat Shrink Tubing is a professional-grade solution designed to insulate, protect, and colour code large electrical conductors across residential, commercial, and industrial installations. Manufactured from flame retardant polyolefin, this white heat shrink tubing delivers dependable electrical insulation while protecting cables from abrasion, impact, moisture, and common environmental contaminants.

Using advanced electron beam cross-linking technology, the CABAC XLP range provides excellent mechanical strength and long-term performance. When heated, the tubing contracts to approximately 50% of its original diameter, creating a secure and protective fit around cables, terminals, and electrical connections.

Durable Performance with Certified Protection

Built for demanding electrical environments, the CABAC XLP76WH heat shrink tube offers reliable protection against common fluids, solvents, and UV exposure. Its flexible thin wall design allows easier installation while maintaining excellent insulation properties and durability.

With a continuous operating temperature range of -75°C to +135°C and a 600V voltage rating, this heat shrink tubing is suitable for a wide variety of electrical applications. The tubing is UL certified and complies with recognised standards including UL224 VW1 and ASTM D2671, helping electrical professionals meet quality and safety requirements on every project.

Trade-Ready Heat Shrink Tubing for Professional Installations

Supplied as a 25m roll, the CABAC XLP76WH provides excellent value for electricians and contractors requiring dependable quantities for ongoing jobs. The large diameter design makes it suitable for protecting larger cables, connections, and components where standard heat shrink sizes are unsuitable.

Compatible with CABAC heat guns for efficient installation, this tubing delivers a clean, professional finish while reducing the risk of electrical damage caused by environmental exposure, abrasion, and mechanical stress.

Key Specs

• Brand: CABAC
• Model: XLP76WH
• Colour: White
• Material: Electron Beam Cross Linked Polyolefin
• Pre-shrink diameter: 76.2mm
• After-shrink diameter: 38.1mm
• Recovered wall thickness: 1.2mm
• Length: 25m roll
• Wall type: Thin wall
• Glue lined: No
• Continuous operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Breakdown voltage: 25 kV/mm wall thickness
• Elongation at break: 400%
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors working on commercial and industrial installations
• Cable protection, repair, and identification applications
• Protecting electrical connections from abrasion and environmental exposure
• Maintenance teams requiring durable heat shrink tubing in bulk quantities
• Projects requiring compliant electrical insulation materials
