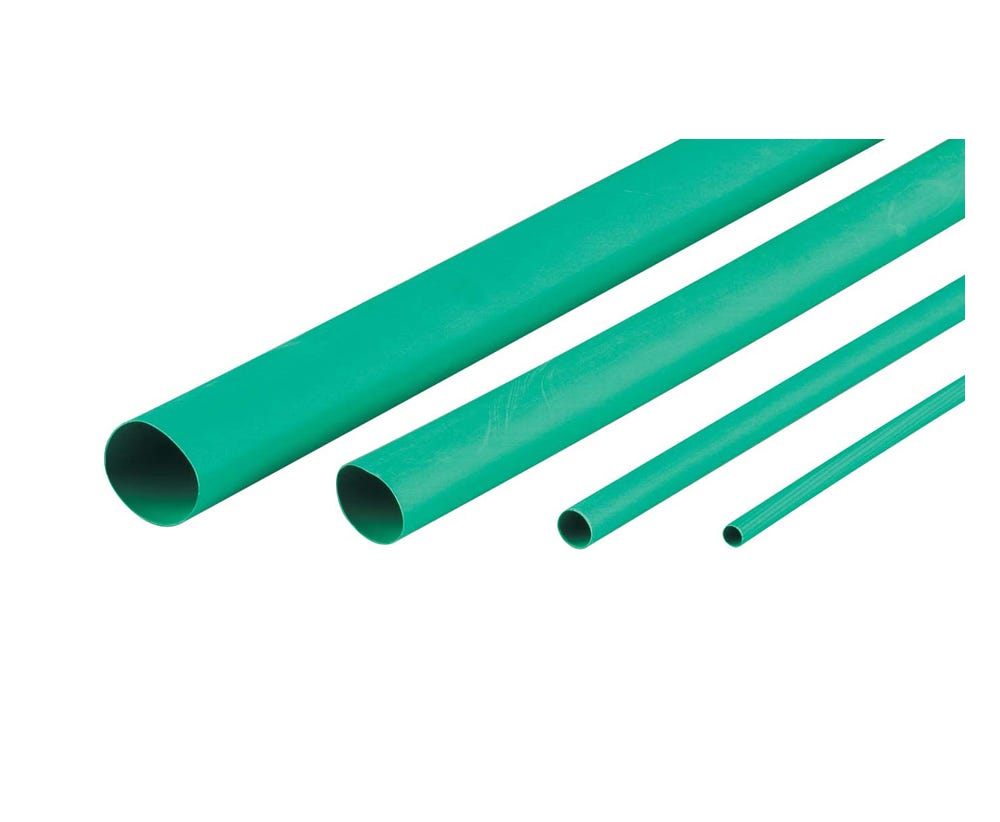

Cabac HEATSHRINK THIN WALL 76MM GREEN XLP76G x 25

Description

Durable Cable Protection for Electrical Applications

The CABAC XLP76G Thin Wall Heat Shrink Tubing provides reliable insulation and mechanical protection for electrical conductors, cables, and components. Designed from flame-retardant polyolefin, this green heat shrink sleeve helps protect against abrasion, impact, UV exposure, and common fluids or solvents found in electrical environments.

Using advanced electron beam cross-linking technology, the XLP range delivers excellent durability while maintaining flexibility for easier installation. When heat is applied, the tubing shrinks to approximately 50% of its original diameter, creating a secure, tight-fitting layer of protection around cables and connections.

With a 76.2mm pre-shrink diameter and 38.1mm recovered diameter, this large-size heat shrink tubing is ideal for electrical installations requiring dependable insulation and colour identification.

Flame Retardant Polyolefin Construction for Reliable Performance

Built for demanding electrical and industrial applications, the CABAC XLP76G heat shrink tube provides long-lasting protection with a continuous operating temperature range of -75°C to +135°C. Its flame-retardant properties and resistance to environmental factors make it suitable for use in commercial, industrial, and maintenance projects.

The tubing offers a 600V voltage rating, high tensile strength, and excellent electrical insulation performance with a breakdown voltage of 25kV/mm wall thickness. It is also resistant to heat shock, moisture absorption, and everyday workplace contaminants.

The green colour finish allows electricians to easily identify and organise conductors while maintaining a professional installation standard.

Trade-Ready Heat Shrink Solution for Electrical Contractors

CABAC XLP76G Thin Wall Heat Shrink Tubing is supplied in a convenient 25m roll, giving electrical contractors and maintenance teams enough material for multiple installation tasks. It is compatible with standard heat application tools, including CABAC heat guns, for efficient installation on-site.

Certified to UL224 VW1 and ASTM D2671 standards, this heat shrink tubing meets the quality expectations required by professional electrical trades. iSupply Electrical provides access to trusted CABAC products with competitive trade pricing, fast delivery, and reliable supply for Australian electricians and contractors.

Key Specs

• Brand: CABAC
• Model: XLP76G
• Colour: Green
• Material: Electron beam cross-linked polyolefin
• Pre-shrink diameter: 76.2mm
• After-shrink diameter: 38.1mm
• Recovered wall thickness: 1.2mm
• Length: 25m roll
• Voltage rating: 600V
• Continuous operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Tensile strength: 10.4MPa
• Elongation at break: 400%
• Breakdown voltage: 25kV/mm wall thickness
• Standards compliance: UL224 VW1, ASTM D2671
• Glue lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors working on commercial and industrial installations
• Maintenance teams protecting cables from abrasion and environmental exposure
• Cable identification and colour coding applications
• Projects requiring flame-retardant and UV-resistant heat shrink tubing
• Trade professionals seeking compliant electrical accessories with dependable performance
