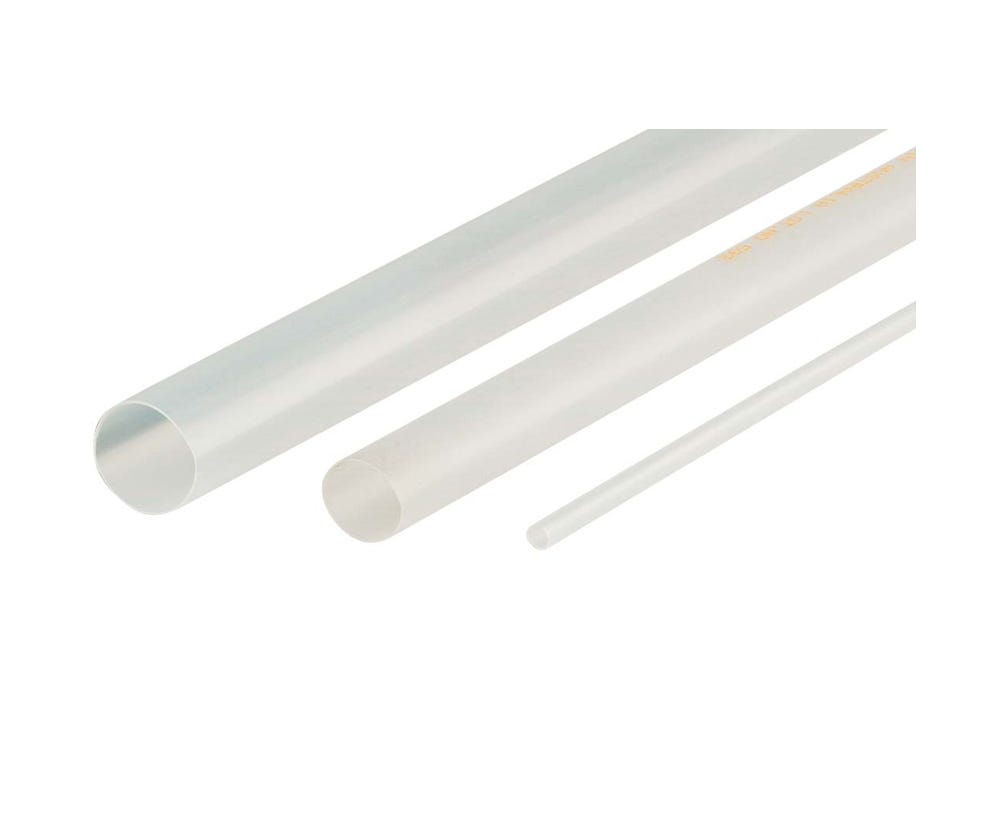

Cabac HEATSHRINK THIN WALL 76MM CLEAR XLP76CL x 25

Description

Reliable Electrical Insulation and Cable Protection

The Cabac XLP76CL Heatshrink Thin Wall tubing provides dependable insulation and protection for electrical and electronic applications. Manufactured from electron beam cross-linked polyolefin, this clear heat shrink tubing delivers excellent flexibility while maintaining durability in demanding trade environments.

Designed with a 2:1 shrink ratio, the tubing can be easily installed using a heat gun or heat tunnel to create a secure fit around cables, connections, and components. Its thin wall construction makes it ideal for applications requiring insulation without unnecessary bulk.

With a continuous operating temperature range of -75°C to +135°C, the XLP76CL provides reliable performance across a wide range of residential, commercial, and industrial electrical installations.

Durable Construction for Professional Applications

Built to withstand challenging working conditions, the Cabac XLP76CL heatshrink offers resistance against common fluids, solvents, abrasion, and mechanical impact. The chemically cross-linked polyolefin material provides long-lasting protection while maintaining flexibility during installation.

This clear variant allows visibility of underlying components while providing insulation and physical protection. Please note that the clear version is not UV resistant, UL listed, or flame retardant, making it suitable for applications where these characteristics are not required.

The tubing conforms to MIL-I-23053/5 Class 2 requirements and provides dependable electrical insulation with a 600V voltage rating and strong dielectric properties.

Trade-Friendly Heatshrink Solution for Electrical Professionals

Supplied as a full reel, the Cabac XLP76CL is ideal for electricians, contractors, and maintenance teams requiring reliable quantities for ongoing projects. Its wide application range includes cable insulation, component protection, wire identification, and mechanical reinforcement.

iSupply Electrical provides access to trade-grade Cabac products with competitive pricing, bulk supply options, and convenient ordering for electrical professionals across Australia. Whether used for installation, repairs, or maintenance work, this heatshrink tubing helps improve job efficiency and deliver professional results.

Key Specifications

• Brand: Cabac
• Model: XLP76CL
• Product Colour: Clear
• Material: Electron beam cross-linked polyolefin
• Pre-shrink diameter: 76.2mm
• After-shrink diameter: 1.2mm
• Shrink ratio: 2:1
• Wall type: Thin wall
• Recovered wall thickness: 38.1mm
• Continuous operating temperature: -75°C to +135°C
• Shrink temperature: Above 100°C
• Voltage rating: 600V
• Tensile strength: 16 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Volume resistivity: 1.0 x 10¹⁴ ohm cm
• Water absorption: 0.15% maximum
• Glue lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors working on commercial and industrial installations
• Maintenance teams performing electrical repairs and upgrades
• Cable protection, insulation, and mechanical reinforcement applications
• Wire and component identification where clear visibility is required
• Bulk electrical projects requiring reel quantities of heatshrink tubing
