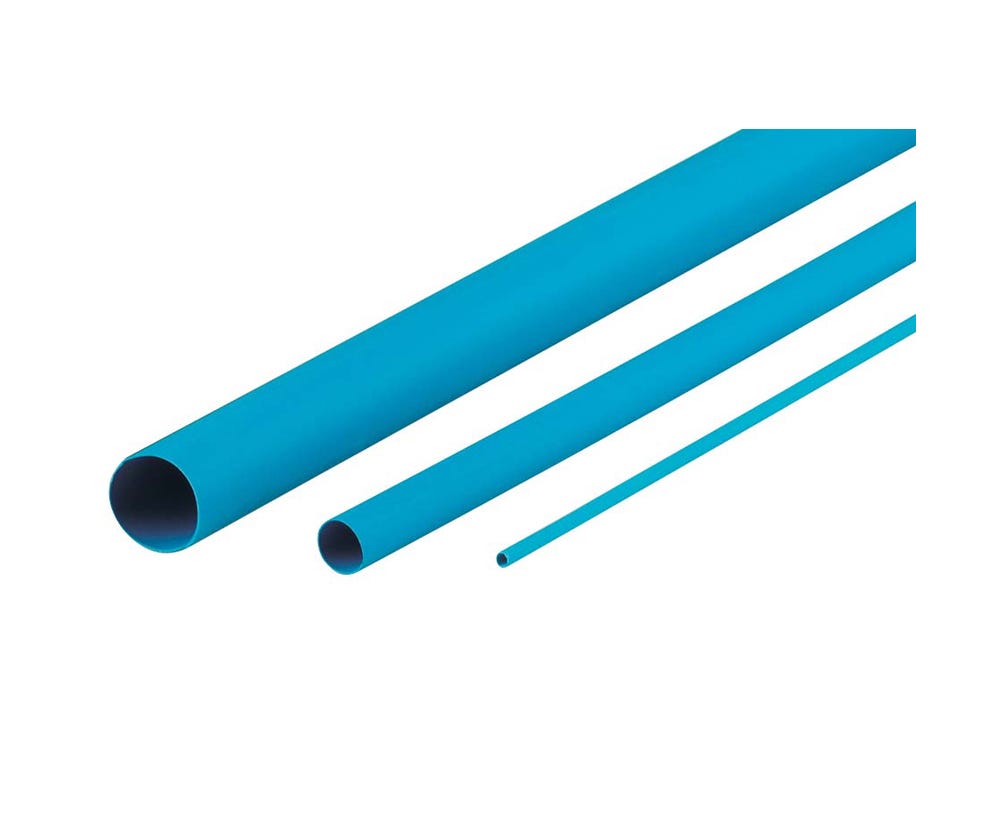

Cabac HEATSHRINK THIN WALL 76MM BLUE XLP76BL x 25

Description

Reliable Electrical Protection with CABAC Thin Wall Heat Shrink

The CABAC XLP76BL Thin Wall Heat Shrink Tubing provides professional-grade insulation, protection, and identification for electrical conductors across residential, commercial, and industrial applications. Made from flame-retardant electron beam cross-linked polyolefin, this blue heat shrink tubing delivers dependable mechanical protection while helping electricians colour code and organise wiring installations.

Designed for versatility, the tubing offers excellent resistance against common fluids, solvents, abrasion, and UV exposure. With a continuous operating temperature range of -75°C to +135°C, it is suitable for environments where long-term durability and reliable insulation performance are required.

Durable Polyolefin Construction for Trade Applications

CABAC XLP heat shrink tubing uses advanced cross-linked polyolefin technology that allows the sleeve to shrink to approximately 50% of its original diameter when heat is applied. This creates a secure, tight-fitting layer around cables, terminals, and electrical components for improved protection against environmental conditions.

The XLP76BL features a pre-shrink diameter of 76.2mm and recovers to 38.1mm after shrinking, making it suitable for larger cable protection and insulation requirements. For consistent installation results, CABAC recommends using compatible heat guns to evenly apply heat and achieve a professional finish.

Certified Performance for Electrical Installations

Built for electrical trade professionals, CABAC thin wall heat shrink complies with recognised industry standards including UL224 VW1 and ASTM D2671. With a 600V voltage rating, high tensile strength, and excellent elongation properties, this tubing provides dependable insulation for a wide range of electrical applications.

Available through iSupply Electrical, CABAC XLP76BL supports electricians and contractors with access to quality electrical components, competitive trade pricing, and convenient ordering options for projects of all sizes.

Key Specs

• Product Colour: Blue
• Type: Thin Wall Heat Shrink Tubing
• Material: Electron Beam Cross Linked Polyolefin
• Pre-Shrink Diameter: 76.2mm
• After-Shrink Diameter: 38.1mm
• Recovered Wall Thickness: 1.2mm
• Length: 25m Roll
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% max
• Compliance: UL224 VW1, ASTM D2671
• Glue Lined: No

Ideal For

• Electrical contractors requiring reliable conductor insulation solutions
• Commercial and industrial wiring installations
• Cable identification and colour coding applications
• Switchboard and panel assembly work
• Maintenance projects requiring abrasion and environmental protection
• Electricians looking for trade-grade heat shrink tubing in bulk rolls
