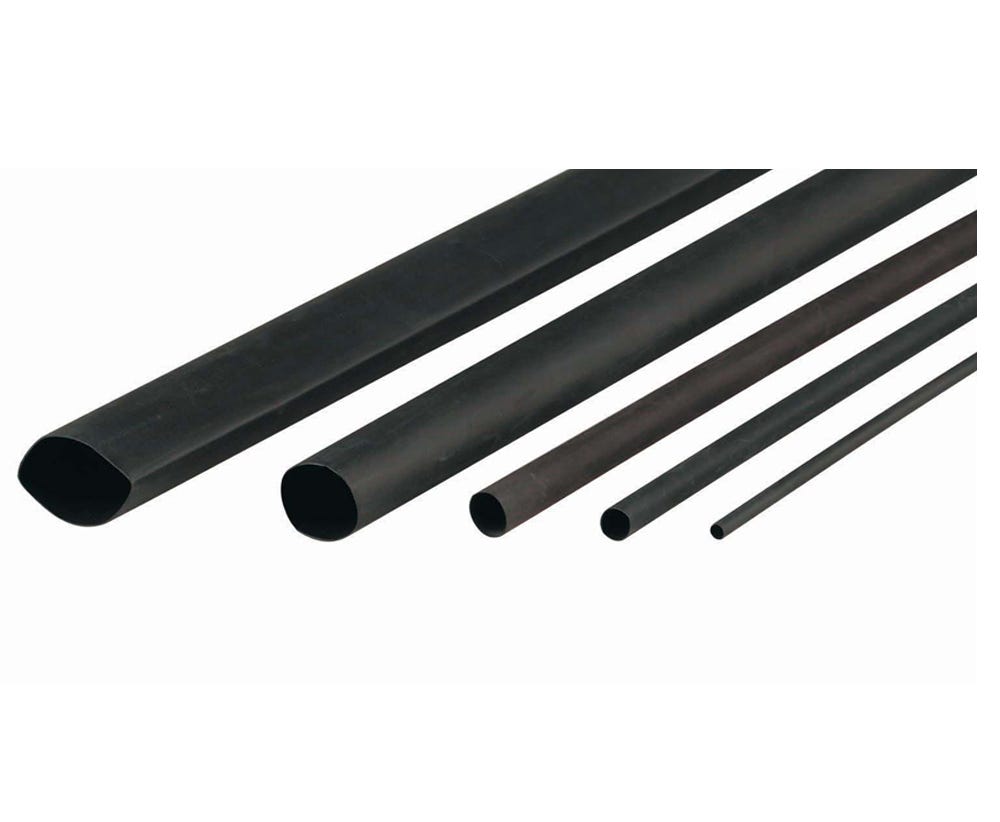

Cabac HEATSHRINK THIN WALL 76MM BLACK XLP76BK x 25

Description

Reliable Electrical Insulation and Cable Protection

The CABAC XLP76BK Thin Wall Heatshrink Tubing provides dependable insulation, protection, and cable identification for electrical applications across residential, commercial, and industrial environments. Designed with a large 76.2mm pre-shrink diameter, this black heat shrink tubing is ideal for protecting oversized conductors, cable joints, and electrical components where durable insulation is required.

Manufactured from electron beam cross-linked polyolefin, the tubing shrinks to approximately 50% of its original diameter when heat is applied, creating a secure and tight-fitting protective layer. This helps protect electrical connections from mechanical damage while improving overall installation reliability.

Flame Retardant Performance for Demanding Applications

Built for professional electrical installations, the CABAC XLP range offers excellent resistance against common fluids, solvents, abrasion, and UV exposure. The flame retardant polyolefin construction provides enhanced safety and long-term performance in demanding environments.

With a continuous operating temperature range of -75°C to +135°C and a 600V voltage rating, this heat shrink tubing is suitable for a wide range of electrical and associated industry applications. The flexible thin wall design allows easier handling and installation while maintaining strong insulation properties.

CABAC XLP heat shrink tubing is UL certified and compliant with recognised standards, including UL224 VW1 and ASTM D2671, ensuring dependable quality for professional electrical work.

Trade-Ready Heat Shrink Solution from CABAC

Supplied as a 25m roll, the CABAC XLP76BK provides excellent coverage for large-scale installations and maintenance requirements. Its black finish offers a clean professional appearance while supporting cable identification and organisation.

Available through iSupply Electrical, this CABAC heat shrink tubing gives electricians and contractors access to trusted electrical protection products with competitive trade pricing, reliable availability, and fast delivery options across Australia.

Whether used for cable repairs, insulation, protection, or electrical assembly work, CABAC XLP76BK delivers the durability and performance required for professional installations.

Key Specs

• Brand: CABAC
• Model: XLP76BK
• Colour: Black
• Material: Electron beam cross-linked polyolefin
• Pre-shrink diameter: 76.2mm
• After-shrink diameter: 38.1mm
• Recovered wall thickness: 1.2mm
• Length: 25m roll
• Voltage rating: 600V
• Operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Water absorption: 0.15% max
• Standards compliance: UL224 VW1, ASTM D2671
• Glue lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors working on commercial and industrial installations
• Maintenance teams performing cable repairs and upgrades
• Protecting large diameter cables, conductors, and electrical connections
• Applications requiring resistance to abrasion, solvents, fluids, and UV exposure
• Trade professionals needing bulk heat shrink tubing for multiple projects
