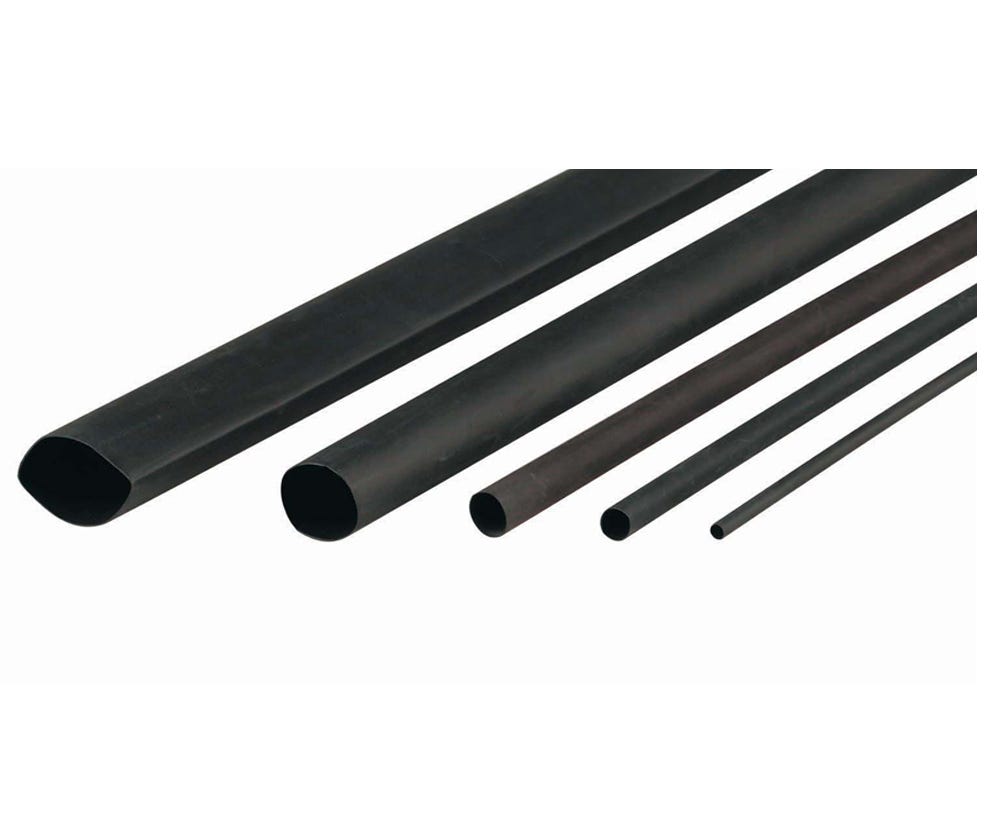

Cabac HEATSHRINK THIN WALL 76MM BLACK 1.2M XLP76BK/4FT

Description

Reliable Electrical Insulation and Cable Protection

The CABAC XLP76BK/4FT Heatshrink Thin Wall Tubing provides dependable insulation, protection, and cable identification for electrical applications across commercial, industrial, and maintenance environments. Designed with flame-retardant polyolefin material, this 76mm black heat shrink tubing creates a secure protective layer around conductors, terminals, and cable joints.

Manufactured using electron beam cross-linked technology, the CABAC XLP range delivers consistent shrink performance when exposed to heat. The tubing reduces to approximately 50% of its original diameter, creating a tight-fitting seal that helps protect electrical components from moisture, abrasion, impact, and environmental exposure.

With a pre-shrink diameter of 76.2mm and a recovered diameter of 38.1mm, this thin wall heat shrink sleeve is suitable for larger cable assemblies where reliable insulation and mechanical protection are required. Its flexible construction allows for easier installation while maintaining long-term durability.

Flame Retardant Design Built for Harsh Environments

The CABAC black heat shrink sleeve is engineered to withstand demanding electrical conditions with excellent resistance against common fluids, solvents, abrasion, and UV radiation. This makes it suitable for installations exposed to outdoor conditions, industrial environments, and areas where additional cable protection is required.

Rated for continuous operation between -75°C and +135°C, the XLP76BK/4FT heat shrink tubing maintains performance across a wide temperature range. The material offers strong electrical insulation properties with a breakdown voltage of 25kV/mm wall thickness and a 600V voltage rating.

CABAC XLP heat shrink tubing complies with recognised standards including UL224 VW1 and ASTM D2671, helping electrical professionals select a dependable solution for quality installations.

Trade-Ready Heat Shrink Solution from CABAC

Designed for electricians, contractors, and maintenance teams, the CABAC XLP76BK/4FT provides a practical solution for cable insulation, repair, bundling, and protection tasks. The 1.2m length offers flexibility for multiple installation requirements while the black finish provides a professional appearance and additional UV stability.

For efficient installation, CABAC recommends using compatible heat guns to achieve consistent shrinking results. Available in multiple sizes and colours, the XLP range provides electricians with a versatile option for cable protection across various applications.

Key Specs

• Brand: CABAC
• Model: XLP76BK/4FT
• Colour: Black
• Material: Electron Beam Cross Linked Polyolefin
• Wall Type: Thin Wall
• Pre-Shrink Diameter: 76.2mm
• After-Shrink Diameter: 38.1mm
• Length: 1.2m
• Recovered Wall Thickness: 1.2mm
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25kV/mm wall thickness
• Water Absorption: 0.15% maximum
• Flame Retardant: Yes
• Glue Lined: No
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Commercial and industrial electrical installations
• Cable repair and protection applications
• Large conductor and cable assembly insulation
• Maintenance teams working in demanding environments
• Projects requiring UV-resistant and flame-retardant heat shrink tubing
• Electrical contractors seeking compliant CABAC accessories
