Cabac HEATSHRINK THIN WALL 6.4MM YELLOW XLP7Y x 50

Description

Reliable Electrical Insulation and Protection

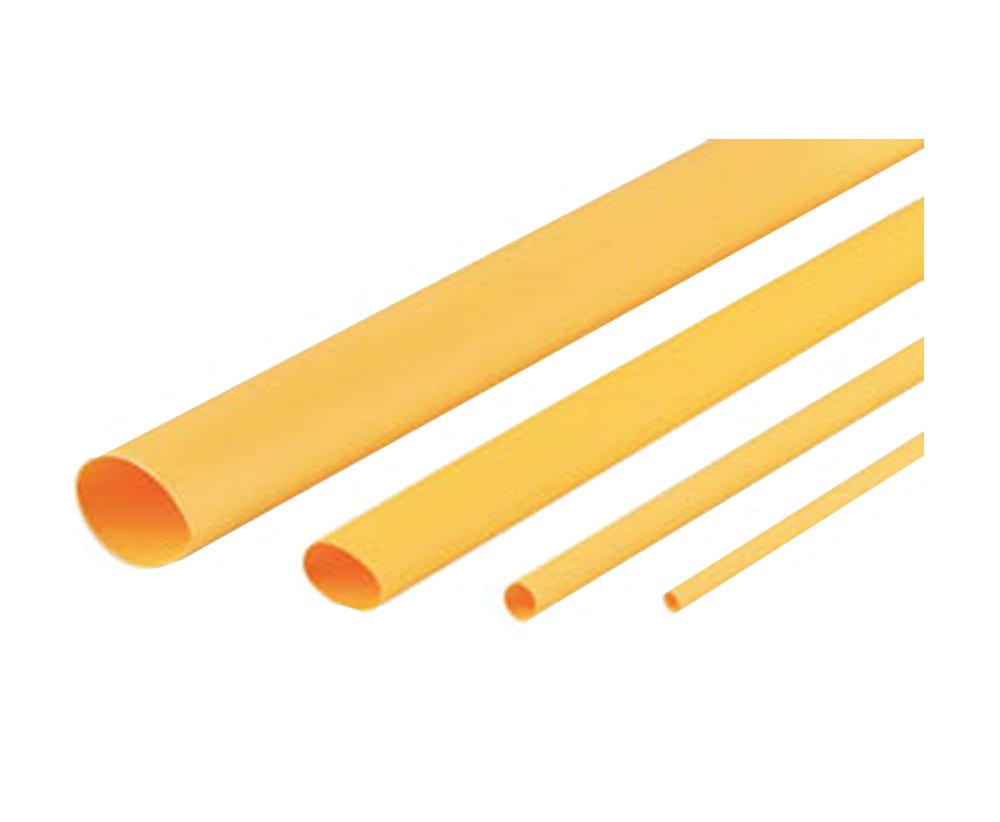

The CABAC XLP7Y Yellow Thin Wall Heat Shrink Tubing provides dependable insulation, protection, and colour coding for electrical conductors across residential, commercial, and industrial applications. Designed from electron beam cross-linked polyolefin, this heat shrink tubing delivers excellent durability while maintaining flexibility for easy installation.

With a pre-shrink diameter of 6.4mm and a recovered diameter of 3.2mm, the tubing contracts to approximately half its original size when heated, creating a secure and tight-fitting protective layer around cables and connections. This makes it ideal for insulating terminals, joints, and exposed conductors while improving cable identification.

Durable Performance for Demanding Electrical Applications

Built for long-term reliability, CABAC XLP heat shrink tubing is flame retardant and resistant to common fluids, solvents, abrasion, and UV exposure. It operates effectively in temperatures ranging from -75°C to +135°C, making it suitable for a wide variety of electrical environments.

The thin wall design offers excellent flexibility without compromising protection, while its 600V voltage rating and 25kV/mm breakdown strength provide reliable electrical insulation performance. The yellow colour helps electricians quickly identify circuits, connections, and wiring systems during installation and maintenance work.

Trade-Ready Heat Shrink Solution from CABAC

CABAC XLP7Y heat shrink tubing is supplied in a 50m roll, providing an efficient solution for electrical contractors requiring consistent material availability for multiple jobs. Compatible with heat guns such as CABAC HG2232 and HG2233, installation is quick and straightforward for professional trade applications.

Certified to UL224 VW1 and ASTM D2671 standards, this heat shrink tubing supports compliant electrical installations while helping contractors achieve neat, organised, and protected cable work.

Key Specs

• Brand: CABAC
• Model: XLP7Y
• Colour: Yellow
• Material: Electron Beam Cross Linked Polyolefin
• Wall Type: Thin Wall
• Pre-Shrink Diameter: 6.4mm
• After-Shrink Diameter: 3.2mm
• Recovered Wall Thickness: 0.56mm
• Length: 50m roll
• Shrink Ratio: Approximately 2:1
• Continuous Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25kV/mm wall thickness
• Water Absorption: 0.15% maximum
• Compliance: UL224 VW1, ASTM D2671
• Glue Lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors completing residential, commercial, and industrial installations
• Cable identification and colour coding applications
• Protecting wire joins, terminals, and electrical connections
• Maintenance teams performing electrical repairs and upgrades
• Projects requiring compliant heat shrink tubing with durable environmental resistance
