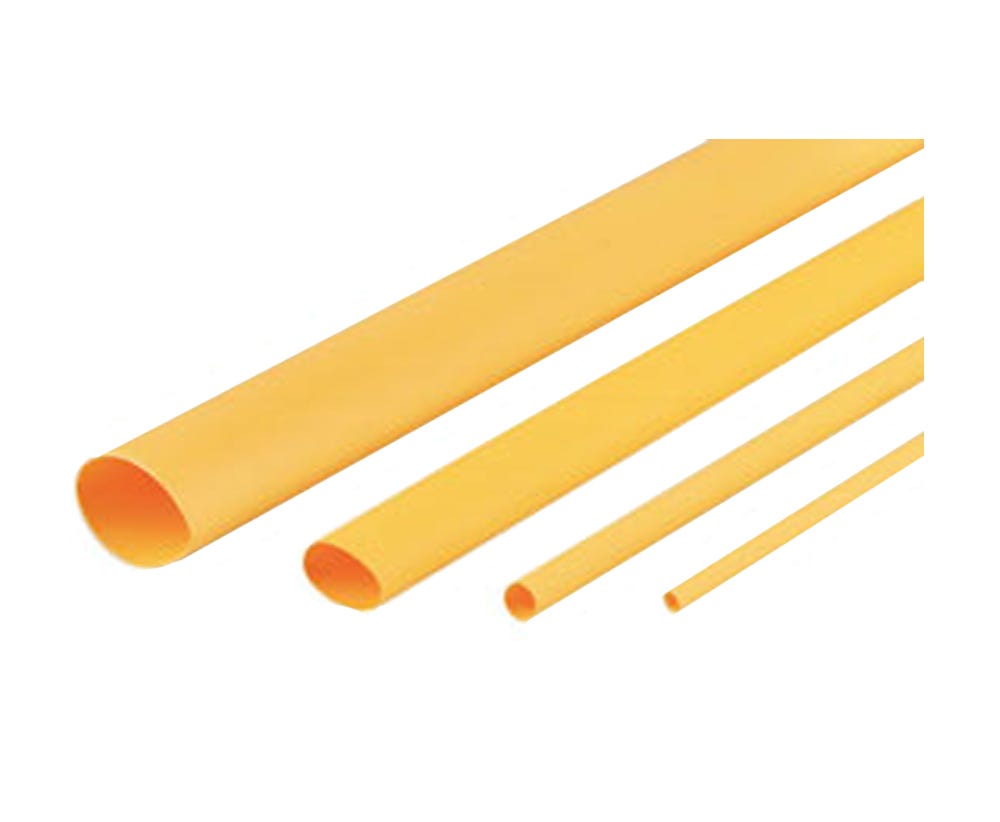

Cabac HEATSHRINK THIN WALL 6.4MM YELLOW 1.2M XLP7Y/4FT

Description

Durable Heat Shrink Tubing for Electrical Insulation and Protection

The CABAC XLP range is engineered to provide dependable insulation and protection for electrical conductors. Manufactured using high-energy electron beam cross-linked polyolefin technology, the tubing maintains its performance under demanding operating conditions.

The yellow colour provides clear conductor identification and supports organised electrical installations, while the flame retardant construction enhances safety in electrical environments. The tubing is also UV resistant, helping maintain long-term reliability when exposed to outdoor conditions.

Certified Performance for Trade and Industrial Applications

CABAC yellow heat shrink tubing is designed to meet recognised electrical standards, including UL224 VW1 and ASTM D2671 compliance. With a continuous operating temperature range from -75°C to +135°C and a 600V voltage rating, it is suitable for various electrical protection requirements.

The tubing offers high tensile strength, excellent elongation, and low water absorption, making it a dependable choice for electrical contractors requiring durable cable insulation materials.

Convenient Electrical Accessory for Professional Installations

Supplied in a practical 1.2m length, the CABAC XLP7Y/4FT is ideal for repairs, maintenance work, cable identification, and new installations. Compatible with standard heat application tools, including CABAC heat guns, it allows electricians to achieve a clean and professional finish efficiently.

Key Specs

• Brand: CABAC
• Product Range: XLP Thin Wall Heat Shrink Tubing
• Colour: Yellow
• Wall Type: Thin wall
• Pre-Shrink Diameter: 6.4mm
• After-Shrink Diameter: 3.2mm
• Shrink Ratio: 2:1
• Length: 1.2m
• Recovered Wall Thickness: 0.56mm
• Material: Electron Beam Cross Linked Polyolefin
• Glue Lined: No
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Breakdown Voltage: 25 kV/mm wall thickness
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors completing residential and commercial installations
• Maintenance technicians performing cable repairs and protection work
• Colour coding and identification of electrical conductors
• Protecting cables against abrasion, solvents, fluids, and UV exposure
• Switchboard, control panel, and electrical equipment applications
