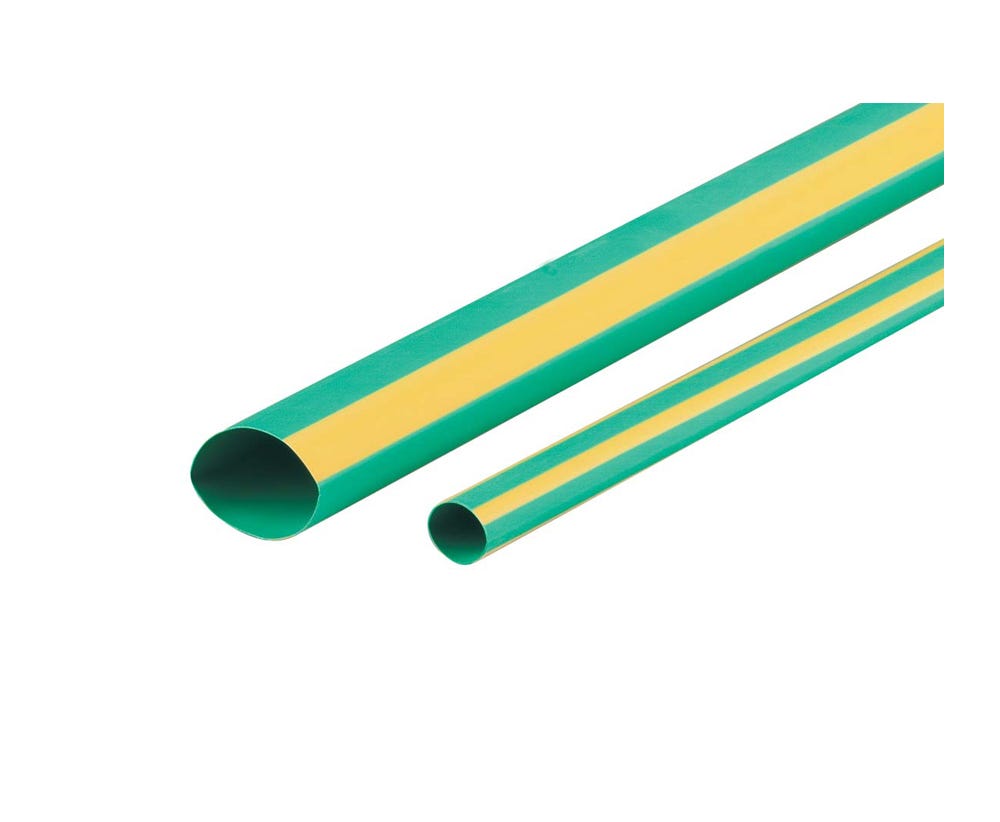

Cabac HEATSHRINK THIN WALL 6.4MM YELGRN 5MBOX XLP7YG-5M

Description

Reliable Electrical Insulation and Conductor Identification

The CABAC XLP7YG-5M Yellow/Green Thin Wall Heat Shrink Tubing provides electricians and contractors with a dependable solution for insulating, protecting, and colour coding electrical conductors. Designed for general-purpose electrical applications, this 6.4mm heat shrink tubing helps create clean and secure installations while providing long-lasting protection against mechanical and environmental factors.

Manufactured from electron beam cross-linked polyolefin, the XLP range delivers excellent durability and flexibility. When heat is applied, the tubing shrinks down to approximately 50% of its original diameter, creating a tight-fitting protective layer around cables and conductors. The yellow/green colour makes it ideal for conductor identification in electrical installations where clear cable marking is required.

Durable Protection for Trade Applications

Built for demanding electrical environments, CABAC thin wall heat shrink tubing offers resistance against common fluids, solvents, abrasion, and UV exposure. Its flame retardant properties provide an additional level of protection, making it suitable for a wide range of residential, commercial, and industrial electrical projects.

With a continuous operating temperature range of -75°C to +135°C and a 600V voltage rating, this heat shrink sleeve delivers reliable performance in various installation conditions. The thin wall design maintains flexibility while providing effective insulation and protection without unnecessary bulk.

Trade-Ready Heat Shrink Solution

The CABAC XLP7YG-5M is supplied as a convenient 5m box, giving electricians easy access to the required length for multiple jobs. Compatible with standard heat application tools, including CABAC heat guns, the tubing is quick and simple to install, helping tradespeople complete electrical work efficiently.

As part of CABAC’s trusted XLP heat shrink range, this product meets recognised international standards including UL224 VW1 and ASTM D2671. Available in multiple sizes and colours, CABAC heat shrink tubing supports professional electrical installations requiring reliable insulation, protection, and identification.

Key Specs

• Brand: CABAC
• Model: XLP7YG-5M
• Colour: Yellow/Green
• Material: Electron Beam Cross Linked Polyolefin
• Pre-shrink diameter: 6.4mm
• After-shrink diameter: 3.2mm
• Recovered wall thickness: 0.56mm
• Length: 5m box
• Wall type: Thin wall
• Glue lined: No
• Continuous operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable conductor identification
• Electrical contractors completing residential and commercial installations
• Switchboard assembly and electrical panel wiring
• Cable insulation and protection applications
• Maintenance professionals repairing or modifying electrical systems
• Industrial electrical projects requiring durable cable protection
• Trade professionals needing compliant heat shrink tubing for everyday jobs
