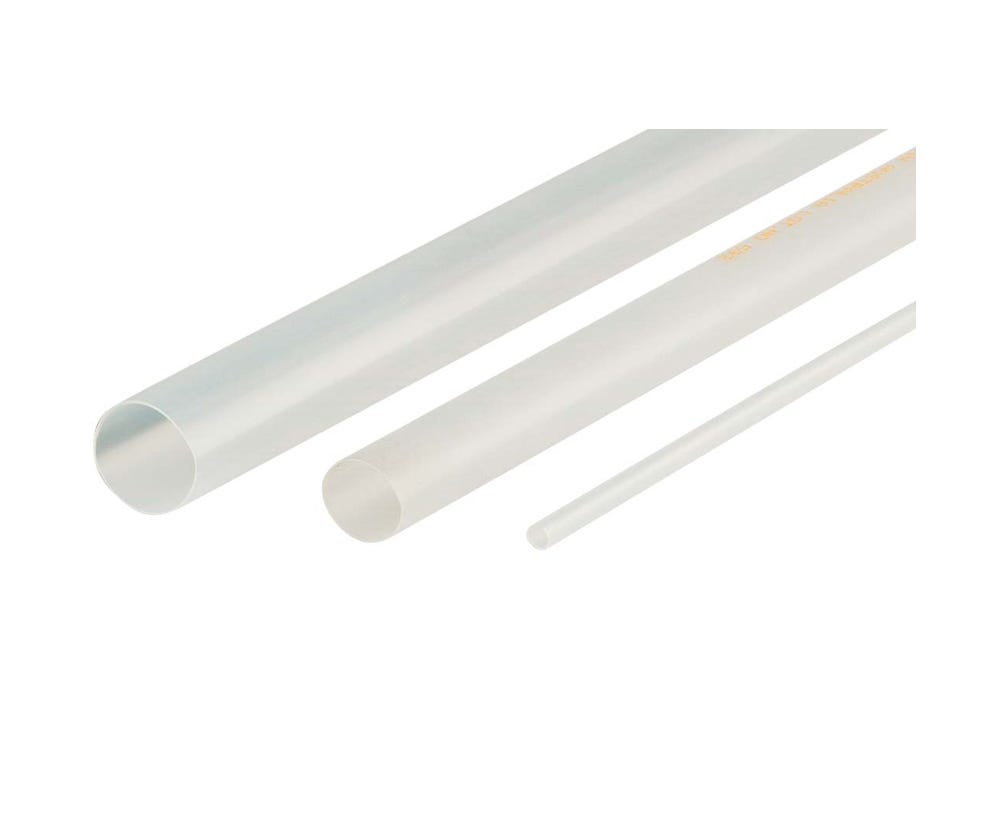

Cabac HEATSHRINK THIN WALL 6.4MM WHITE XLP7WH x 50

Description

Reliable Electrical Insulation and Protection

The CABAC XLP7WH Thin Wall Heat Shrink Tubing provides electricians and contractors with a dependable solution for insulating, protecting, and colour coding electrical conductors. With a 6.4mm pre-shrink diameter and 3.2mm recovered diameter, this white heat shrink tube delivers a secure fit around cables, terminals, and connections after heat application.

Manufactured from electron beam cross-linked polyolefin, the XLP range offers excellent durability while maintaining flexibility for easier installation. The tubing shrinks to approximately 50% of its original size when heated, creating a tight protective layer that helps prevent electrical faults caused by moisture, abrasion, and external contaminants.

Flame Retardant Design for Trade Applications

Designed for professional electrical environments, CABAC white heat shrink tubing combines electrical insulation with mechanical protection. It is flame retardant and resistant to common fluids, solvents, and abrasion, making it suitable for a wide range of residential, commercial, and industrial applications.

The tubing is rated for continuous operation between -75°C and +135°C and provides a voltage rating of 600V. With UL224 VW1 certification and compliance with ASTM D2671 standards, it provides electricians with confidence when installing cable protection solutions that meet recognised industry requirements.

Its white finish is ideal for conductor identification, cable organisation, and neat installation finishes across electrical systems.

Trade-Ready Heat Shrink Solution

CABAC XLP7WH heat shrink tubing is supplied in a convenient 50m roll, helping electrical contractors maintain stock availability for regular installation work. It is compatible with CABAC heat guns, including HG2232 and HG2233 models, for efficient and consistent shrinking during installation.

Available in multiple colours and sizes, the XLP range gives tradespeople a flexible solution for cable insulation, repairs, termination protection, and electrical identification projects. iSupply Electrical provides access to quality CABAC products with competitive trade pricing, fast delivery, and reliable support for Australian electrical professionals.

Key Specs

• Brand: CABAC
• Model: XLP7WH
• Colour: White
• Type: Thin wall heat shrink tubing
• Pre-shrink diameter: 6.4mm
• After-shrink diameter: 3.2mm
• Recovered wall thickness: 0.56mm
• Length: 50m roll
• Material: Electron beam cross-linked polyolefin
• Operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Water absorption: 0.15% max
• Compliance: UL224 VW1, ASTM D2671
• Glue lined: No

Ideal For

• Electrical contractors requiring reliable cable insulation materials
• Cable identification and colour coding applications
• Residential electrical installations and repairs
• Commercial and industrial wiring projects
• Switchboard and panel wiring applications
• Protecting cables from abrasion and environmental exposure
• Maintenance teams needing dependable heat shrink supplies
