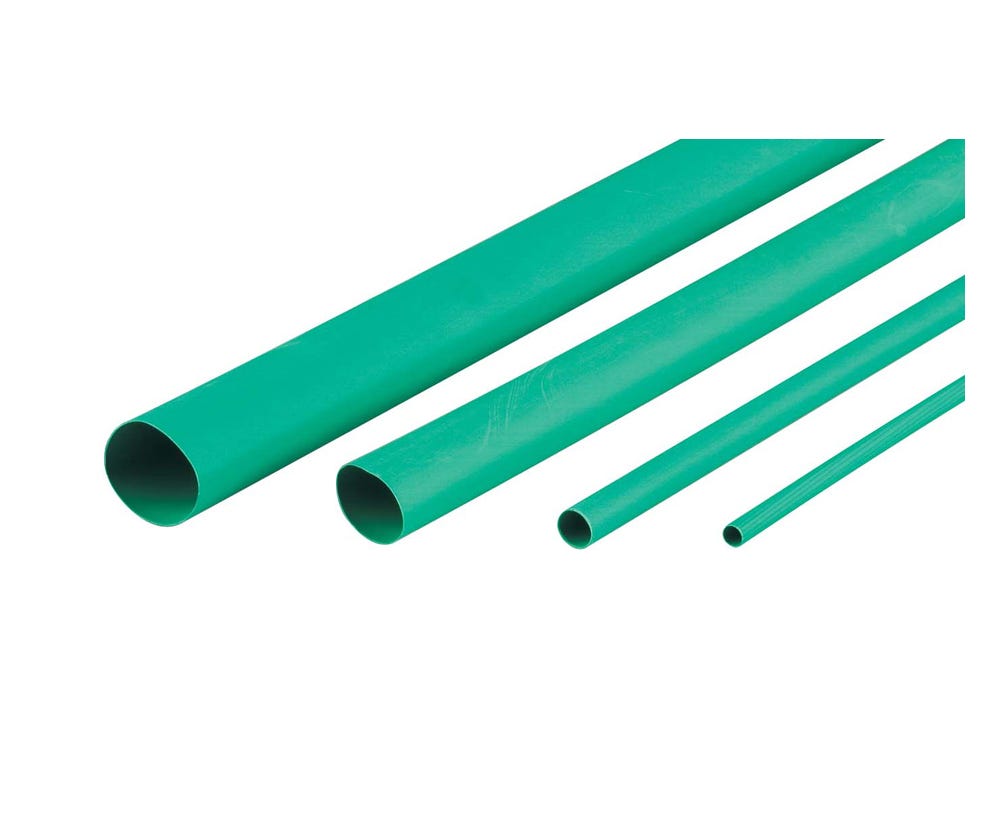

Cabac HEATSHRINK THIN WALL 6.4MM GREEN 1.2M XLP7G/4FT

Description

Reliable Electrical Protection with CABAC XLP Heat Shrink Tubing

The CABAC XLP7G/4FT Green Thin Wall Heat Shrink Tube provides dependable insulation, protection, and conductor identification for professional electrical applications. Manufactured from flame retardant polyolefin, this 6.4mm pre-shrink tubing delivers a secure fit around cables, terminals, and connections after heat application.

Using Electron Beam Cross Linked technology, the CABAC XLP range offers excellent mechanical strength and long-term durability. When heated above 105°C, the tubing shrinks to approximately 50% of its original diameter, creating a tight protective layer around electrical components. This makes it ideal for electricians requiring a flexible and reliable solution for cable repairs, insulation, and organisation.

Durable Design for Electrical and Environmental Protection

Designed for demanding trade environments, CABAC green heat shrink tubing provides resistance against common fluids, solvents, abrasion, and UV exposure. The flame retardant material helps improve safety in electrical installations, while its flexible construction allows easy handling during installation.

With a continuous operating temperature range of -75°C to +135°C and a 600V voltage rating, this thin wall heat shrink tubing is suitable for a wide range of electrical and associated industry applications. The green colour also assists with cable identification and organisation, helping tradespeople maintain neat and professional installations.

Trade-Ready Heat Shrink Solution from CABAC

The CABAC XLP7G/4FT heat shrink tube is manufactured to meet recognised industry standards, including UL224 VW1 and ASTM D2671 compliance. Its compact 1.2m length makes it convenient for workshops, service vehicles, and onsite electrical work.

Compatible with CABAC heat guns, including HG2232 and HG2233 models, this heat shrink tubing provides fast and efficient installation for electricians, contractors, and maintenance teams. Available in a broad range of colours and sizes, the XLP series offers a complete solution for professional cable protection and identification needs.

Key Specs

• Brand: CABAC
• Product Series: XLP Thin Wall Heat Shrink
• Colour: Green
• Wall Type: Thin wall
• Pre-Shrink Diameter: 6.4mm
• Recovered Diameter: 3.2mm
• Length: 1.2m
• Recovered Wall Thickness: 0.56mm
• Material: Electron Beam Cross Linked Polyolefin
• Voltage Rating: 600V
• Continuous Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% maximum
• Flame Retardant: Yes
• UV Resistant: Yes
• Glue Lined: No
• Standards Compliance: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors completing residential, commercial, and industrial installations
• Maintenance teams performing electrical repairs and servicing
• Cable identification and conductor colour coding applications
• Protecting terminals, joints, and cable connections from environmental exposure
• Workshop and onsite electrical projects requiring durable heat shrink tubing
• Trade professionals needing compliant electrical accessories from trusted brands
