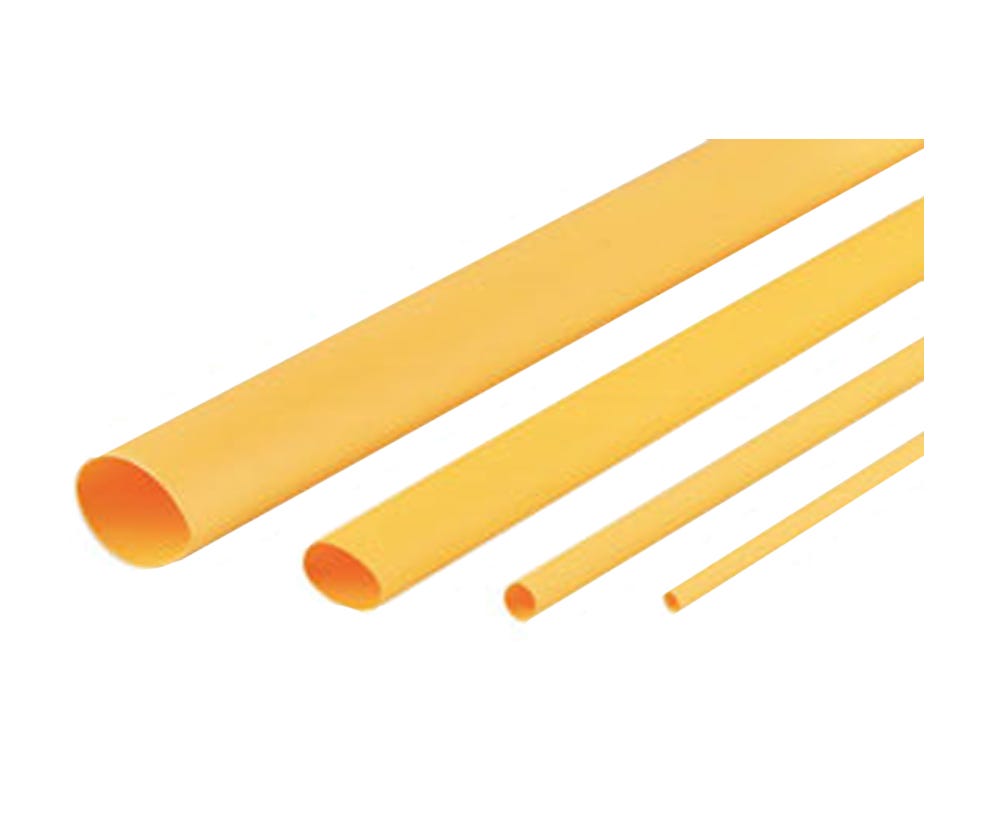

Cabac HEATSHRINK THIN WALL 50.8MM YELLOW XLP51Y x 25

Description

Reliable Electrical Insulation and Protection

The CABAC XLP51Y Thin Wall Heat Shrink Tubing provides a practical solution for insulating, protecting, and colour coding electrical conductors across residential, commercial, and industrial applications. Manufactured from flame-retardant polyolefin, this yellow heat shrink sleeve delivers reliable electrical and mechanical protection while maintaining flexibility for easy installation.

Using advanced electron beam cross-linking technology, the XLP series heat shrink tubing delivers consistent recovery performance when heated. The tubing shrinks down to approximately 50% of its original diameter, creating a secure fit around cables, terminals, and components for improved insulation and protection.

Durable Performance for Trade Applications

Designed for demanding electrical environments, the CABAC XLP51Y heat shrink tube provides resistance against common fluids, solvents, abrasion, and UV exposure. Its thin wall construction allows for efficient installation where space is limited while maintaining dependable protection.

With a continuous operating temperature range of -75°C to +135°C and a 600V voltage rating, this heat shrink tubing is suitable for a wide range of electrical applications. The yellow colour also supports easy conductor identification and cable management during installation and maintenance work.

Certified Quality for Professional Installations

CABAC XLP heat shrink tubing is manufactured to meet recognised industry requirements, including UL224 VW1 and ASTM D2671 standards. The tubing is designed for electricians and contractors who require dependable materials that support safe, compliant electrical installations.

Available in multiple sizes and colours, the XLP range provides a versatile option for professional electrical projects. Pair with a CABAC heat gun for efficient shrinking and a secure finished installation.

Key Specs

• Brand: CABAC
• Model: XLP51Y
• Colour: Yellow
• Material: Electron beam cross-linked polyolefin
• Pre-shrink diameter: 50.8mm
• After-shrink diameter: 25.4mm
• Recovered wall thickness: 1.1mm
• Length: 25m roll
• Wall type: Thin wall
• Glue lined: No
• Continuous operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Breakdown voltage: 25 kV/mm wall thickness
• Elongation at break: 400%
• Water absorption: 0.15% max
• Standards compliance: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable heat shrink insulation
• Electrical contractors working on commercial and industrial installations
• Cable identification and colour coding applications
• Protecting conductors from abrasion, moisture, and environmental exposure
• Maintenance teams performing electrical repairs and upgrades
• Professional switchboard, wiring, and cable management projects
