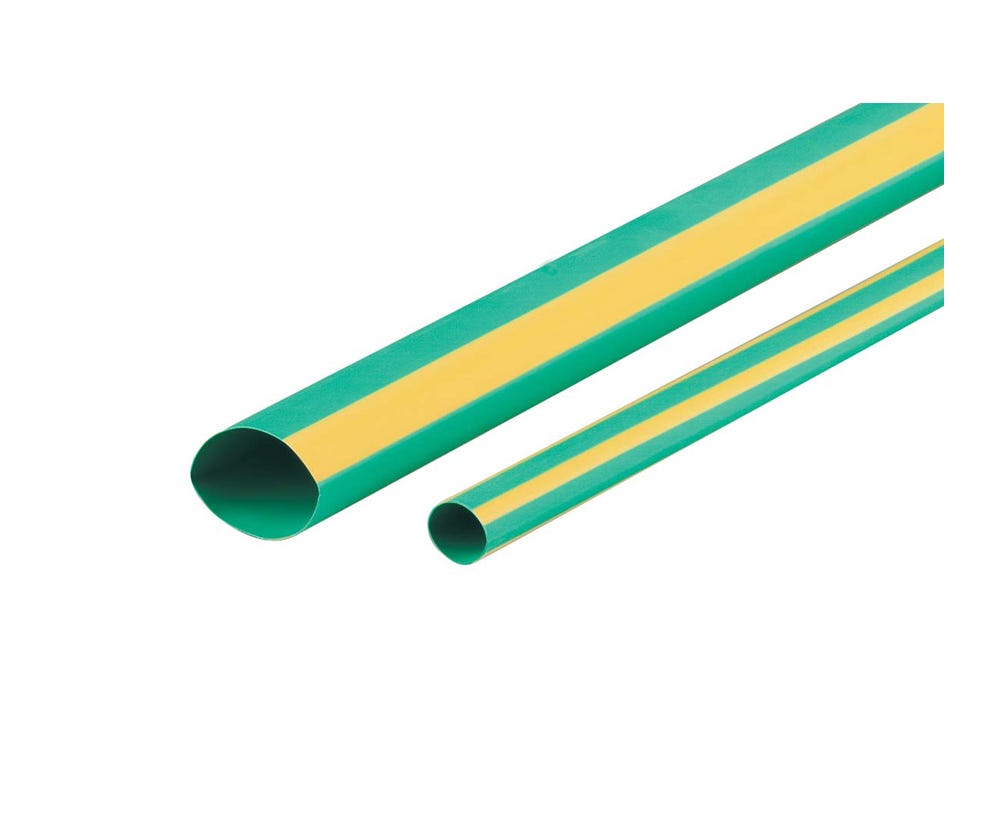

Cabac HEATSHRINK THIN WALL 50.8MM YELGRN XLP51YG x 25

Description

Durable Electrical Insulation and Cable Protection

The CABAC XLP51YG Thin Wall Heat Shrink Tubing is designed to provide reliable insulation, protection, and colour identification for electrical conductors in a wide range of applications. Manufactured from electron beam cross-linked polyolefin, this yellow/green heat shrink tubing delivers excellent mechanical strength while maintaining flexibility for easier installation.

With a pre-shrink diameter of 50.8mm and a recovered diameter of 25.4mm, the tubing shrinks tightly around cables when heated, creating a secure protective layer. It is ideal for electricians requiring dependable cable insulation and conductor identification in residential, commercial, and industrial electrical projects.

The thin wall construction allows for easy installation while providing effective protection against abrasion, impact, and environmental exposure. For best results, CABAC heat guns are recommended to achieve consistent shrinking performance.

Flame Retardant and Environmentally Resistant Performance

Built for demanding electrical environments, CABAC XLP heat shrink tubing offers excellent resistance against common fluids, solvents, and UV exposure. Its flame retardant polyolefin material helps improve installation safety while maintaining long-term durability.

The tubing operates across a wide temperature range from -75°C to +135°C and is rated for electrical applications up to 600V. Its high tensile strength and strong elongation properties allow it to withstand installation stress while maintaining reliable insulation performance.

Certified to UL224 VW1 and compliant with ASTM D2671 standards, this heat shrink tubing provides electricians and contractors with confidence when selecting a compliant cable protection solution.

Trade-Ready Solution for Professional Electrical Installations

CABAC XLP51YG yellow/green heat shrink tubing is supplied as a 25m roll, making it suitable for professional workshops, maintenance teams, and electrical contractors handling multiple installations. The yellow/green colour helps with conductor identification, improving organisation and reducing installation errors.

Available in a wide range of sizes and colours, the XLP series provides a versatile solution for cable management, insulation repairs, and electrical protection requirements.

Key Specs

• Brand: CABAC
• Series: XLP Thin Wall Heat Shrink Tubing
• Colour: Yellow/Green
• Pre-shrink diameter: 50.8mm
• After-shrink diameter: 25.4mm
• Recovered wall thickness: 1.1mm
• Length: 25m roll
• Material: Electron Beam Cross Linked Polyolefin
• Flame retardant: Yes
• Operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Breakdown voltage: 25 kV/mm wall thickness
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Water absorption: 0.15% max
• Longitudinal shrinkage: <5%
• Glue lined: No
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors working on residential, commercial, and industrial projects
• Maintenance teams needing durable conductor protection solutions
• Cable identification and colour coding applications
• Electrical repairs, installations, and upgrades
• Projects requiring UV-resistant and flame retardant heat shrink tubing
