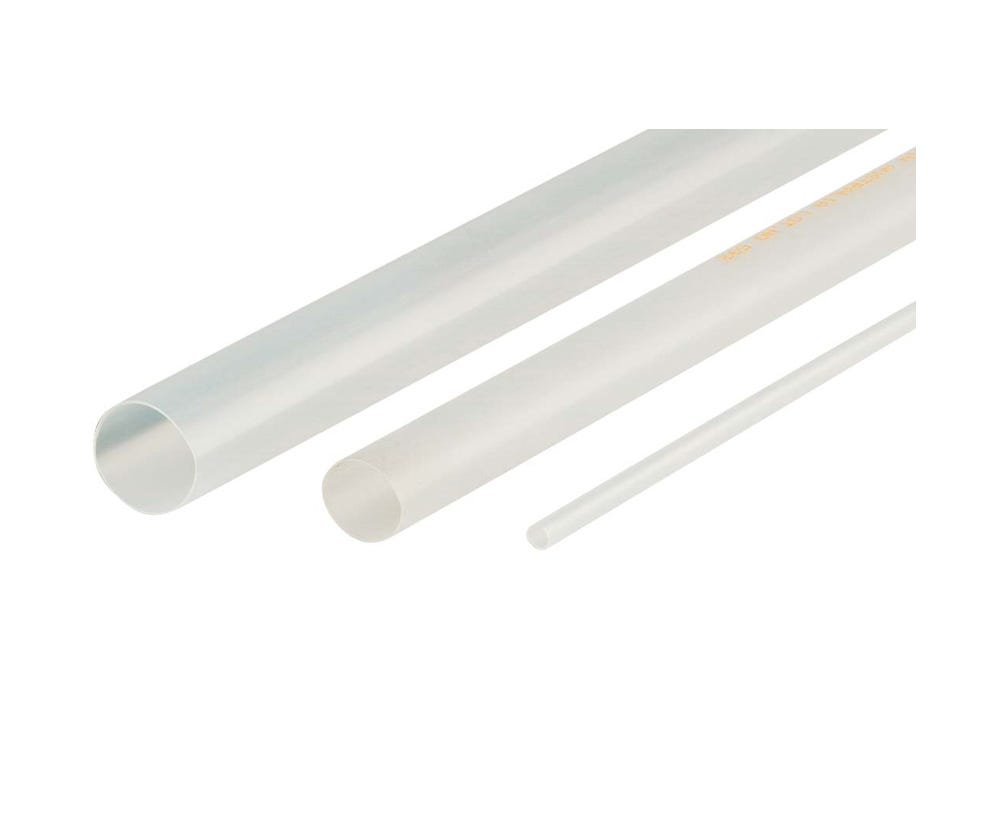

Cabac HEATSHRINK THIN WALL 50.8MM WHITE XLP51WH x 25

Description

Reliable Electrical Insulation and Protection

The CABAC XLP51WH Thin Wall Heat Shrink Tubing provides dependable insulation and mechanical protection for electrical conductors across residential, commercial, and industrial applications. Designed from flame-retardant polyolefin, this white heat shrink tubing helps protect cables from abrasion, impact, and environmental exposure while allowing easy conductor identification and colour coding.

Manufactured using advanced electron beam cross-linking technology, the tubing shrinks to approximately 50% of its original diameter when heated, creating a secure and professional finish around cables and connections. With a pre-shrink diameter of 50.8mm and recovered diameter of 25.4mm, it is suitable for larger cable insulation and protection requirements.

Durable Polyolefin Construction for Harsh Conditions

Built for demanding electrical environments, the CABAC XLP range offers excellent resistance against common fluids, solvents, moisture, and abrasion. The UV-resistant formulation helps maintain performance when exposed to outdoor conditions, making it suitable for various electrical installations where long-term durability is required.

The tubing operates continuously between -75°C and +135°C and features a 600V voltage rating, providing reliable protection for professional electrical work. Its thin wall design allows flexibility while maintaining strong insulation properties, helping electricians achieve clean and efficient installations.

Trade-Ready Heat Shrink Solution

CABAC white heat shrink tubing is UL certified and complies with international standards including UL224 VW1 and ASTM D2671. Supplied as a 25m roll, it provides convenient material availability for electrical contractors, maintenance teams, and workshops handling multiple projects.

Available through iSupply Electrical, this CABAC heat shrink tubing gives Australian trades access to quality electrical accessories with competitive pricing, reliable stock availability, and fast delivery options. Whether used for cable repairs, conductor protection, or electrical identification, the XLP51WH delivers dependable performance for professional applications.

Key Specs

• Brand: CABAC
• Model: XLP51WH
• Colour: White
• Material: Electron beam cross-linked polyolefin
• Type: Thin wall heat shrink tubing
• Pre-shrink diameter: 50.8mm
• After-shrink diameter: 25.4mm
• Recovered wall thickness: 1.1mm
• Length: 25m roll
• Operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Water absorption: 0.15% max
• Standards: UL224 VW1, ASTM D2671
• Glue lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors working on residential, commercial, and industrial projects
• Maintenance teams performing cable repairs and upgrades
• Cable identification and colour coding applications
• Protecting electrical connections from abrasion and environmental exposure
• Workshops requiring bulk heat shrink tubing supplies
