Cabac HEATSHRINK THIN WALL 50.8MM WHITE 1.2M XLP51WH/4FT

Description

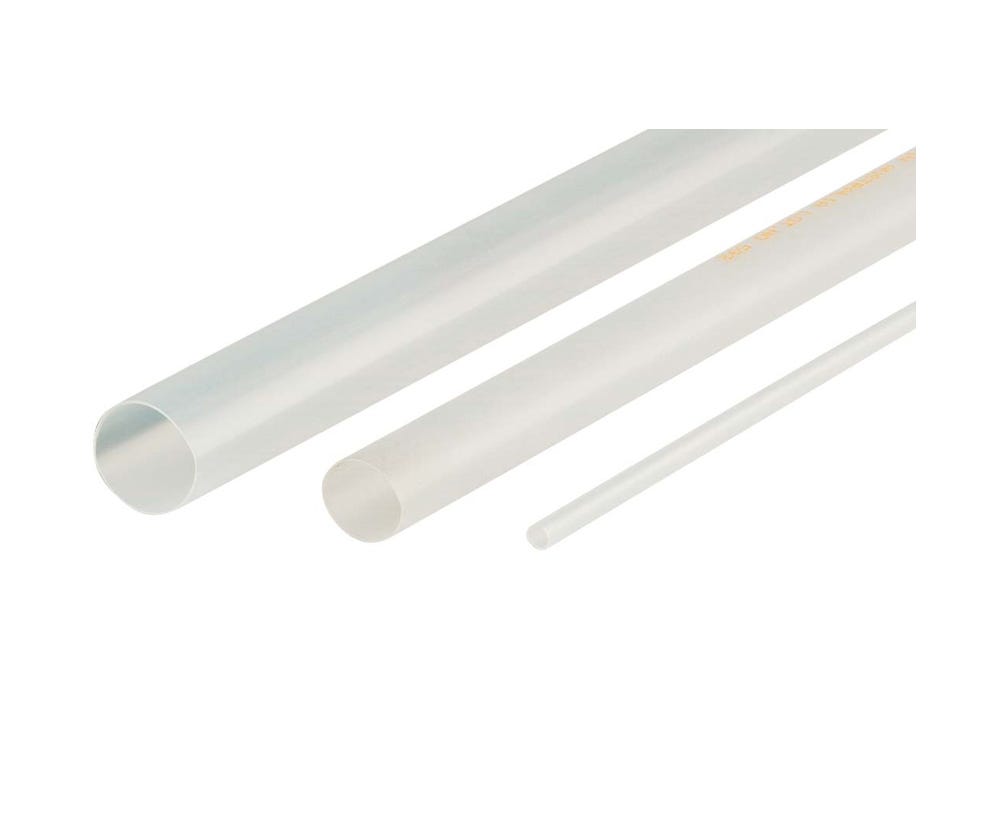

CABAC XLP51WH Thin Wall Heat Shrink Tubing for Reliable Electrical Protection

The CABAC XLP51WH white thin wall heat shrink tubing provides electricians and contractors with a dependable solution for insulating, protecting, and colour coding electrical conductors. Manufactured from flame retardant polyolefin using advanced Electron Beam Cross Linked technology, this heat shrink tubing delivers excellent electrical insulation and mechanical protection across a wide range of applications.

With a pre-shrink diameter of 50.8mm and a recovered diameter of approximately 25.4mm, the tubing shrinks tightly around cables and conductors when heat is applied, creating a secure and professional finish. The thin wall design allows for flexibility while maintaining strong protection against abrasion, impact, and environmental exposure.

Durable Polyolefin Construction for Electrical Applications

Designed for demanding electrical environments, CABAC white heat shrink tubing offers resistance against common fluids, solvents, and UV exposure. Its flame retardant properties help improve installation safety, while the robust polyolefin material provides long-lasting performance in residential, commercial, and industrial applications.

The tubing operates across a wide temperature range from -75°C to +135°C and is rated up to 600V, making it suitable for various electrical insulation and protection requirements. It is also compliant with recognised standards including UL224 VW1 and ASTM D2671, providing confidence for professional electrical installations.

Trade-Ready Heat Shrink Solution for Professional Installations

CABAC XLP heat shrink tubing is ideal for electricians requiring a reliable method for cable insulation, conductor protection, and wire identification. The flexible tubing can be quickly installed using a suitable heat gun, such as CABAC heat gun models HG2232 or HG2233, reducing installation time while achieving a neat and secure result.

Available in multiple colours and sizes, the CABAC XLP range supports different electrical requirements across maintenance work, switchboard assembly, cable repairs, and general electrical installations.

Key Specs

• Brand: CABAC
• Model: XLP51WH/4FT
• Colour: White
• Material: Electron Beam Cross Linked Polyolefin
• Wall Type: Thin Wall
• Pre-Shrink Diameter: 50.8mm
• After-Shrink Diameter: 25.4mm
• Length: 1.2m (4ft)
• Recovered Wall Thickness: 1.1mm
• Shrink Ratio: Approximately 2:1
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: Above 105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% maximum
• Glue Lined: No
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors completing residential and commercial installations
• Switchboard builders and panel manufacturers
• Cable repairs and maintenance applications
• Conductor protection in industrial environments
• Electrical colour coding and identification tasks
• Applications requiring abrasion, solvent, and UV resistance
