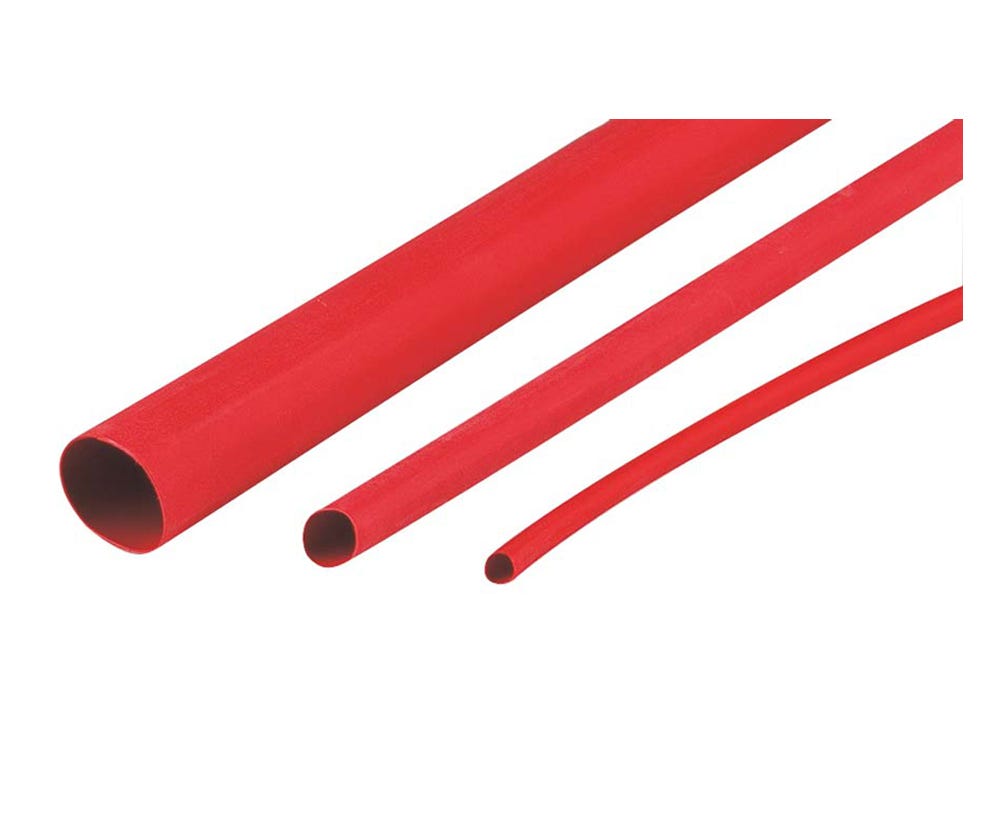

Cabac HEATSHRINK THIN WALL 50.8MM RED 1.2M XLP51RD/4FT

Description

CABAC XLP51RD/4FT Red Thin Wall Heat Shrink Tubing for Reliable Cable Protection

The CABAC XLP51RD/4FT Heat Shrink Tubing is a professional-grade thin wall solution designed to insulate, protect, and colour code electrical conductors across residential, commercial, and industrial applications. Featuring a 50.8mm pre-shrink diameter and 1.2m length, this red heat shrink tubing provides a secure protective layer for larger cables, helping electricians improve installation reliability and cable identification.

Manufactured from electron beam cross-linked polyolefin, the CABAC XLP range delivers excellent mechanical strength while maintaining flexibility for easier installation. When heated above 105°C, the tubing contracts to approximately 50% of its original diameter, creating a tight-fitting seal around cables, joints, and components.

Durable Electrical Insulation and Environmental Protection

The CABAC thin wall heat shrink range is engineered to provide dependable electrical and mechanical protection in demanding trade environments. The flame retardant polyolefin construction helps protect against heat exposure, while resistance to common fluids, solvents, abrasion, and UV exposure makes it suitable for long-term installations.

With a continuous operating temperature range of -75°C to +135°C and a voltage rating of 600V, this heat shrink tubing is suitable for a wide range of electrical applications requiring dependable insulation performance.

Trade-Ready Heat Shrink Solution for Professional Installations

Designed for electricians and contractors, the CABAC XLP51RD/4FT makes cable management and identification faster and more efficient. The red colour provides clear visual identification, while its flexible thin wall construction allows easy installation using a suitable heat gun.

Available in multiple colours and sizes, the CABAC XLP series provides a versatile solution for electrical repairs, maintenance work, manufacturing, and installation projects.

Key Specs

• Brand: CABAC
• Model: XLP51RD/4FT
• Colour: Red
• Material: Electron beam cross-linked polyolefin
• Wall Type: Thin wall
• Pre-shrink Diameter: 50.8mm
• After-shrink Diameter: 25.4mm
• Recovered Wall Thickness: 1.1mm
• Length: 1.2m
• Voltage Rating: 600V
• Continuous Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Flame Retardant: Yes
• Glue Lined: No
• Standards Compliance: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors working on commercial and industrial installations
• Cable identification and colour coding applications
• Protecting cable joints, connections, and terminals
• Maintenance and repair projects requiring durable insulation protection
• Applications exposed to moisture, solvents, abrasion, and environmental conditions
