Cabac HEATSHRINK THIN WALL 50.8MM BLACK 1.2M XLP51BK/4FT

Description

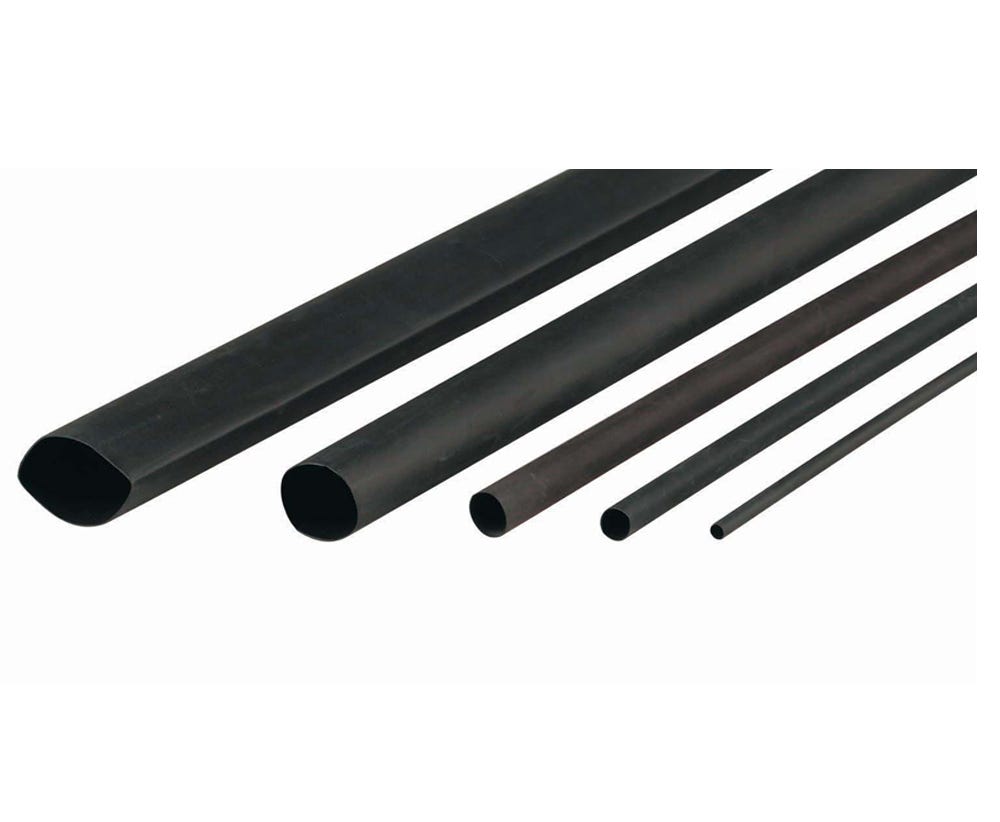

CABAC XLP51BK/4FT Thin Wall Heat Shrink Tubing for Reliable Cable Protection

The CABAC XLP51BK/4FT Heatshrink Thin Wall Tubing is a professional-grade electrical insulation solution designed to protect, seal, and identify larger conductors and cable assemblies. Manufactured from electron beam cross-linked polyolefin, this black thin wall heat shrink tubing delivers excellent mechanical strength, flexibility, and resistance against harsh environmental conditions.

With a pre-shrink diameter of 50.8mm and a recovered diameter of 25.4mm, this heat shrink tubing provides a secure fit around electrical connections, helping prevent damage caused by abrasion, moisture, impact, and everyday exposure. Its flame retardant construction makes it suitable for a wide range of electrical and industrial applications where dependable insulation protection is required.

Durable Electrical Insulation for Trade and Industrial Applications

CABAC XLP heat shrink tubing is engineered to provide long-term protection for electrical components while maintaining flexibility during installation. When heat is applied, the tubing contracts to approximately 50% of its original diameter, creating a tight protective layer around cables, terminals, and joints.

The polyolefin material offers resistance against common fluids, solvents, and UV radiation, helping maintain performance in demanding environments. With a continuous operating temperature range from -75°C to +135°C and a 600V voltage rating, this tubing is suitable for professional electrical installations requiring reliable insulation.

Certified Heat Shrink Solution Built for Electricians

Designed for electrical trades, the CABAC XLP range meets recognised industry requirements, including UL224 VW1 and ASTM D2671 standards. Its thin wall design allows for efficient installation while providing excellent electrical and mechanical protection.

Available in a wide range of sizes and colours, CABAC heat shrink tubing supports cable identification, repair work, and protective insulation across residential, commercial, and industrial projects. Electricians can rely on CABAC’s trusted quality to complete installations efficiently and confidently.

Key Specs

• Brand: CABAC
• Model: XLP51BK/4FT
• Colour: Black
• Material: Electron beam cross-linked polyolefin
• Wall Type: Thin wall
• Pre-shrink Diameter: 50.8mm
• After-shrink Diameter: 25.4mm
• Recovered Wall Thickness: 1.1mm
• Length: 1.2m
• Voltage Rating: 600V
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: Above 105°C
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% maximum
• Longitudinal Shrinkage: Less than 5%
• Compliance Standards: UL224 VW1, ASTM D2671
• Glue Lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors working on residential, commercial, and industrial projects
• Switchboard assembly and electrical enclosure applications
• Cable repairs, protection, and identification tasks
• Protecting conductors from abrasion, impact, and environmental exposure
• Maintenance teams requiring durable electrical protection solutions
• Installations requiring compliant and trade-quality heat shrink tubing
